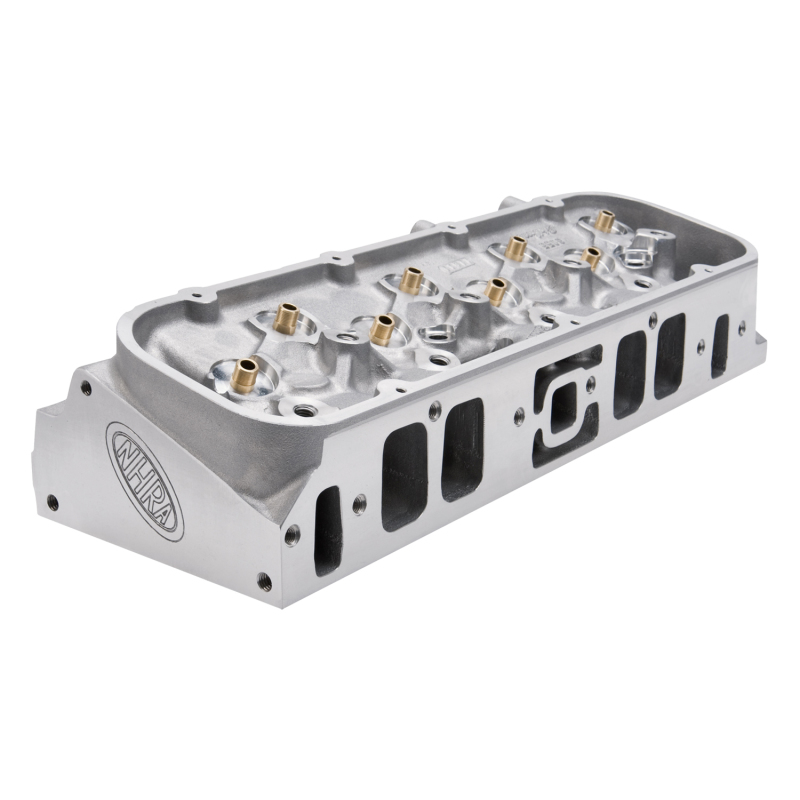

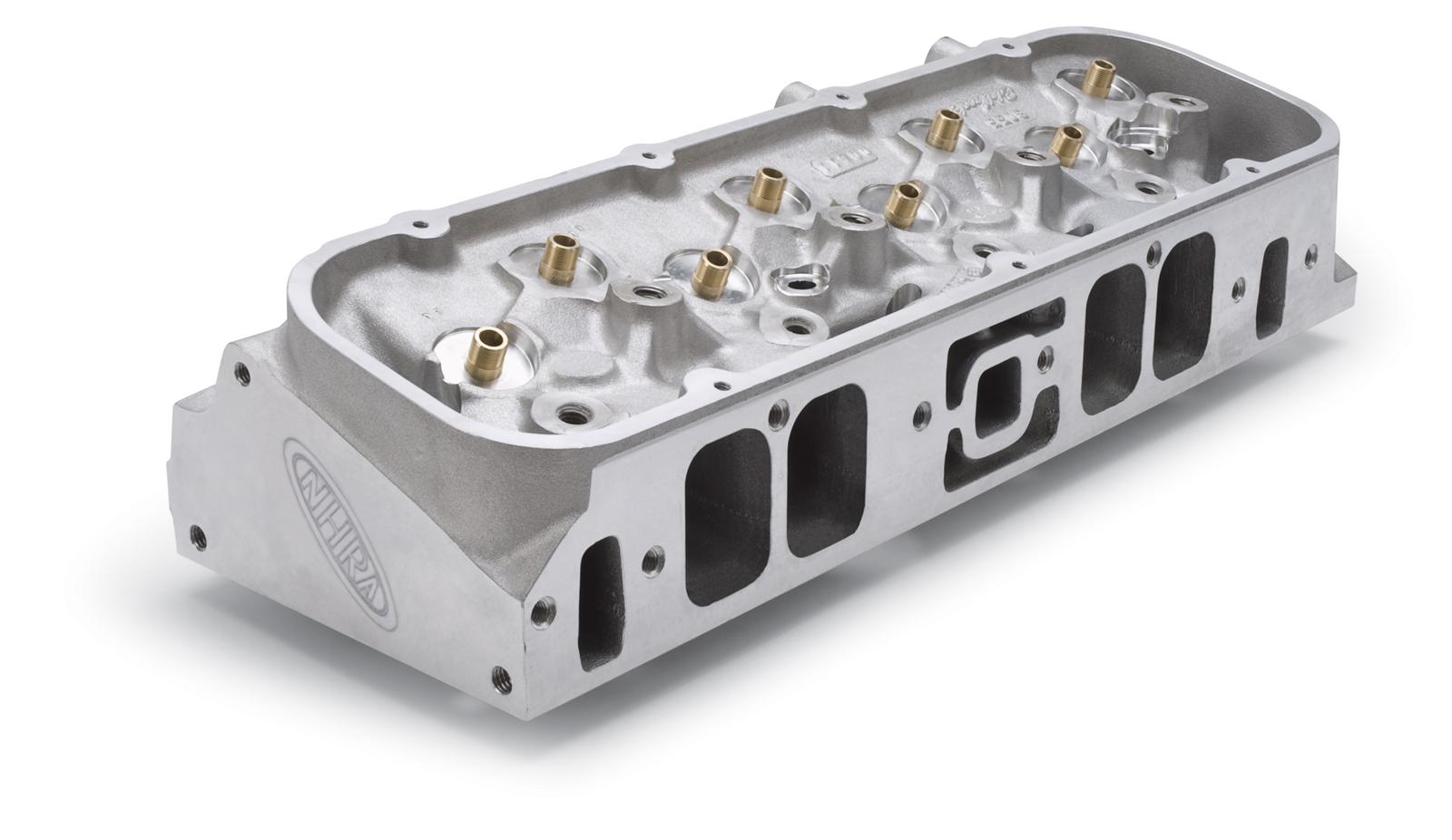

Edelbrock Cylinder Head Perf RPM BBC Rect Port NHRA Legal Bare
Edelbrock Cylinder Head Perf RPM BBC Rect Port NHRA Legal Bare
A$2,148.58
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The Edelbrock #60547 Performer RPM Bare NHRA Stock/Super Stock Rectangle Port cylinder head is designed for Big-Block Chevy applications. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Product Overview
The Edelbrock #60547 Performer RPM Bare NHRA Stock/Super Stock Rectangle Port cylinder head is designed for Big-Block Chevy applications. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Features and Benefits
- Smaller-Than-Stock 11/32 in. Valve Stems Promote Excellent Flow
Product Details
| CNC Ported: | No |
|---|---|
| Combustion Chamber Volume: | 118 |
| Construction Type: | Bare |
| Cylinder Head Type: | Rectangular Port |
| Deck Thickness: | 0.5625 |
| Description: | Performer Series RPM NHRA Stock/Super Stock Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Chevy Big Block (396-502) |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 110 |
| Family: | Performer RPM |
| Finish: | Satin |
| Flange Type: | Rectangle Intake |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Head Casting Number: | N/A |
| Intake Runner Volume: | 315 |
| Material: | Aluminum |
| Part Number: | ede60547 |
| Preparation: | Requires Professional Preparation (Bare) |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | No |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Performer RPM |
| Type: | Bare |
| Usage: | Racing |
| Valve Angle: | 26 |
| Valve Included: | No |
| Valve Springs Included: | No |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Part Type
Engine Cylinder Head
Features
- Smaller-Than-Stock 11/32 in. Valve Stems Promote Excellent Flow
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 60547
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Performer RPM Bare NHRA Stock/Super Stock Cylinder Heads
- Product Attributes - UPC
- 085347605477
- Product Attributes - Combustion Chamber Volume (cc)
- 118
- Product Attributes - Intake Runner Volume (cc)
- 315cc/300cc
- Product Attributes - Exhaust Runner Volume (cc)
- 110cc
- Product Attributes - Cylinder Head Style
- Bare
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 2.190 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Combustion Chamber Style
- Semi-open
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Round
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Intake Valves Included
- No
- Product Attributes - Exhaust Valves Included
- No
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.880 in.
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 26
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- No
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- NHRA Stock / Super Stock legal, High-velocity 315cc long/300cc short intake ports. lf using a domed piston check clearance before final assembly, spark plug location has been moved .150 closer to bore center, with a semi-open chamber design.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede60547 |
| SFX Item ID | 4236719 |
| Supplier Item Code | 4236719 |
| Manufacturer SKU | 60547 |
| Manufacturer UPC | 85347605477 |
| Alternative References | a356;, v8;, EDB60547, EDL-60547 |
Brochures
Compatibility
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
