Edelbrock Single Perf 5 8/5 8 SBF 1 90 Head Comp
Edelbrock Single Perf 5 8/5 8 SBF 1 90 Head Comp
A$2,715.72
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

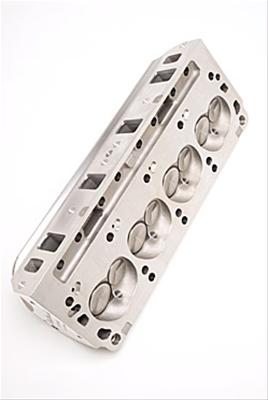

The Edelbrock #60379 Performer cylinder head is designed for use with 1982-95 50.L & 5.8L V8 applications. These Edelbrock Performer Series cylinder head is 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Product Overview
The Edelbrock #60379 Performer cylinder head is designed for use with 1982-95 50.L & 5.8L V8 applications. These Edelbrock Performer Series cylinder head is 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Features and Benefits
- Accepts V8 Valvetrains
Product Details
| 9040: | D-215-94 |
|---|---|
| CNC Ported: | No |
| Camshaft Type: | Hydraulic Roller |
| Combustion Chamber Volume: | 60 |
| Construction Type: | Complete |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.625 |
| Description: | Performer Cylinder Head |
| EGR Port: | Yes |
| Emission: | 50 State Legal |
| Engine Make/Size: | Ford 5.8L/351W |
| Exhaust Port Location: | Standard |
| Exhaust Runner Volume: | 60 |
| Exhaust Valve Diameter: | 1.60 |
| Family: | Performer |
| Finish: | Cast Aluminum |
| Grade Type: | Performance |
| Guide Material: | Manganese Bronze |
| Guide Plates Included: | No |
| Horsepower: | 300-400 |
| Intake Runner Volume: | 170 |
| Intake Valve Diameter: | 1.90 |
| Material: | Aluminum |
| Part Number: | ede60379 |
| Preparation: | Bolt On (Not Required) |
| Push Rod Diameter: | (Suggested) 0.3125 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | Yes |
| Seat Angle: | Exhaust 45 deg/Intake 45 |
| Seat Material: | Ductile Iron |
| Series: | Performer |
| Type: | Complete |
| Usage: | Street/Performance |
| Valve Angle: | 20 |
| Valve Included: | Yes |
| Valve Spring Diameter: | 1.46 |
| Valve Spring Maximum Lift: | 0.575 |
| Valve Springs Included: | Yes |
| Valve Stem Diameter: | 0.3438 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Ford:Small-Block Windsor:302 (5.0L)/351 (5.8L)
Part Type
Engine Cylinder Head
Features
- Accepts V8 Valvetrains
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 60379
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Performer Cylinder Heads
- Product Attributes - UPC
- 085347603794
- Product Attributes - Combustion Chamber Volume (cc)
- 60
- Product Attributes - Intake Runner Volume (cc)
- 170cc
- Product Attributes - Exhaust Runner Volume (cc)
- 60cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Hydraulic roller
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Intake Valve Diameter (in.)
- 1.900 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Square
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.600 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.575 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.460 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 20
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Powdered metal
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Heads will accept 1982-95 5.0L V8 pedestal mount rocker arms and valvetrain. Due the larger valve diameters, machining of the valve reliefs (eyebrows) may be required with some pistons. 1986 5.0L need pistons notched for clearance. Will not accept rail rockers. 5.0L requires head bolt bushings EDL-9680 and either head bolt kit EDL-8552 (7/16") or stock head bolts.
- Product Attributes - CARB EO Number(s)
- D-215-94
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede60379 |
| SFX Item ID | 4236529 |
| Supplier Item Code | 4236529 |
| Manufacturer SKU | 60379 |
| Manufacturer UPC | 85347603794 |
| Alternative References | 5.0l;, 5.8l;, v8;, EDB60379, EDL-60379 |
Brochures
Compatibility
Ford:Small-Block Windsor:302 (5.0L)/351 (5.8L)
