Edelbrock Valve Springs E-Street Heads Set of 16

SKU: EDE5824

Valve Springs

EDE Valve Springs...

Edelbrock

Edelbrock Valve Springs E-Street Heads Set of 16

SKU: EDE5824

Valve Springs

EDE Valve Springs...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

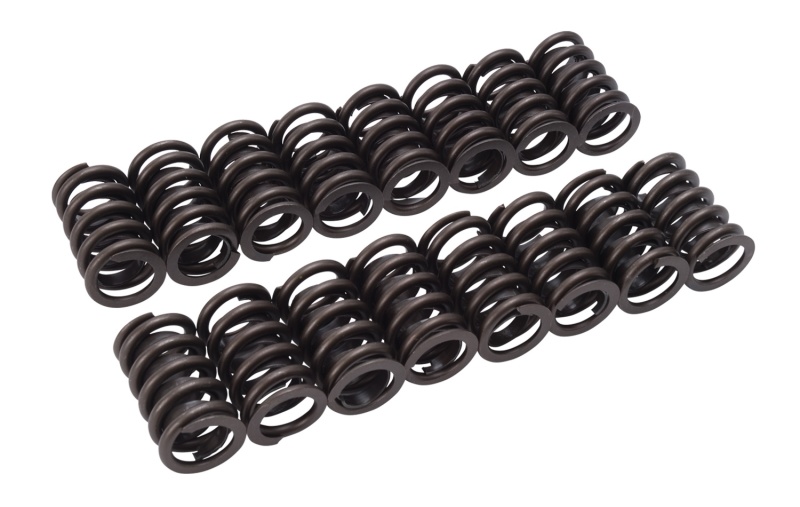

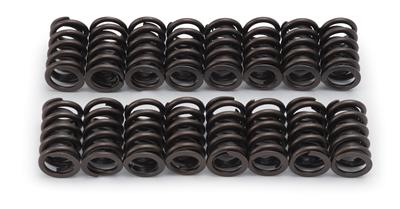

Edelbrock part #5824 Sure Seat Valve Spring Kit are replacement valve springs for early E-Street Cylinder heads with 1.250" dia. Valve springs. Made of highest quality spring wire and precision wound to close tolerances. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16.Valve Spring Specifications:Type: Non-Rotator Seat Pressure: 90 lbs.Installed Height: 1.750"Outside diameter: 1.250"Open Pressure: 325 lbs. @ 0.550"Coil Bind: 1.150"

Product Overview

Edelbrock part #5824 Sure Seat Valve Spring Kit are replacement valve springs for early E-Street Cylinder heads with 1.250" dia. Valve springs. Made of highest quality spring wire and precision wound to close tolerances. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 90 lbs. Installed Height: 1.750" Outside diameter: 1.250" Open Pressure: 325 lbs. @ 0.550" Coil Bind: 1.150"

Features and Benefits

Springs Precision Wound To Close Tolerances

Product Details

Camshaft Type:	Flat Tappet
Coil Bind Height (in.):	1.15
Coil Bind Height:	1.15
Description:	Sure Seat Valve Spring Kit
Inside Diameter:	0.88
Installed Height (in.):	1.77
Installed Height:	1.750
Installed Pressure (lbs.):	125
Installed Pressure:	125
Open Height (in.):	1.77
Open Height:	1.770 in.
Open Pressure (lbs.):	300
Open Pressure:	325
Outside Diameter:	1.250
Part Number:	ede5824
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Spring Open Height:	1.200
Spring Type:	Standard
Tubing Length:	300
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Part Type

Engine Valve Spring Kit

Data: v4.2 - Upd: 2026-10-13 23:11:33

Features

Springs Precision Wound To Close Tolerances

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 5824
Product Attributes - Part Type: Valve Springs
Product Attributes - Product Line: Edelbrock Sure Seat Valve Springs
Product Attributes - UPC: 085347058242
Product Attributes - Valve Spring Style: Standard
Product Attributes - Number of Springs Per Valve: Single
Product Attributes - Retainers Included: No
Product Attributes - Outside Diameter of Outer Spring (in.): 1.250 in.
Product Attributes - Coil Bind Height (in.): 1.150 in.
Product Attributes - Damper Spring Included: No
Product Attributes - Spring Rate (lbs./in.): 364 lbs./in.
Product Attributes - Inside Diameter of Outer Spring (in.): 0.880 in.
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Valve Springs Coated: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a set of 16.
Product Attributes - Notes: Non-rotator valve spring.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede5824
SFX Item ID	4237302
Supplier Item Code	4237302
Manufacturer SKU	5824
Manufacturer UPC	85347058242
Alternative References	EDB5824, EDL-5824
