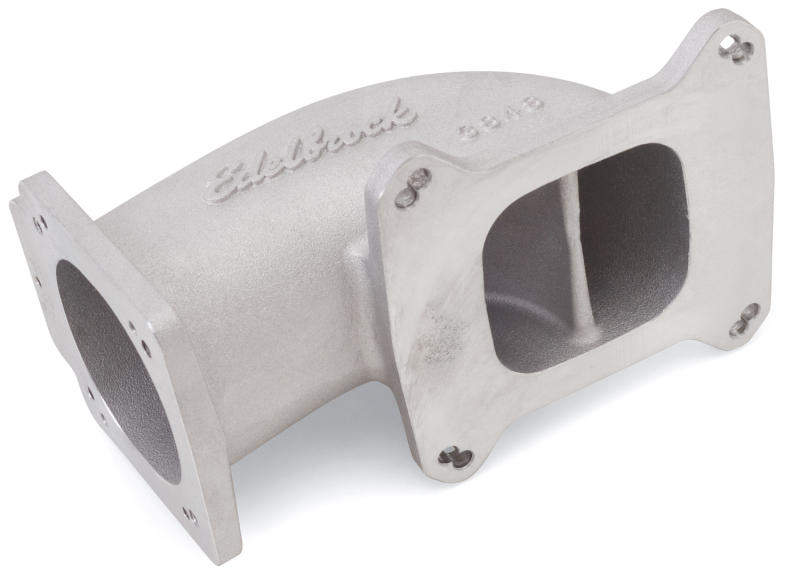

Edelbrock Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange As-Cast Finish
Edelbrock Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange As-Cast Finish
A$491.85
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
This Edelbrock Low Profile elbow was designed for limited hood clearance applications. This adaptor can be used with our 29085 Victor Jr LS1 but cowl trimming and an SS hood are required. The 3848 Elbow can be used in other square bore (4150 style) manifold applications as well. It can be mounted forward, backward, or sideways on any of our Victor EFI Square bore (4150) style manifolds. Because of its low profile a one inch spacer is required for small or Big Block Chevy forward mount configurations to clear the water neck. It can be used with an LS1 80 mm (must use PN 2737 adaptor) or Edelbrock PN 3869 90mm Universal, or Ford style 75mm throttle bodies. The 3848 adaptor features: Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies, adapts to standard (4150 style) square bore manifolds, Fits manifold either in a forwards, backward, or sideways configuration, The throttle bore center sits 7.00" forward and only 2.00" up from the manifold 4150 flange, The throttle body points downward on a 5 Deg angle. For ultra-low applications out PN 3847 elbow sits 9.00" forward and only .56" above the flange, with a 12 Deg downward throttle body angle.
Product Overview
This Edelbrock Low Profile elbow was designed for limited hood clearance applications. This adaptor can be used with our 29085 Victor Jr LS1 but cowl trimming and an SS hood are required. The 3848 Elbow can be used in other square bore (4150 style) manifold applications as well. It can be mounted forward, backward, or sideways on any of our Victor EFI Square bore (4150) style manifolds. Because of its low profile a one inch spacer is required for small or Big Block Chevy forward mount configurations to clear the water neck. It can be used with an LS1 80 mm (must use PN 2737 adaptor) or Edelbrock PN 3869 90mm Universal, or Ford style 75mm throttle bodies. The 3848 adaptor features: Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies, adapts to standard (4150 style) square bore manifolds, Fits manifold either in a forwards, backward, or sideways configuration, The throttle bore center sits 7.00" forward and only 2.00" up from the manifold 4150 flange, The throttle body points downward on a 5 Deg angle. For ultra-low applications out PN 3847 elbow sits 9.00" forward and only .56" above the flange, with a 12 Deg downward throttle body angle.
Features and Benefits
- As-Cast Finish
Product Details
| Adapter Included: | No |
|---|---|
| Bore Centerline Height: | 2.0 |
| Description: | Throttle Body Intake Elbow |
| Finish: | Satin |
| Flange Angle: | 95 |
| Gasket Or Seal Included: | Yes |
| Length: | 7.0 |
| Material: | Aluminum |
| Overall Height: | 5.04 |
| Part Number: | ede3848 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Size: | 90 |
| Type: | Low Profile |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Part Type
Engine Air Intake Deceleration Elbow
Features
- As-Cast Finish
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 3848
- Product Attributes - Part Type
- Throttle Body Intake Elbows
- Product Attributes - Product Line
- Edelbrock Throttle Body Intake Elbows
- Product Attributes - UPC
- 085347038480
- Product Attributes - Intake Elbow Type
- Elbow
- Product Attributes - Throttle Body Bore Size
- 90mm
- Product Attributes - Intake Elbow Height (in.)
- 5.04
- Product Attributes - Intake Elbow Material
- Aluminum
- Product Attributes - Intake Elbow Color
- Natural
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Throttle bore center measures 7.0 in. forward and 2.0 in. above the intake manifold mounting flange.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede3848 |
| SFX Item ID | 4237028 |
| Supplier Item Code | 4237028 |
| Manufacturer SKU | 3848 |
| Manufacturer UPC | 85347038480 |
| Alternative References | edl-3848, EDB3848, 90mm |
