Edelbrock EFI Intake Elbow Universal 100 Deg 120mm T B to 4500 Dominator Flange
Edelbrock EFI Intake Elbow Universal 100 Deg 120mm T B to 4500 Dominator Flange
A$606.11
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

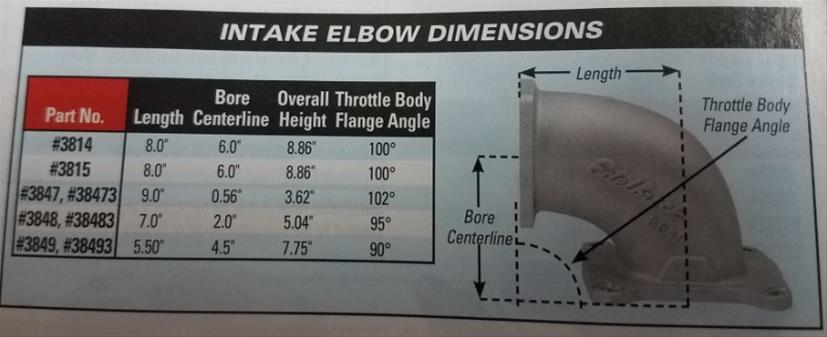

The Edelbrock High-Flow EFI Intake Elbow #3815 is intended for very high-power naturally aspirated EFI applications and turbocharged or centrifugal-supercharged engines making over 1,100 horsepower. This casting is CNC-machined to a 120mm opening and has a 4.250-inch-square throttle body bolt pattern with a base flange bolt pattern of 5.375-inch-square for use with 4500-series intake manifolds. The elbow has a 10-degree downward angle for a total of 100 degrees and can be mounted in a forward, backward or sideways configuration. An internal divider prevents flow from concentrating at the back of the manifold, which is a condition that commonly occurs with other elbows. Overall height of the High-Flow Elbow #3815 is 8.86 inches and it comes with a universal throttle bracket. For smaller 90mm throttle bodies, order High-Flow Elbow #3814.
Product Overview
The Edelbrock High-Flow EFI Intake Elbow #3815 is intended for very high-power naturally aspirated EFI applications and turbocharged or centrifugal-supercharged engines making over 1,100 horsepower. This casting is CNC-machined to a 120mm opening and has a 4.250-inch-square throttle body bolt pattern with a base flange bolt pattern of 5.375-inch-square for use with 4500-series intake manifolds. The elbow has a 10-degree downward angle for a total of 100 degrees and can be mounted in a forward, backward or sideways configuration. An internal divider prevents flow from concentrating at the back of the manifold, which is a condition that commonly occurs with other elbows. Overall height of the High-Flow Elbow #3815 is 8.86 inches and it comes with a universal throttle bracket. For smaller 90mm throttle bodies, order High-Flow Elbow #3814.
Features and Benefits
- Up To 120 mm. Throttle Body
Product Details
| Adapter Included: | No |
|---|---|
| Bore Centerline Height: | 6.0 |
| Description: | High-Flow |
| Finish: | Satin |
| Flange Angle: | 100 |
| Gasket Or Seal Included: | Yes |
| Length: | 8.0 |
| Material: | Aluminum |
| Overall Height: | 8.86 |
| Part Number: | ede3815 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Size: | 120 |
| Type: | High Flow |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Universal
Part Type
Engine Air Intake Deceleration Elbow
Features
- Up To 120 mm. Throttle Body
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 3815
- Product Attributes - Part Type
- Throttle Body Intake Elbows
- Product Attributes - Product Line
- Edelbrock High-Flow EFI 4500 Series Intake Elbows
- Product Attributes - UPC
- 085347038152
- Product Attributes - Intake Elbow Type
- Elbow
- Product Attributes - Throttle Body Bore Size
- 120mm
- Product Attributes - Intake Elbow Height (in.)
- 8.86
- Product Attributes - Intake Elbow Material
- Aluminum
- Product Attributes - Intake Elbow Color
- Satin
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Includes universal throttle bracket. For smaller 90mm throttle bodies use EDL-3814
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede3815 |
| SFX Item ID | 4237345 |
| Supplier Item Code | 4237345 |
| Manufacturer SKU | 3815 |
| Manufacturer UPC | 85347038152 |
| Alternative References | EDB3815, EDL-3815, 120mm |
