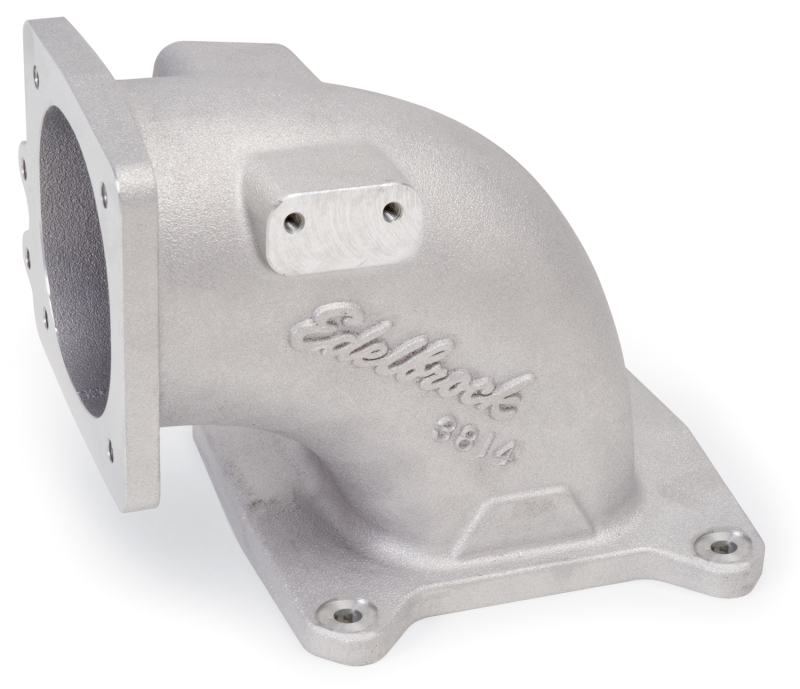

Edelbrock EFI Intake Elbow Universal 100 Deg 95mm T B to 4500 Dominator Flange Tall Profile
Edelbrock EFI Intake Elbow Universal 100 Deg 95mm T B to 4500 Dominator Flange Tall Profile
A$505.60
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The Edelbrock 3814 Intake elbow was developed by the Edelbrock engineering team using the latest in Computational Fluid Dynamic (CFD) software. Edelbrock Throttle Body Elbows are the best way to adapt LS1, LS2 and Ford 5.0L-based throttle bodies to EFI manifolds with traditional square-bore mounting pads. An internal divider optimizes flow quantity and distribution into the manifold and they can be mounted forward, backward, or sideways on Victor EFI square-bore manifolds. Three versions allow EFI tuners to position the throttle body low for hood clearance or higher for maximum airflow. Available in satin finish. All Edelbrock Throttle Body Elbows include a universal throttle cable bracket. Elbow #3814 has universal bolt pattern to adapt a single TB (Up to a 95mm) to a 4500 flange
Product Overview
The Edelbrock 3814 Intake elbow was developed by the Edelbrock engineering team using the latest in Computational Fluid Dynamic (CFD) software. Edelbrock Throttle Body Elbows are the best way to adapt LS1, LS2 and Ford 5.0L-based throttle bodies to EFI manifolds with traditional square-bore mounting pads. An internal divider optimizes flow quantity and distribution into the manifold and they can be mounted forward, backward, or sideways on Victor EFI square-bore manifolds. Three versions allow EFI tuners to position the throttle body low for hood clearance or higher for maximum airflow. Available in satin finish. All Edelbrock Throttle Body Elbows include a universal throttle cable bracket. Elbow #3814 has universal bolt pattern to adapt a single TB (Up to a 95mm) to a 4500 flange
Features and Benefits
- Up To 95 mm. Throttle Body
Product Details
| Adapter Included: | No |
|---|---|
| Bore Centerline Height: | 5.92 |
| Description: | High Flow Intake Elbow |
| Finish: | Satin |
| Flange Angle: | 100 |
| Gasket Or Seal Included: | Yes |
| Length: | 8.0 |
| Material: | Aluminum |
| Overall Height: | 8.86 |
| Part Number: | ede3814 |
| Quantity: | Sold Individually |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Size: | 95 |
| Type: | High Flow |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Part Type
Engine Air Intake Deceleration Elbow
Features
- Up To 95 mm. Throttle Body
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 3814
- Product Attributes - Part Type
- Throttle Body Intake Elbows
- Product Attributes - Product Line
- Edelbrock Throttle Body Intake Elbows
- Product Attributes - UPC
- 085347038145
- Product Attributes - Intake Elbow Type
- Elbow
- Product Attributes - Throttle Body Bore Size
- 95mm
- Product Attributes - Intake Elbow Height (in.)
- 8.86
- Product Attributes - Intake Elbow Material
- Aluminum
- Product Attributes - Intake Elbow Color
- Natural
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Features 6.0 in. bore centerline from the intake manifold mounting flange to the throttle body centerline. 8.0 in. length.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede3814 |
| SFX Item ID | 4237027 |
| Supplier Item Code | 4237027 |
| Manufacturer SKU | 3814 |
| Manufacturer UPC | 85347038145 |
| Alternative References | 90mm;, EDB3814, EDL-3814, 95mm |
