Edelbrock 11-14 Ford Coyote DBW VCC Pro-Flo 4+ EFI Fuel Injection Kit

SKU: EDE36110

Engine Management Systems

EDE EFI System...

Edelbrock

Edelbrock 11-14 Ford Coyote DBW VCC Pro-Flo 4+ EFI Fuel Injection Kit

SKU: EDE36110

Engine Management Systems

EDE EFI System...

Sale ends in Calculating... Sun 18 Oct, 1:40 am AEST

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

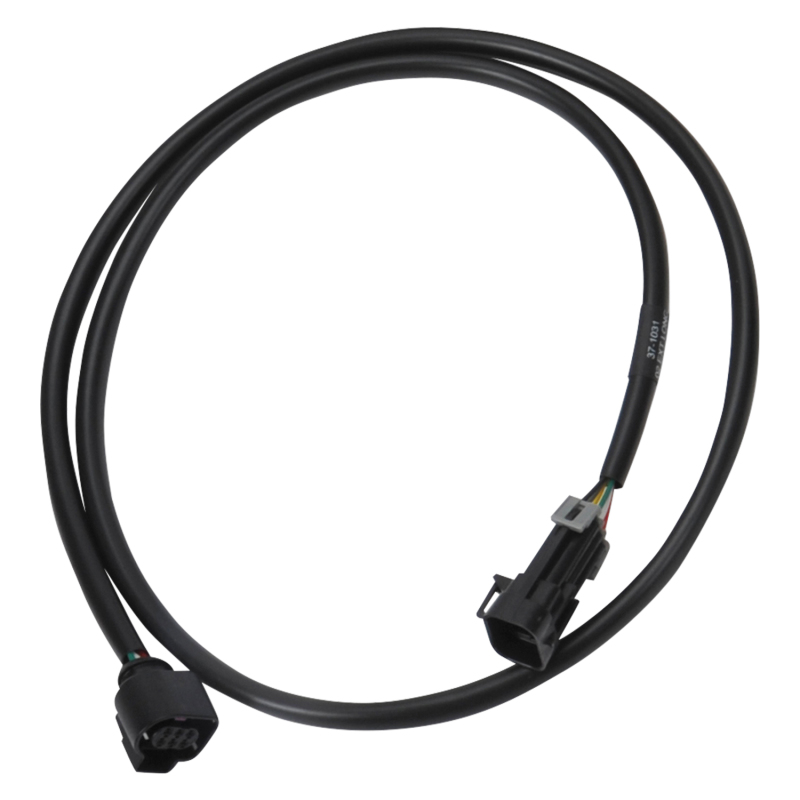

OEM-style wiring harnesses

Product Overview

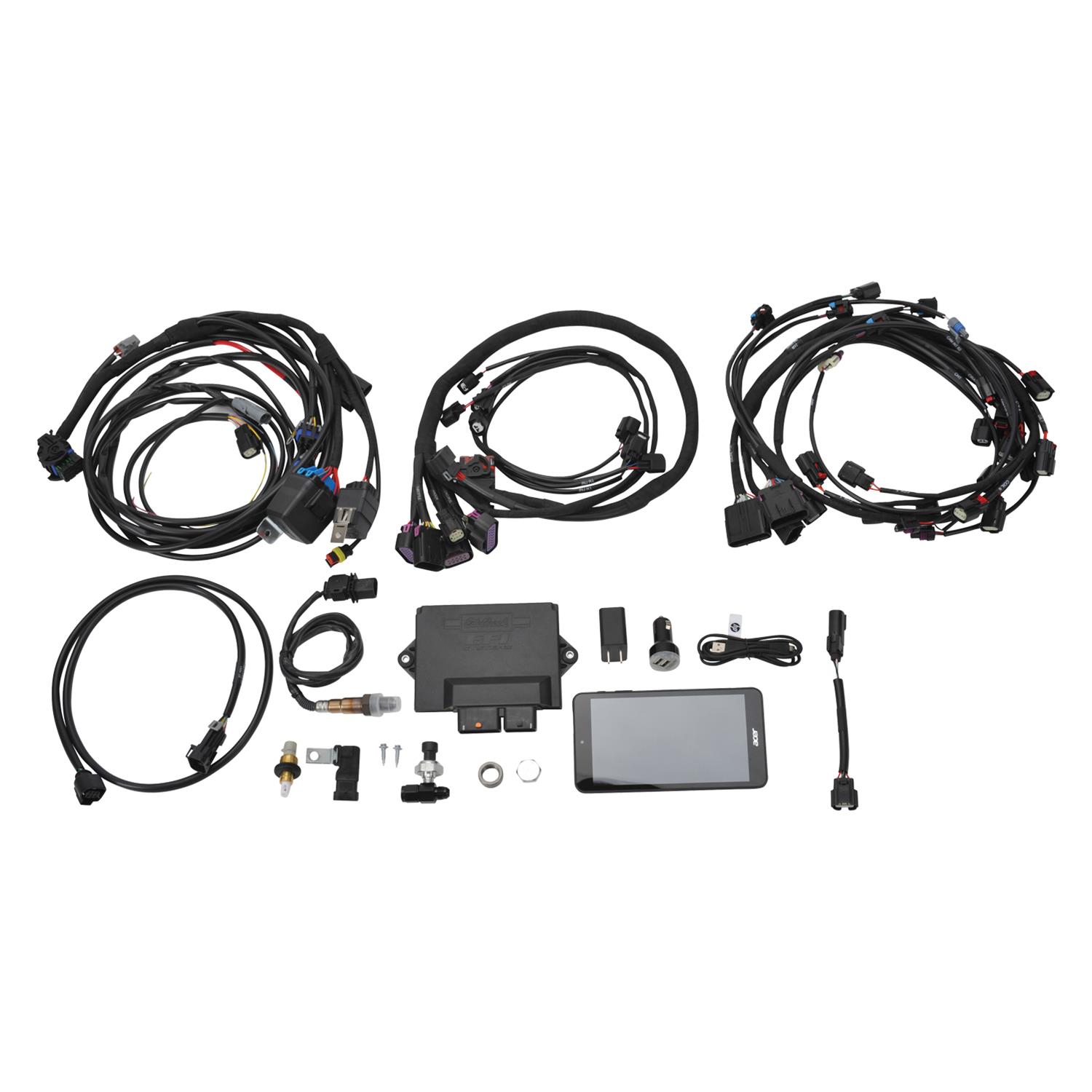

MAP, O2 and IAT sensors. The compact Pro-Flo 4+ ECU provides mounting versatility with a weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock's E-Tuner 4 software for Android tablets and smartphones. Pro-Flo 4+ for the 2011-2014 Coyote uses a speed-density fueling strategy with an included MAP and IAT sensor. A non-adjustable Alternator Control is set to regulate at 14.5 volts. The Coyote's factory MAF sensor, air inlet piping and air box are eliminated, allowing unlimited configuration of your air intake design. Pro-Flo 4+ #36110 works with 80mm drive-by-wire throttle bodies as well as the 87mm GT350 throttle body. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. Pro-Flo 4+ is covered by a 2-year warranty and is backed by the industry's most extensive technical support team.'

Features and Benefits

Simple plug-and-play installation, no laptop tuning required
Works with most intake manifold configurations
Works with stock-size Ford drive-by-wire throttle body or 87mm GT350 throttle body
Improved drivability and throttle response

Product Details

Description:	Edelbrock 11-14 Ford Coyote DBW VCC Pro-Flo 4+ EFI Fuel Injection Kit
Display Included:	Yes
Flash Programming Required:	No
Flashable:	No
Length:	Various
Mounting Hardware Included:	Yes
Oxygen Sensor Included:	Yes
Part Number:	ede36110
Quantity:	Kit
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type:	Pro-Flo 4+ EFI
Terminal Gender:	Female/Male
Terminal Material:	Plastic
Terminal Quantity:	Multiple
Terminal Type:	Various
Thickness:	Various
Universal Or Specific Fit:	Specific
Width:	Various
Wire Gauge Measurement:	Various
Wire Quantity:	Multiple
Wiring Harness Length:	Various

Application Summary

Ford:Modular Coyote 4V:302 (5.0L)

Part Type

Fuel Injection Calibration Module

Data: v4.2 - Upd: 2026-10-17 00:38:23

Features

Improved drivability and throttle response
Simple plug-and-play installation, no laptop tuning required
Works with most intake manifold configurations
Works with stock-size Ford drive-by-wire throttle body or 87mm GT350 throttle body

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 36110
Product Attributes - Part Type: Engine Management Systems
Product Attributes - Product Line: Edelbrock Pro-Flo 4 Plus Self-Learning Engine Management Systems
Product Attributes - UPC: 85347361106
Product Attributes - Transmission Controller Included: No
Product Attributes - Boost Control: Yes
Product Attributes - Traction Control: No
Product Attributes - High Impedence Injectors: Up to 8
Product Attributes - Fuel Injector Connector Style: USCAR/EV6
Product Attributes - Coils: Up to 8
Product Attributes - Ignition Coil Connector: Ford Coyote 3-pin
Product Attributes - Wideband Controller: Yes
Product Attributes - Wideband Channels: 1
Product Attributes - CANBUS Enabled: No
Product Attributes - Knock Control: No
Product Attributes - Drive-By-Wire Capable: Yes
Product Attributes - Drive-By-Wire Channels: 1
Product Attributes - VVT Control: Yes
Product Attributes - VVT Channels: 4
Product Attributes - Nitrous Control: No
Product Attributes - Launch Control: No
Product Attributes - Engine Protection: No
Product Attributes - Flex Fuel Compatible: No
Product Attributes - Multi-fuel Capable: No
Product Attributes - Data Logger: No
Product Attributes - Oxygen Sensor Included: Yes
Product Attributes - Reluctor Wheel Tooth Quantity: 35
Product Attributes - Display Included: Yes
Product Attributes - Handheld Controller Included: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: Supports VCT phasers without additional modules. Utilizes stock or 87mm GT350 drive-by-wire throttle body and works with most intake manifolds. Kit also supports knock control with additional harness.
Product Attributes - Special Attention: To use with an automatic transmission a transmission controller will need to be purchased also.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede36110
SFX Item ID	4237638
Supplier Item Code	4237638
Manufacturer SKU	36110
Manufacturer UPC	85347361106
Alternative References	EDB36110, EDL-36110
