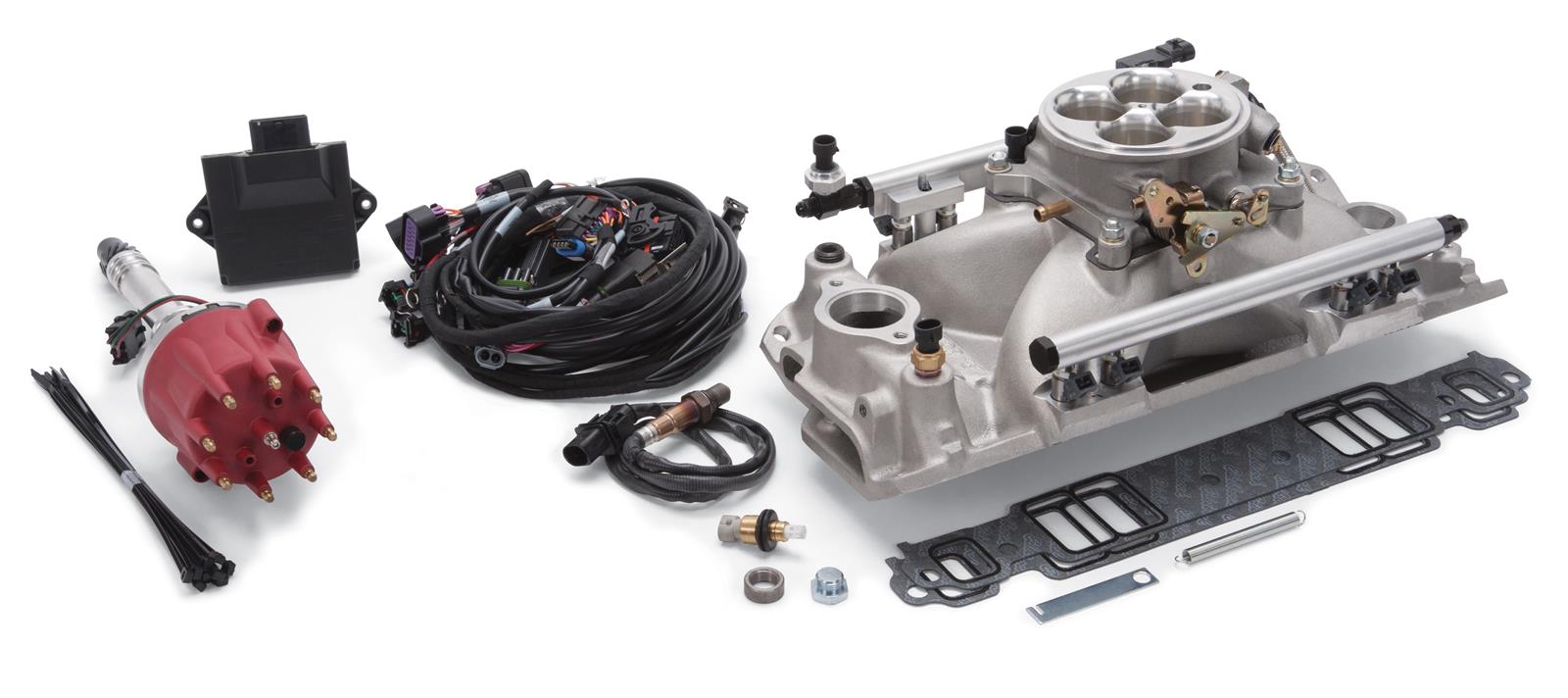

Edelbrock Pro-Flo 4 EFI Systems 35660 Fuel Injection System, 4, Self-Learning, Sequential Multi-Port, Satin, 550 HP Max, AMC 1967-69, 290, 390, Kit
Edelbrock Pro-Flo 4 EFI Systems 35660 Fuel Injection System, 4, Self-Learning, Sequential Multi-Port, Satin, 550 HP Max, AMC 1967-69, 290, 390, Kit
A$5,230.01
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Edelbrock Pro-Flo 4 EFI systems provide you with a high performance traditional-style intake and 4150-style throttle body. Unlike regular throttle body EFI systems, Pro-Flo 4 features the fuel rails and individual injectors for each cylinder mounted on the manifold. This Edelbrock design produces the best fuel atomization and distribution for the ultimate performance, as well as delivering the most control and the most efficient way to deliver fuel to your engine. Along with innovative design, Pro-Flo 4 systems have the latest technology with an all-new ECU, and even more features for advanced tuning, with the key being their exclusive E-Tuner app with base calibrations developed on their dyno.
Edelbrock Pro-Flo 4 EFI systems include and feature:
* Engine Control Unit with faster processor and upgraded Bluetooth chip in a thinner waterproof design
* Fully assembled intake manifold with air valve, fuel rails, and injectors
* Fully assembled OEM high-quality wiring harness with pre-terminated connectors and labeled connection for a simplified installation
* E-Tuner application for setup and engine monitoring
* Wideband oxygen sensor
* Distributor (not included with LS kits)
* Gaskets and hardware
* Installation instructions
* Ready to run out of the box with pre-loaded calibrations
* Self-learning technology--no tuning experience or laptop tuning required
* Ignition control--adjust ignition curve with the E-Tuner 4 App for optimal performance and mpg
* Offered with multiple fuel injector choices
* Now boost compatible up to 15 psi by switching to a 2-bar MAP sensor and downloading the new firmware update from Edelbrock for free! It is recommended to regularly check for firmware updates even if not utilizing boost control.
* Systems automatically compensate for altitude and weather changes
* E-Tuner 4 app with Bluetooth connectivity between ECU and Android phone or tablet. Includes multiple dash display configurations for monitoring engine vitals and performance; multiple control functions including two adjustable cooling fan outputs, idle speed, AFR set points, acceleration fuel tuning, ignition control, cold start fuel, and cranking fuel.
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 35660
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- Edelbrock Pro-Flo 4 EFI Systems
- Product Attributes - UPC
- 085347356607
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Fuel Injection System Type
- Single 4-Barrel Throttle Body (4150 Flange)
- Product Attributes - Maximum Horsepower with Gas
- 550
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- None
- Product Attributes - Ignition System Included
- None
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- Bluetooth
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - Intake Color
- Natural
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- 4-barrel square bore
- Product Attributes - Venturi Quantity
- 4
- Product Attributes - Venturi Diameter (mm)
- 44.45mm
- Product Attributes - Airflow Rate (cfm)
- 1,000 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Natural
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 35 lbs./hr.
- Product Attributes - Calibration Module Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Supports up to 550 HP; Tuning and set-up app can be downloaded to a Bluetooth capable tablet or smart phone from either the Apple or Google app stores. Use with boosted applications requires a 2-bar MAP sensor.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede35660 |
| SFX Item ID | 4809943 |
| Supplier Item Code | 4809943 |
| Manufacturer SKU | 35660 |
| Manufacturer UPC | 85347356607 |
| Alternative References | EDB35660, EDL-35660 |
