Description

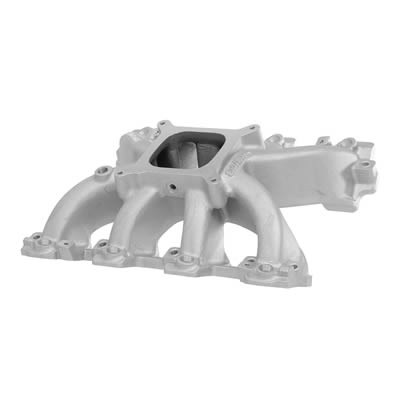

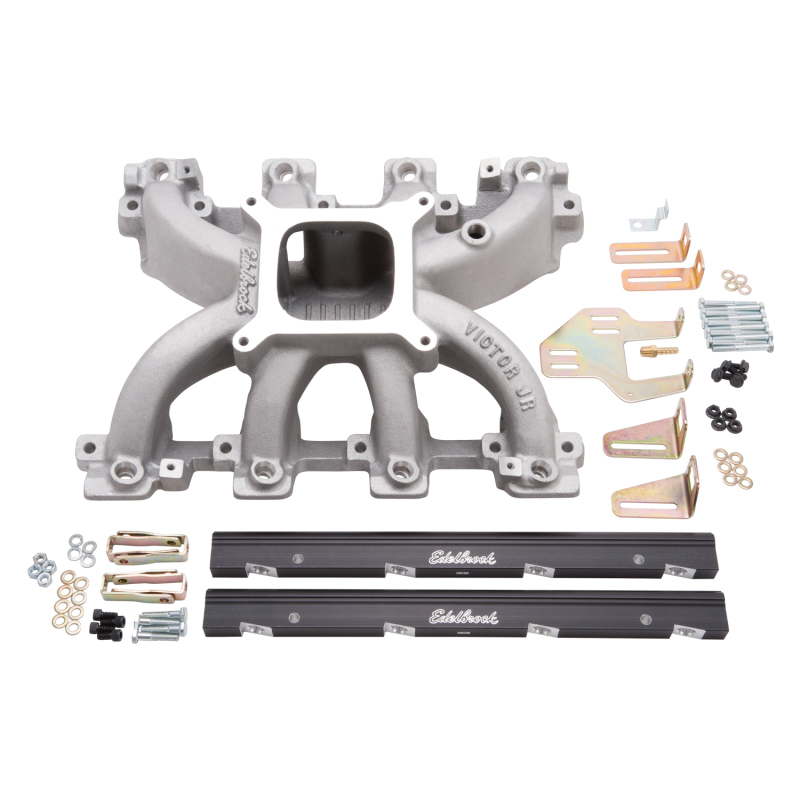

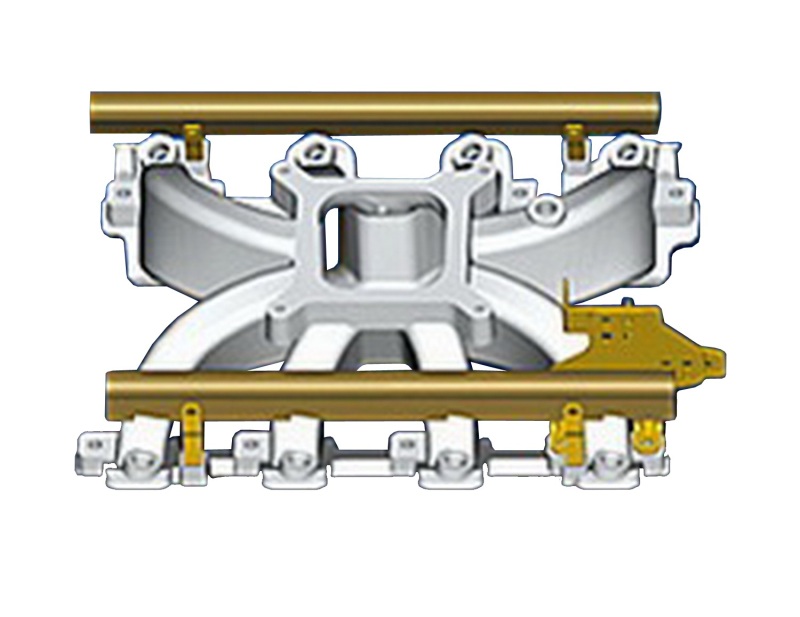

Edelbrock part #29086 Victor Jr. LS1 EFI intake manifold accepts a standard square bore throttle body. This compact single-plane intake is capable of supporting up to 650 hp. The Edelbrock Victor Jr. LS1 EFI intake manifold continues the Edelbrock tradition of enhanced engine breathing and balanced cylinder-to-cylinder air/fuel distribution for improved performance. Includes a throttle bracket designed to work with 700-R4, 200-4R and Turbo 350 transmissions, as well as Edelbrock Fuel Rail Kit #3638. Most applications will require hood modification.

Application Summary

Chevrolet:Small-Block LY5:325 (5.3L)

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-13 23:11:33

Features

Throttle Brkt Included for 700R-4/200R-4/Turbo 350

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 29086
Product Attributes - Part Type: Intake Manifolds, Fuel Injected
Product Attributes - Product Line: Edelbrock Victor Jr. LS1 EFI Intake Manifolds
Product Attributes - UPC: 085347290864
Product Attributes - Cylinder Head Configuration: Cathedral Port LS1/LS2/LS6
Product Attributes - Fuel Injection Style: Multi-port
Product Attributes - Basic Operating RPM Range: 3,500-7,500
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Injectors Included: No
Product Attributes - Multi-Port Fuel Rails Included: Yes
Product Attributes - EGR: No
Product Attributes - Aftermarket Fuel Rail Required: Yes
Product Attributes - Throttle Body Included: No
Product Attributes - Supplemental Bosses Cast-In: No
Product Attributes - Supplemental Bosses Machined: No
Product Attributes - Runners Included: Yes
Product Attributes - Runners Removable: No
Product Attributes - Plenum Material: Aluminum
Product Attributes - Plenum Finish: Natural
Product Attributes - Base Material: Aluminum
Product Attributes - Base Color: Natural
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede29086
SFX Item ID	4237359
Supplier Item Code	4237359
Manufacturer SKU	29086
Manufacturer UPC	85347290864
Alternative References	EDB29086, EDL-29086, LS1
