Edelbrock Victor Jr EFI Intake for GM Gen IIi Engines
Edelbrock Victor Jr EFI Intake for GM Gen IIi Engines
A$1,167.27
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

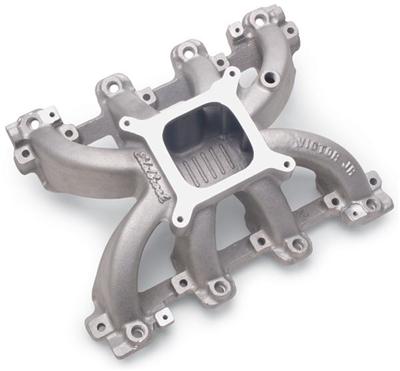

Edelbrock part #29085 Victor Jr. LS1 EFI intake manifold accepts a standard square bore throttle body. This compact single-plane intake is capable of supporting up to 650 hp. The Edelbrock Victor Jr. LS1 EFI intake manifold continues the Edelbrock tradition of enhanced engine breathing and balanced cylinder-to-cylinder air/fuel distribution for improved performance. Includes a throttle bracket designed to work with 700-R4, 200-4R and Turbo 350 transmissions. Most applications will require hood modification.
Product Overview
Edelbrock part #29085 Victor Jr. LS1 EFI intake manifold accepts a standard square bore throttle body. This compact single-plane intake is capable of supporting up to 650 hp. The Edelbrock Victor Jr. LS1 EFI intake manifold continues the Edelbrock tradition of enhanced engine breathing and balanced cylinder-to-cylinder air/fuel distribution for improved performance. Includes a throttle bracket designed to work with 700-R4, 200-4R and Turbo 350 transmissions. Most applications will require hood modification.
Features and Benefits
- Use OEM Factory O-Rings for Intake Gasket
Product Details
| Basic Operating RPM Range: | 3500-7500 |
|---|---|
| CNC Ported: | No |
| Center Maximum Height: | 4.950 |
| Cylinder Head Type: | Standard |
| Description: | Victor Jr. Series Intake Manifold |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Chevy Small Block LS1 |
| Finish: | Satin |
| Flange Type: | 4150 |
| Front Maximum Height: | 4.950 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | One |
| Part Number: | ede29085 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 3500-7500 |
| Rear Maximum Height: | 4.950 |
| Series: | Victor |
| Single Or Dual Plane Type: | Single |
| Usage: | Racing |
| Vehicle Model: | Chevrolet |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block LC9:325 (5.3L);Chevrolet:Small-Block LH8:325 (5.3L);Chevrolet:Small-Block LMF:325 (5.3L);Chevrolet:Small-Block LMG:325 (5.3L);Chevrolet:Small-Block LY5:325 (5.3L);Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen
Part Type
Engine Intake Manifold
Features
- Use OEM Factory O-Rings for Intake Gasket
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 29085
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Edelbrock Victor Jr. LS1 EFI Intake Manifolds
- Product Attributes - UPC
- 085347290857
- Product Attributes - Cylinder Head Configuration
- Cathedral Port LS1/LS2/LS6
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Basic Operating RPM Range
- 3,500-7,500
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- Yes
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- No
- Product Attributes - Supplemental Bosses Machined
- No
- Product Attributes - Runners Included
- Yes
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Natural
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Includes a throttle bracket designed to work with 700-R4, 200-4R and Turbo 350 transmissions. Most applications will require hood modification.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede29085 |
| SFX Item ID | 4237373 |
| Supplier Item Code | 4237373 |
| Manufacturer SKU | 29085 |
| Manufacturer UPC | 85347290857 |
| Alternative References | EDB29085, EDL-29085 |
Brochures
Compatibility
Chevrolet:Small-Block LC9:325 (5.3L);Chevrolet:Small-Block LH8:325 (5.3L);Chevrolet:Small-Block LMF:325 (5.3L);Chevrolet:Small-Block LMG:325 (5.3L);Chevrolet:Small-Block LY5:325 (5.3L);Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen
