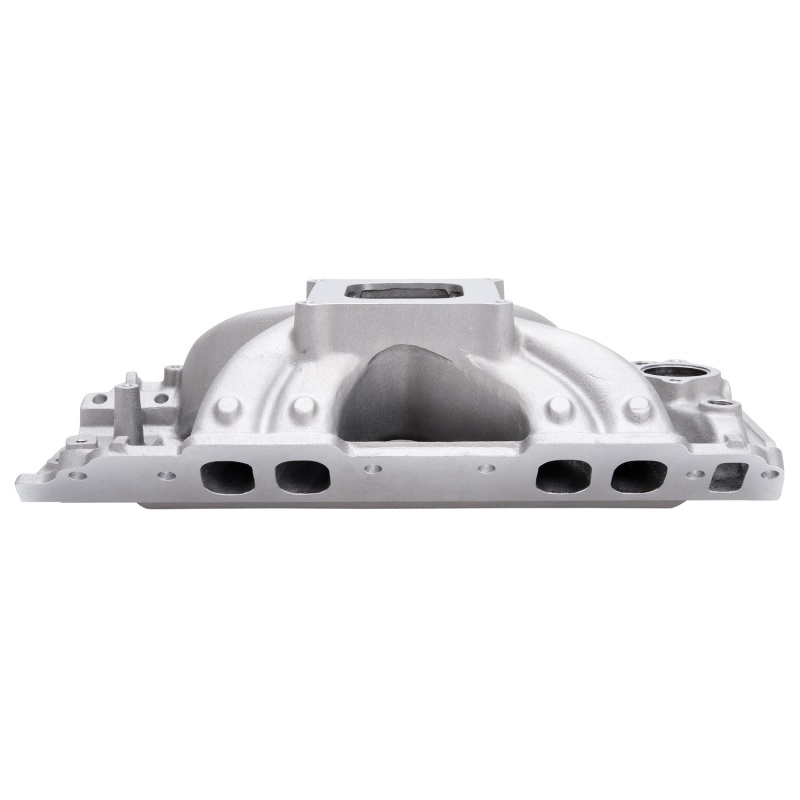

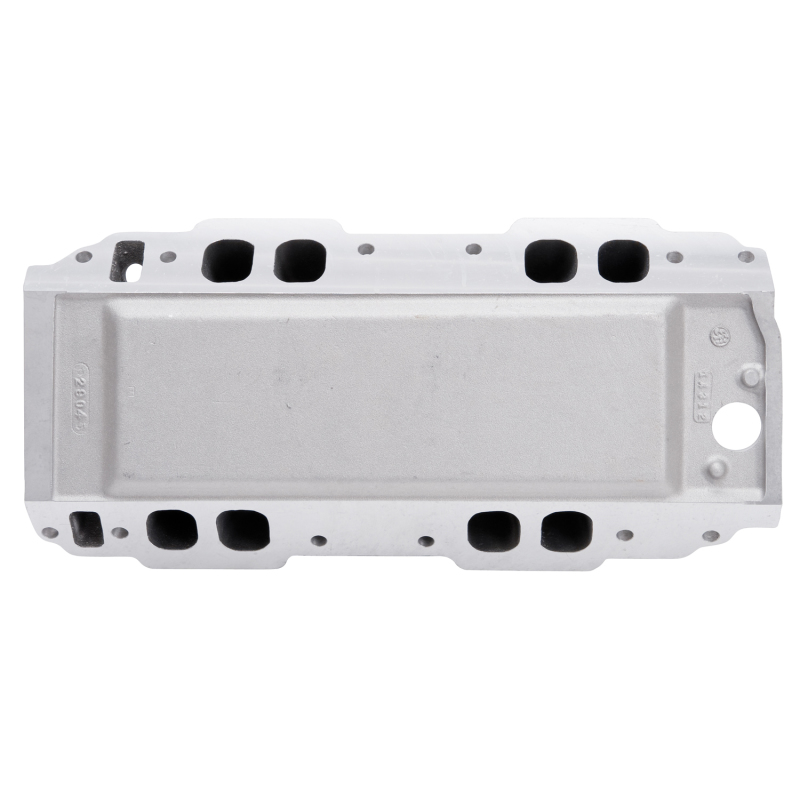

Edelbrock Victor 454-O 850 Manifold

SKU: EDE2904

Intake Manifolds, Carbureted

EDE Victor Intake Manifold...

Edelbrock

Edelbrock Victor 454-O 850 Manifold

SKU: EDE2904

Intake Manifolds, Carbureted

EDE Victor Intake Manifold...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

Edelbrock part #2904 Victor Jr. 454-O intake manifold is designed for competition 396-502 big-block Chevys with large oval-port heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. This intake manifold is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24-degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential!

Product Overview

Features and Benefits

Use PN[29025] When EFI Bosses Are Needed

Product Details

Basic Operating RPM Range:	3500-7500
CNC Ported:	No
Center Maximum Height:	5.960
Cylinder Head Type:	Oval Port- Standard
Description:	Victor Jr. Series Intake Manifold
EGR Port:	No
Emission:	Without EGR
Engine Make/Size:	Chevy Big Block (396-502)
Finish:	Satin
Flange Type:	4150
Front Maximum Height:	5.960
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Number of Carbs:	One
Part Number:	ede2904
Position:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	3500-7500
Rear Maximum Height:	5.960
Series:	Victor
Single Or Dual Plane Type:	Single
Usage:	Racing
Vehicle Model:	Chevrolet
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-13 23:11:32

Features

Use PN[29025] When EFI Bosses Are Needed

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 2904
Product Attributes - Part Type: Intake Manifolds, Carbureted
Product Attributes - Product Line: Edelbrock Victor Jr. Intake Manifolds
Product Attributes - UPC: 085347029044
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Carburetor Quantity: One
Product Attributes - Intake Style: Single plane
Product Attributes - Basic Operating RPM Range: 3,500-7,500
Product Attributes - Intake Manifold Height: 5.960 in.
Product Attributes - Intake Color: Natural
Product Attributes - Intake Material: Aluminum
Product Attributes - EGR: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede2904
SFX Item ID	4237404
Supplier Item Code	4237404
Manufacturer SKU	2904
Manufacturer UPC	85347029044
Alternative References	EDB2904, EDL-2904, 454-O
