Home / Shop / Edelbrock Manifold BB Chevy Short Deck Super Victor II (565) CNC Port-Matched for 60409 CNC Heads

Edelbrock Manifold BB Chevy Short Deck Super Victor II (565) CNC Port-Matched for 60409 CNC Heads

SKU: EDE28962

Intake Manifolds, Carbureted

EDE Victor Intake Manifold...

Edelbrock

Edelbrock Manifold BB Chevy Short Deck Super Victor II (565) CNC Port-Matched for 60409 CNC Heads

SKU: EDE28962

Intake Manifolds, Carbureted

EDE Victor Intake Manifold...

Sale ends in Calculating... Sun 18 Oct, 7:07 am AEST

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

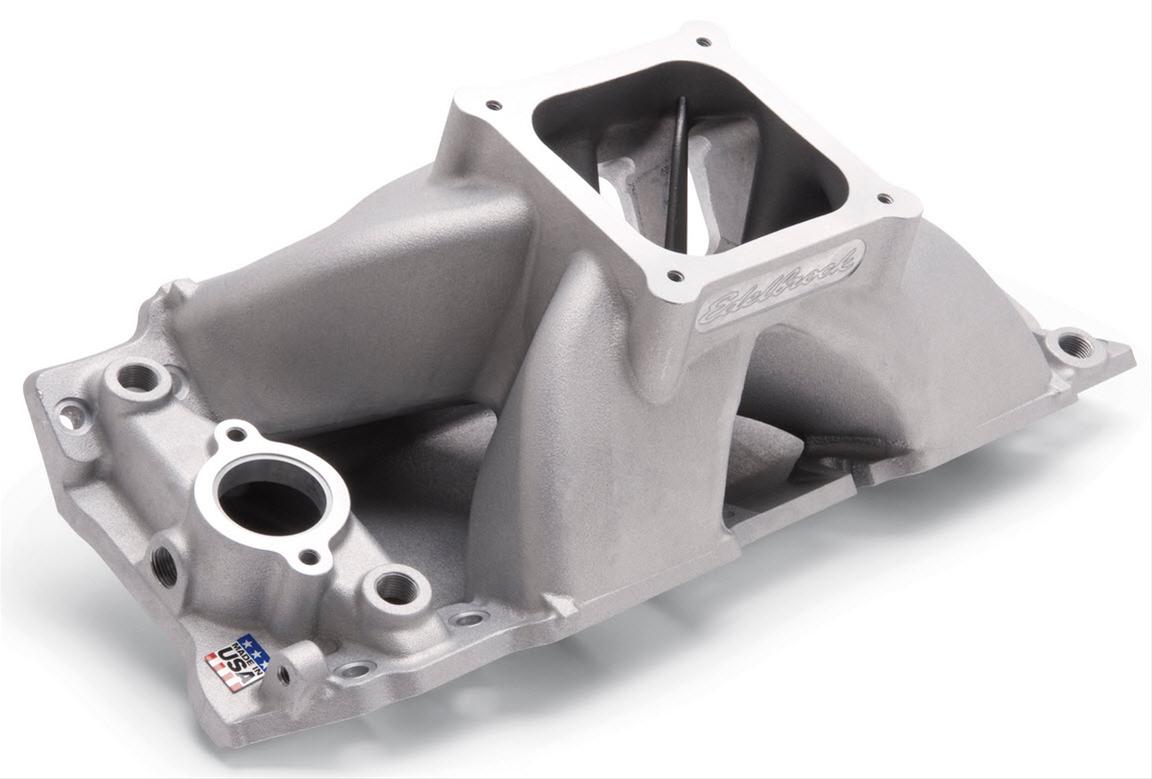

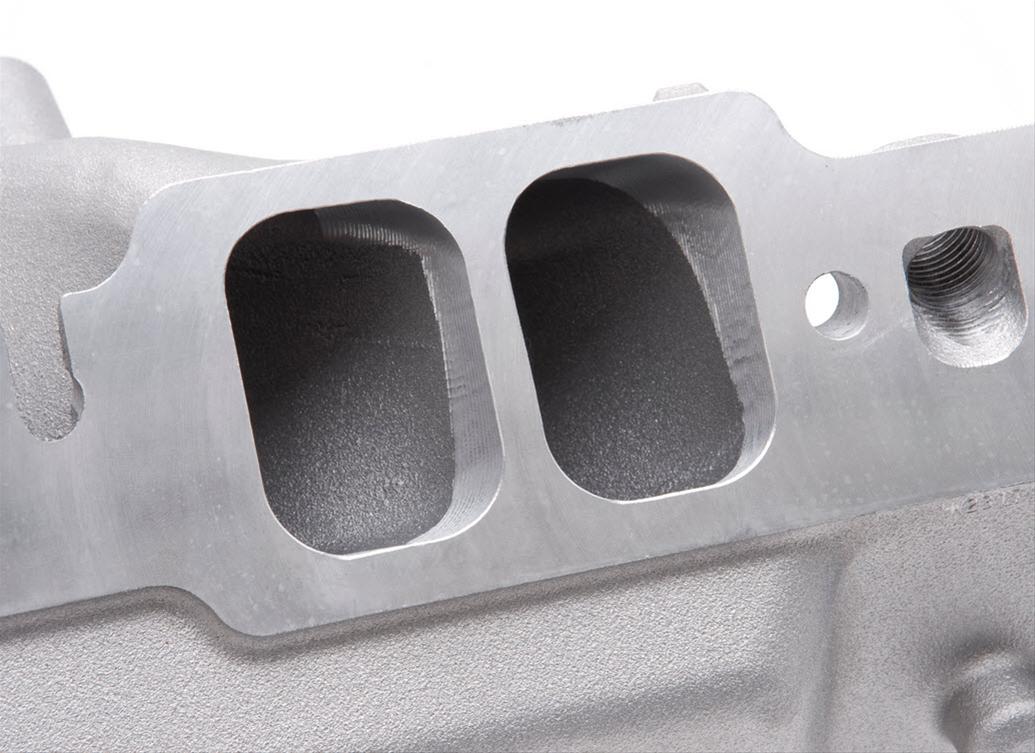

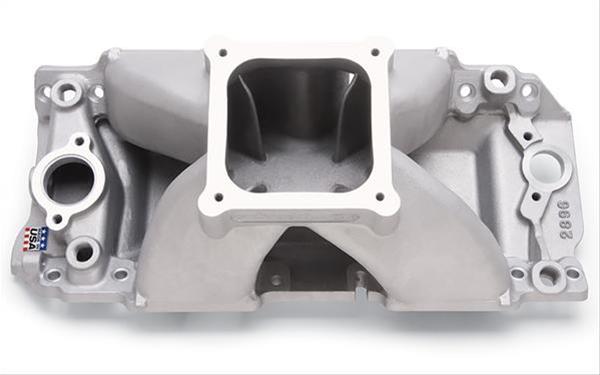

Edelbrock part #28962 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy engines using the latest design conventional rectangular port heads. This single-plane intake manifolds is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Super Victor II intake manifold is CNC port matched for Edelbrock/Musi Victor 24 degree CNC 377cc cylinder heads #61409. Accepts standard height distributors. The manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.

Product Overview

Features and Benefits

Accepts Standard Length Distributors

Product Details

Basic Operating RPM Range:	3500-8500
CNC Ported:	Yes
Center Maximum Height:	7.560
Cylinder Head Type:	Rectangular Port
Description:	Super Victor CNC BBC Intake Manifold
EGR Port:	No
Emission:	Without EGR
Engine Make/Size:	Chevy Big Block (396-502)
Finish:	Satin
Flange Type:	4500
Front Maximum Height:	7.560
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Number of Carbs:	One
Part Number:	ede28962
Position:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	3500-8500
Rear Maximum Height:	7.560
Series:	Victor
Single Or Dual Plane Type:	Single
Usage:	Racing
Vehicle Model:	Chevrolet
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Big-Block Race

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-17 04:22:22

Features

Accepts Standard Length Distributors

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 28962
Product Attributes - Part Type: Intake Manifolds, Carbureted
Product Attributes - Product Line: Edelbrock Super Victor II Intake Manifolds
Product Attributes - UPC: 085347289622
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Carburetor Quantity: One
Product Attributes - Intake Style: Single plane
Product Attributes - Basic Operating RPM Range: 3,500-8,000
Product Attributes - Intake Manifold Height: 7.560 in.
Product Attributes - Intake Color: Natural
Product Attributes - Intake Material: Aluminum
Product Attributes - EGR: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Fits 9.800 in. deck height engine blocks. CNC matched for EDL-60409 heads.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede28962
SFX Item ID	4237334
Supplier Item Code	4237334
Manufacturer SKU	28962
Manufacturer UPC	85347289622
Alternative References	EDB28962, EDL-28962
