Edelbrock Manifold BBC Short Deck Super Victor 565 Conventional Rect Port Heads

SKU: EDE2896

Intake Manifolds, Carbureted

EDE Victor Intake Manifold...

Edelbrock

Edelbrock Manifold BBC Short Deck Super Victor 565 Conventional Rect Port Heads

SKU: EDE2896

Intake Manifolds, Carbureted

EDE Victor Intake Manifold...

Sale ends in Calculating... Sun 18 Oct, 7:04 am AEST

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

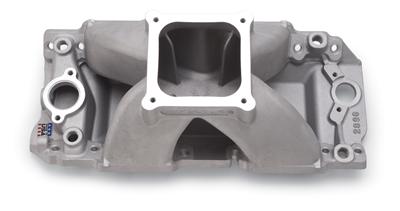

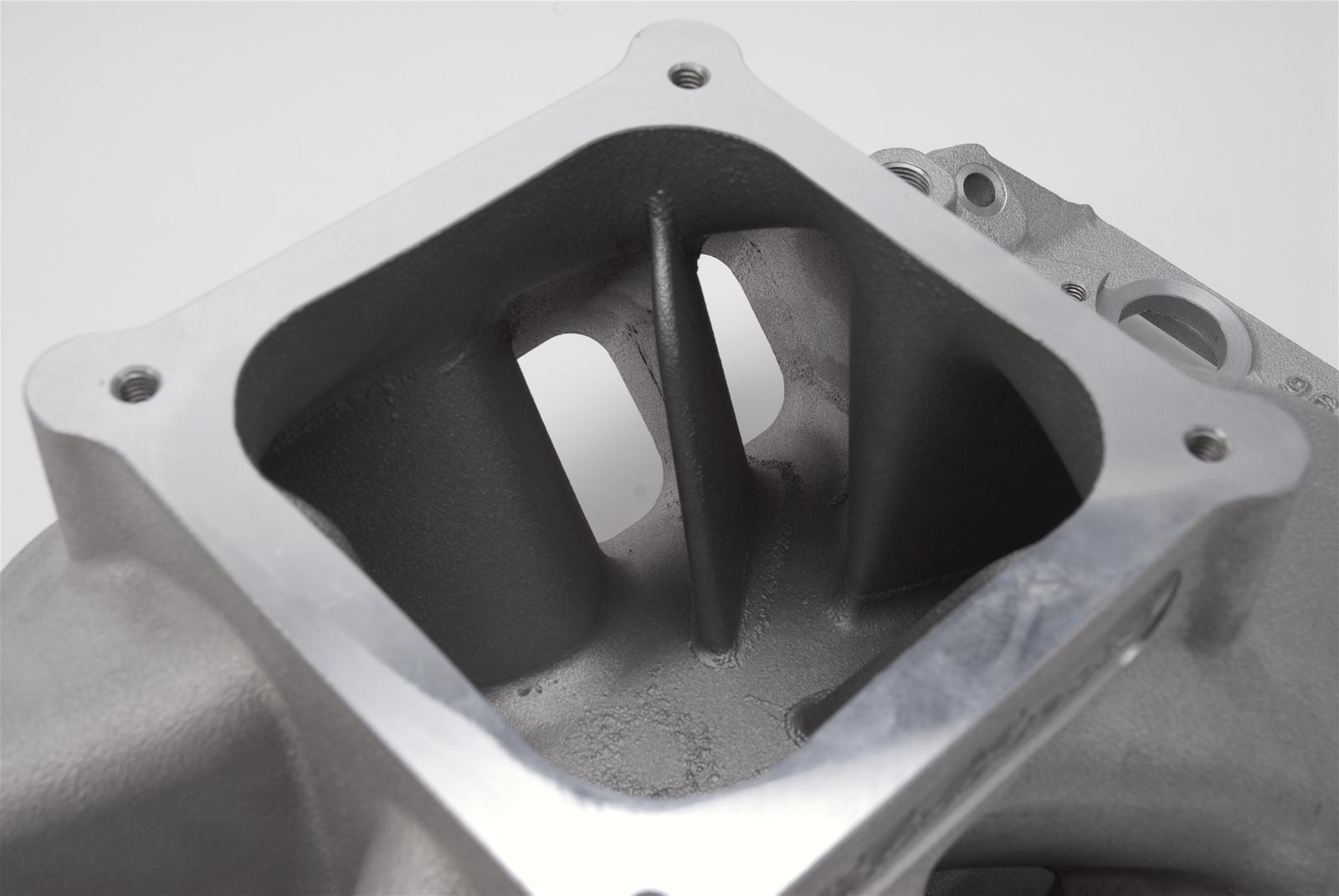

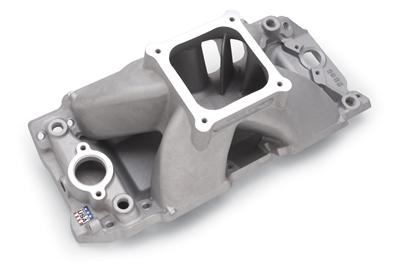

Edelbrock part #2896 Super Victor II is designed for use with large cubic inch big-block Chevy engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Edelbrock Super Victor II #2896 intake manifold features an improved runner design with an incredible 5.0 square-inches of runner area in the plenum. Accepts standard height distributors. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.

Product Overview

Features and Benefits

Ideal For Big Block Drag Eng. w/High Flow Req.

Product Details

Basic Operating RPM Range:	3500-8500
CNC Ported:	No
Center Maximum Height:	7.560
Cylinder Head Type:	Rectangular Port
Description:	Super Victor BBC Intake Manifold
EGR Port:	No
Emission:	Without EGR
Engine Make/Size:	Chevy Big Block (396-502)
Finish:	Satin
Flange Type:	4500
Front Maximum Height:	7.560
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Number of Carbs:	One
Part Number:	ede2896
Position:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	3500-8500
Rear Maximum Height:	7.560
Series:	Victor
Single Or Dual Plane Type:	Single
Usage:	Racing
Vehicle Model:	Chevrolet
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Big-Block Race

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-17 04:22:22

Features

Ideal For Big Block Drag Eng. w/High Flow Req.

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 2896
Product Attributes - Part Type: Intake Manifolds, Carbureted
Product Attributes - Product Line: Edelbrock Super Victor II Intake Manifolds
Product Attributes - UPC: 085347028962
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Carburetor Quantity: One
Product Attributes - Intake Style: Single plane
Product Attributes - Basic Operating RPM Range: 3,500-8,000
Product Attributes - Intake Manifold Height: 7.560 in.
Product Attributes - Intake Color: Natural
Product Attributes - Intake Material: Aluminum
Product Attributes - EGR: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Fits 9.800 in. deck height engine blocks.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede2896
SFX Item ID	4237344
Supplier Item Code	4237344
Manufacturer SKU	2896
Manufacturer UPC	85347028962
Alternative References	EDB2896, EDL-2896
