Edelbrock Intake Manifold Victor Jr Holden V8 VN EFI Single Plane 4150 Throttle Body
Edelbrock Intake Manifold Victor Jr Holden V8 VN EFI Single Plane 4150 Throttle Body
Sale ends in Calculating...
A$1,334.39 A$1,770.73
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

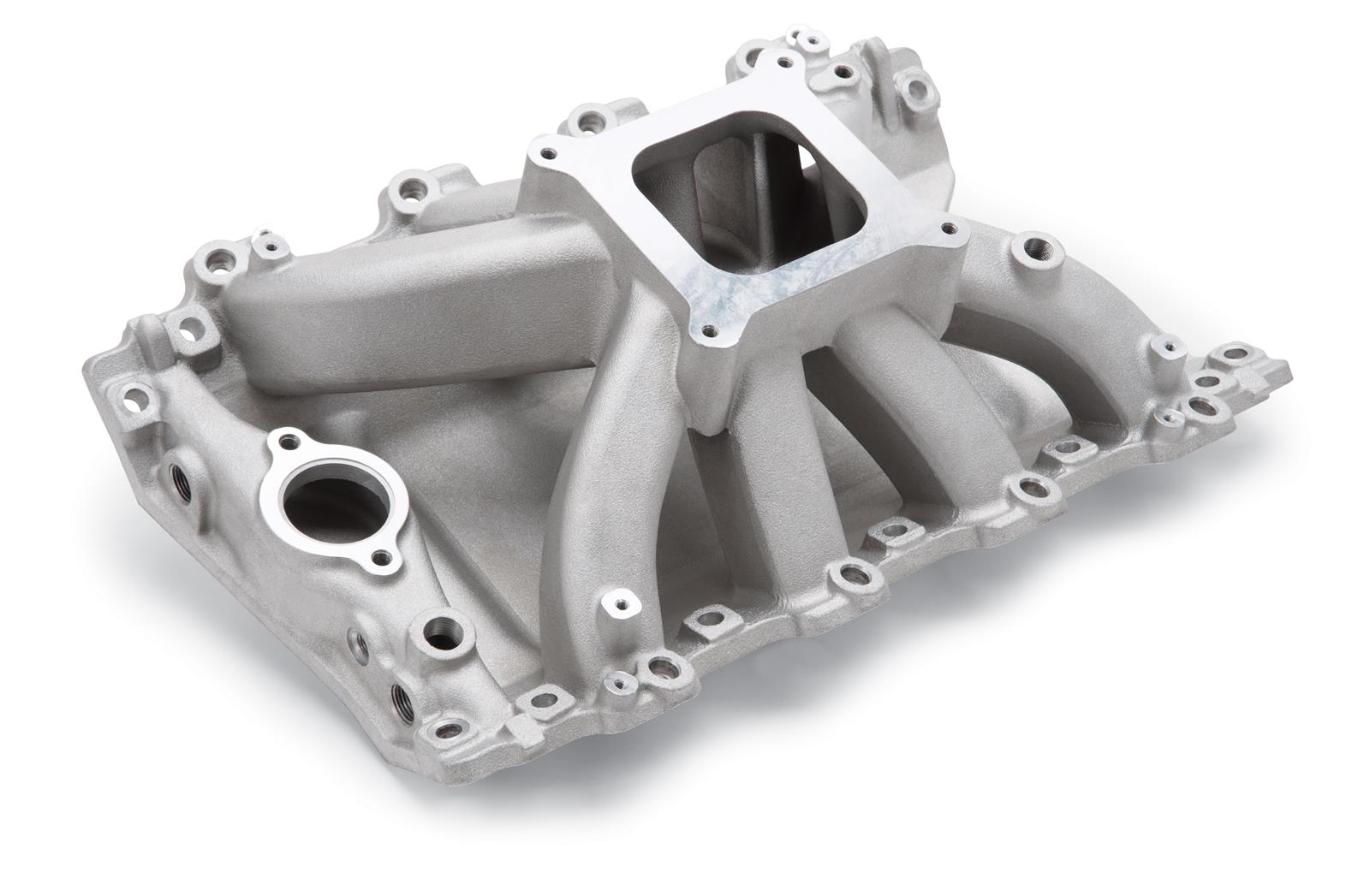

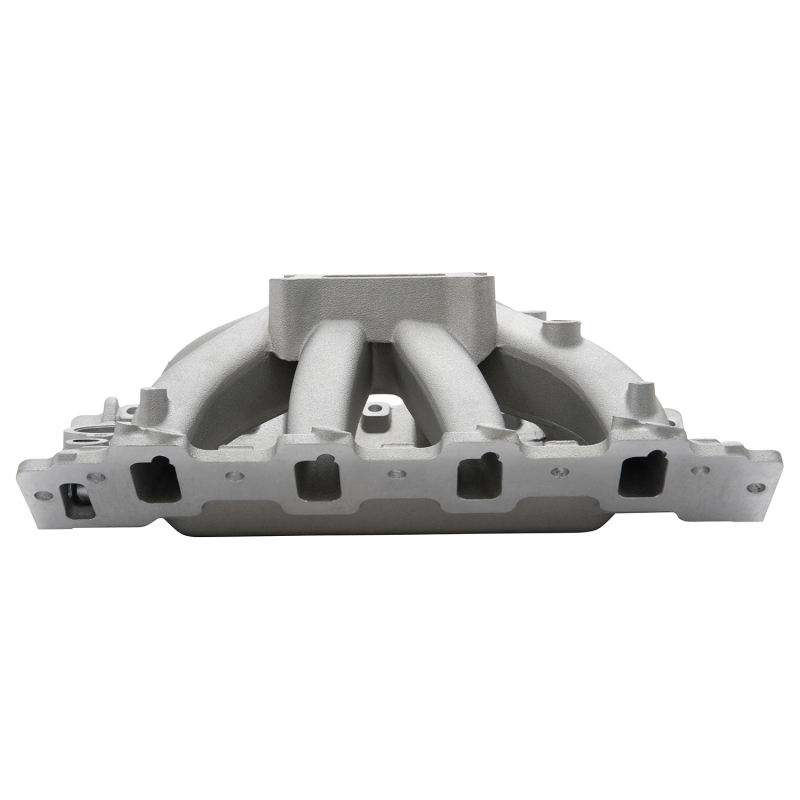

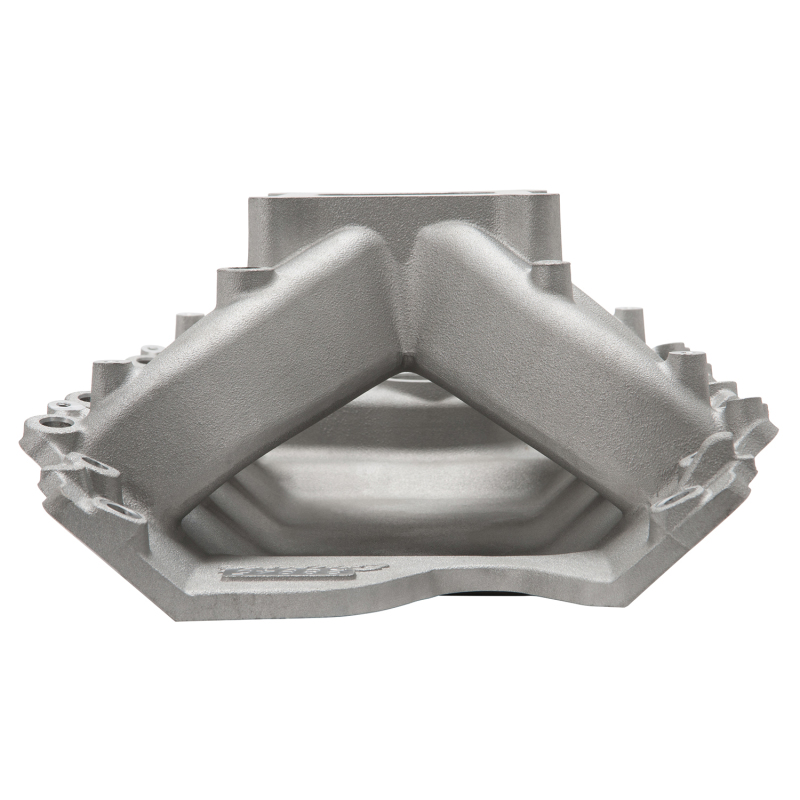

Edelbrock part #28945 Victor Jr. Holden EFI intake manifold is for use with competition 355+ c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. The Victor Jr. Holden is a single-plane design that is tuned for maximum air flow from 3500 to 7500 rpm. It features a taller design with long tapered runners for a broad operating rpm range. Will fit both stock 1988-1998 EFI style cylinder heads and the Edelbrock Holden VN RPM cylinder heads. It also features a 4150 flange for use with square-bore carburetors and throttle bodies. Includes extra material for porters to modify for use with 4500 series applications. The water outlet is machined for use with a small-block Chevy waterneck.
Product Overview
Edelbrock part #28945 Victor Jr. Holden EFI intake manifold is for use with competition 355+ c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. The Victor Jr. Holden is a single-plane design that is tuned for maximum air flow from 3500 to 7500 rpm. It features a taller design with long tapered runners for a broad operating rpm range. Will fit both stock 1988-1998 EFI style cylinder heads and the Edelbrock Holden VN RPM cylinder heads. It also features a 4150 flange for use with square-bore carburetors and throttle bodies. Includes extra material for porters to modify for use with 4500 series applications. The water outlet is machined for use with a small-block Chevy waterneck.
Features and Benefits
- Taller Designer w/Long Tapered Runners
Product Details
| Basic Operating RPM Range: | 3500-7500 |
|---|---|
| CNC Ported: | No |
| Center Maximum Height: | 6.950 |
| Cylinder Head Type: | Holden VN |
| Description: | Victor Jr. Series Intake Manifold |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Holden 253-308 |
| Finish: | Satin |
| Flange Type: | 4150 |
| Front Maximum Height: | 6.950 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | One |
| Part Number: | ede28945 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 3500-7500 |
| Rear Maximum Height: | 6.950 |
| Series: | Victor |
| Single Or Dual Plane Type: | Single |
| Usage: | Street/Hi-Performance |
| Vehicle Model: | Holden |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Holden:Small-Block VN EFI:253 (4.1L)/304 (4.9L)/308 (5.0L)/355 (5.7L)/383 (6.3L)
Part Type
Engine Intake Manifold
Features
- Taller Designer w/Long Tapered Runners
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 28945
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Edelbrock Victor Jr. EFI Intake Manifolds
- Product Attributes - UPC
- 085347289455
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Basic Operating RPM Range
- 3,500-7,500
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- No
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- No
- Product Attributes - Supplemental Bosses Machined
- Yes
- Product Attributes - Supplemental Boss Quantity
- Eight
- Product Attributes - Runners Included
- No
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Natural
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- The water outlet is machined for use with a small-block Chevy water neck. Fits 355 c.i.d. and up Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede28945 |
| SFX Item ID | 4237572 |
| Supplier Item Code | 4237572 |
| Manufacturer SKU | 28945 |
| Manufacturer UPC | 85347289455 |
| Alternative References | EDB28945, EDL-28945 |
Brochures
Compatibility
Holden:Small-Block VN EFI:253 (4.1L)/304 (4.9L)/308 (5.0L)/355 (5.7L)/383 (6.3L)
