Edelbrock Manifold Victor Jr GM Gen IV* L92 EFI
Edelbrock Manifold Victor Jr GM Gen IV* L92 EFI
A$1,101.67
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

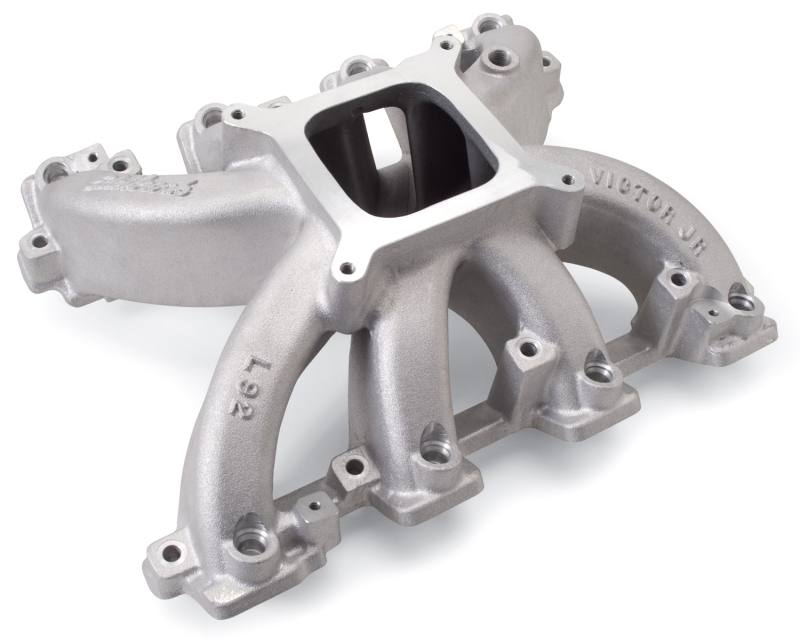

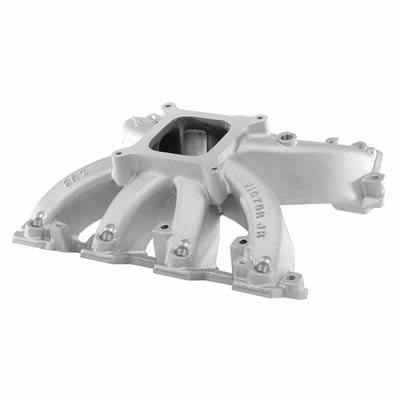

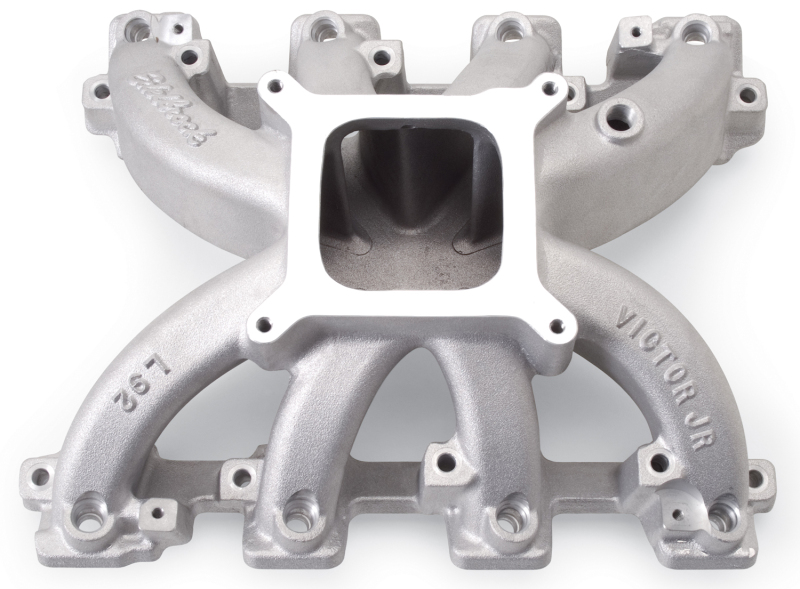

Edelbrock part #28455 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately).
Product Overview
Edelbrock part #28455 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately).
Features and Benefits
- Gen IV LS Engines With L92 Heads
Product Details
| Basic Operating RPM Range: | 3500-7500 |
|---|---|
| CNC Ported: | No |
| Center Maximum Height: | 6.000 |
| Cylinder Head Type: | Standard |
| Description: | Victor Jr. Series Intake Manifold |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Chevy Small Block LS1 |
| Finish: | Satin |
| Flange Type: | 4150 |
| Front Maximum Height: | 6.000 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | None; For Fuel Injection |
| Part Number: | ede28455 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 3500-7500 |
| Rear Maximum Height: | 6.000 |
| Series: | Victor |
| Single Or Dual Plane Type: | Single |
| Usage: | Racing |
| Vehicle Model: | Chevrolet |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L)
Part Type
Engine Intake Manifold
Features
- Gen IV LS Engines With L92 Heads
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 28455
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Edelbrock Victor Jr. EFI Intake Manifolds
- Product Attributes - UPC
- 085347284559
- Product Attributes - Cylinder Head Configuration
- Rectangular Port LS3/L76/L92/L99
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Basic Operating RPM Range
- 3,500-7,500
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- Yes
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- No
- Product Attributes - Supplemental Bosses Machined
- Yes
- Product Attributes - Supplemental Boss Quantity
- Eight
- Product Attributes - Runners Included
- No
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Natural
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Includes manifold bolts (4) 6 x 1.0 x 90mm (6) 6 x 1.0 x 50mm.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede28455 |
| SFX Item ID | 4237376 |
| Supplier Item Code | 4237376 |
| Manufacturer SKU | 28455 |
| Manufacturer UPC | 85347284559 |
| Alternative References | EDB28455, EDL-28455, L92 |
Brochures
Compatibility
Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L)
