Description

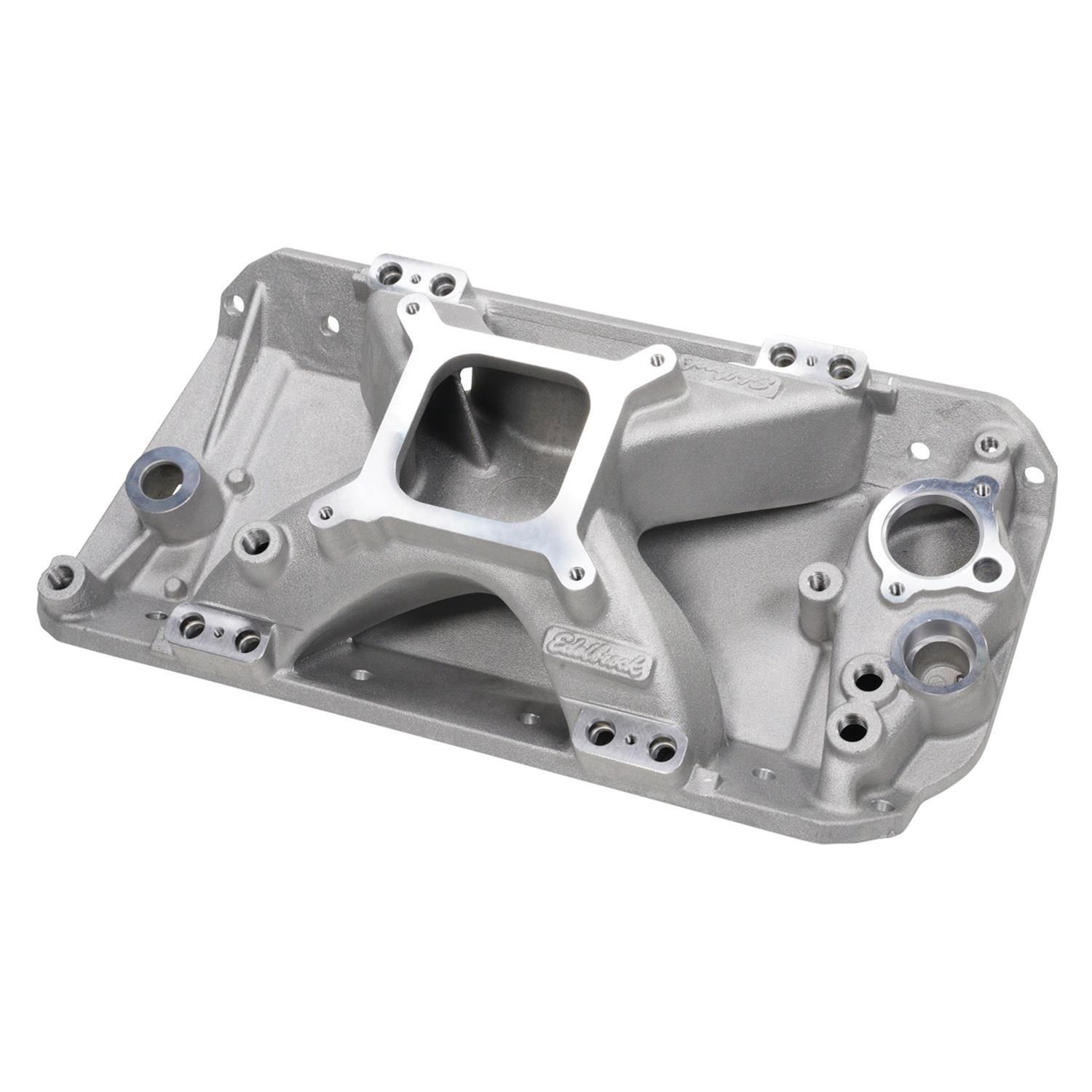

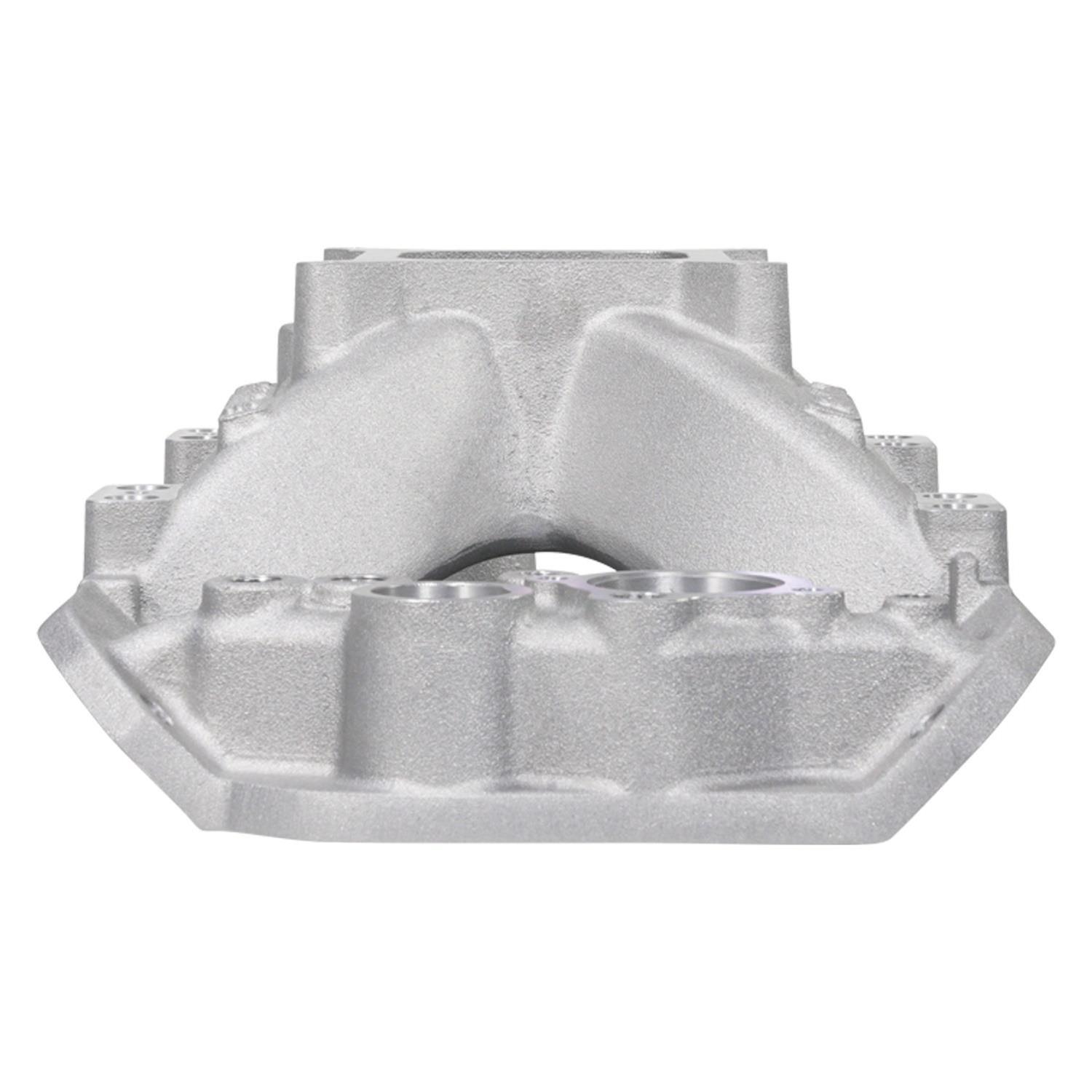

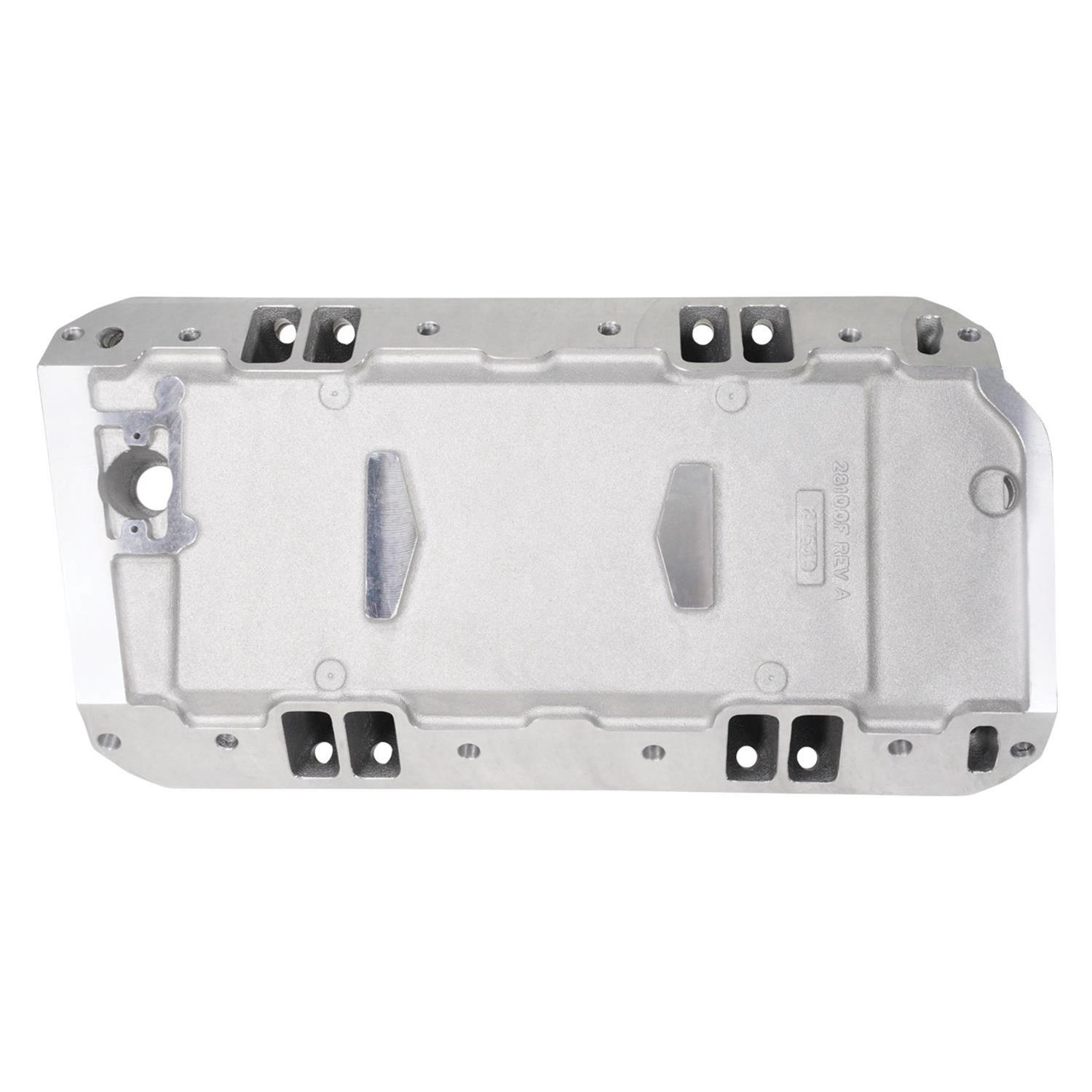

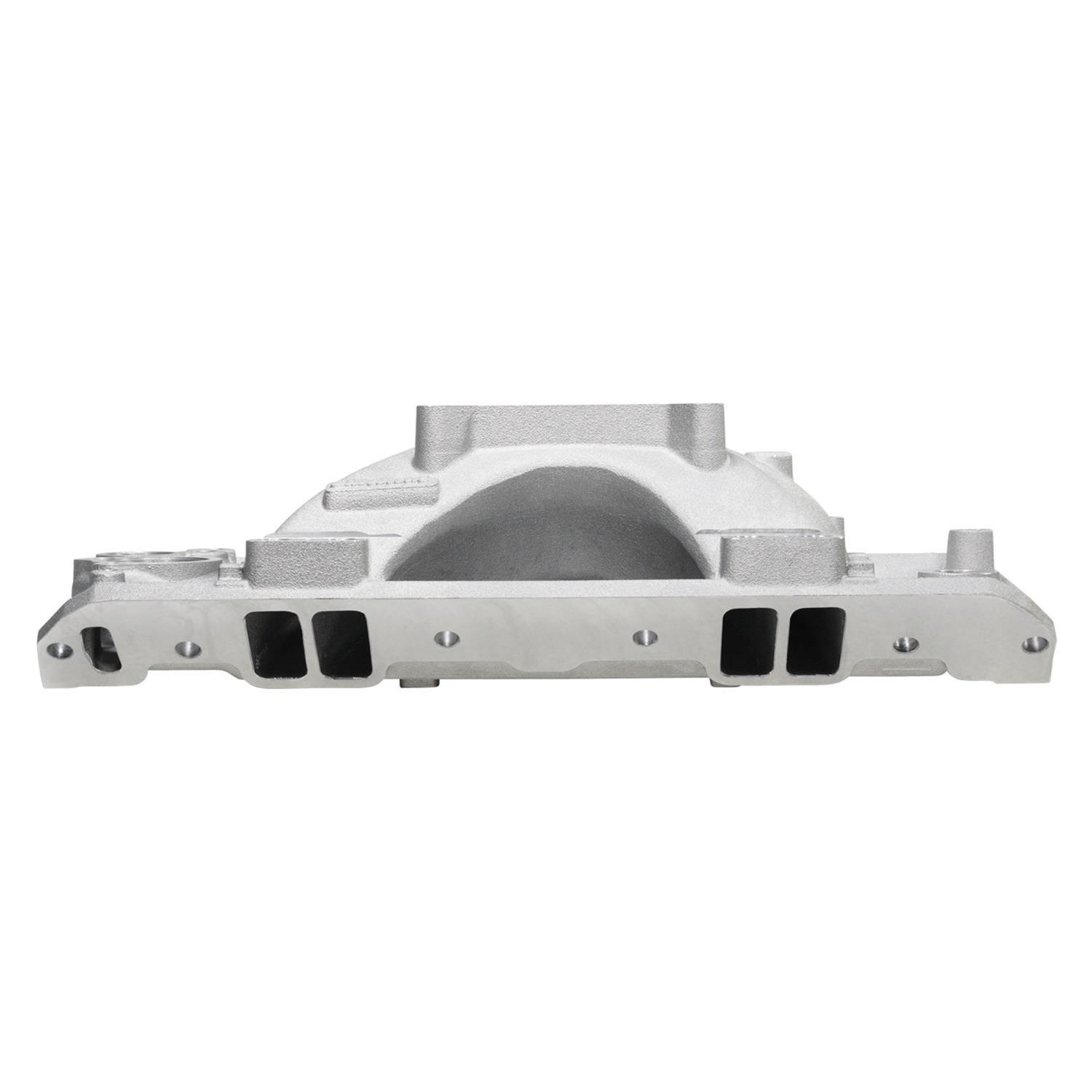

Edelbrock part #28115 Victor Jr. AMC intake manifold is designed for 1970-91 AMC 304-401 c.i.d. V8 engines in EFI applications.

Product Overview

Designed for 1970-91 304-401 c.i.d. and 1967-69 290-390 c.i.d. V8's, RPM Air-Gaps incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. For square-bore carbs. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. No provision for exhaust-heated chokes. No exhaust crossover. ** Carburetor Recommendations: Edelbrock Thunder Series AVS or Performer Series carb, 600-800 cfm Installation Notes: Recommended intake gasket: #7213 or Fel-Pro MS96011. #7531 must use factory style metal valley tray. #7531 has two center bolt holes offset. Manifold height: A-4.45", B-5.77"; Carb pad height: 5.11" . Port exit dimensions: 1.04" x 2.10". Bracket #8034 required for 1979 and later vehicles. Camshaft Recommendations: Performer RPM #7132.

Features and Benefits

Victor Jr. Series Race Intake Manifold

Product Details

Angle:	(Carb) 0
Basic Operating RPM Range:	3500-7500
Bolt Hole Centerline To Port Floor:	0.97
Bolt Hole Centerline To Port Roof:	1.16
CNC Ported:	No
Center Maximum Height:	5.74
Cylinder Head Type:	AMC 1970-91 304-401 CID
Description:	Victor Jr. Series Race Intake Manifold
EGR Port:	No
Emission:	N/A
Finish:	Satin
Flange Type:	4150
Front Maximum Height:	(A) 5.74
Gasket Or Seal Included:	No
Grade Type:	Performance
Material:	Aluminum
Mounting Hole Diameter:	(Carb Bolt) 5/16-18 UNC
Mounting Hole Quantity:	(Carb Bolt) 4
Number of Carbs:	None; For Fuel Injection
Part Number:	ede28115
Port Exit Dimensions:	1.06 x 2.13
Position:	N/A
Quantity:	Sold Individually
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	3500-7500
Rear Maximum Height:	(B) (Measured To Engine Block) 5.74
Recommended Use:	EFI Applications
Series:	Victor
Single Or Dual Plane Type:	Single Plane
Usage:	Racing
Vehicle Model:	AMC
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

AMC:Small-Block:304 (5.0L)/343 (5.6)/360 (5.9L)/390 (6.4)/401 (6.6L)

Part Type

Engine Intake Manifold

Data: v4.2 - Upd: 2026-10-13 23:11:24

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 28115
Product Attributes - Part Type: Intake Manifolds, Fuel Injected
Product Attributes - Product Line: Edelbrock Victor Jr. EFI Intake Manifolds
Product Attributes - UPC: 085347281152
Product Attributes - Cylinder Head Configuration: Stock
Product Attributes - Fuel Injection Style: Multi-port
Product Attributes - Basic Operating RPM Range: 3,500-7,000
Product Attributes - Intake Section Included: Complete
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Injectors Included: No
Product Attributes - Multi-Port Fuel Rails Included: No
Product Attributes - EGR: No
Product Attributes - Aftermarket Fuel Rail Required: No
Product Attributes - Throttle Body Included: No
Product Attributes - Supplemental Bosses Cast-In: Yes
Product Attributes - Supplemental Bosses Machined: Yes
Product Attributes - Supplemental Boss Quantity: Eight
Product Attributes - Runners Included: No
Product Attributes - Runners Removable: No
Product Attributes - Plenum Material: Aluminum
Product Attributes - Plenum Finish: Satin
Product Attributes - Base Material: Aluminum
Product Attributes - Base Color: Satin
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Includes standard oil fill and a raised PCV boss for better oil control. PCV grommet included in the kit. Requires fuel rail kit EDL-3210 with compact injectors; injector spacing is 1.500 in. center to center.
