Edelbrock Manifold Big Victor II BBC w/ Edelbrock Profiler or Dart Big Chief Heads Dominator Flange
Edelbrock Manifold Big Victor II BBC w/ Edelbrock Profiler or Dart Big Chief Heads Dominator Flange
A$2,095.11
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

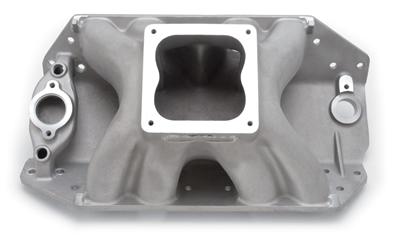

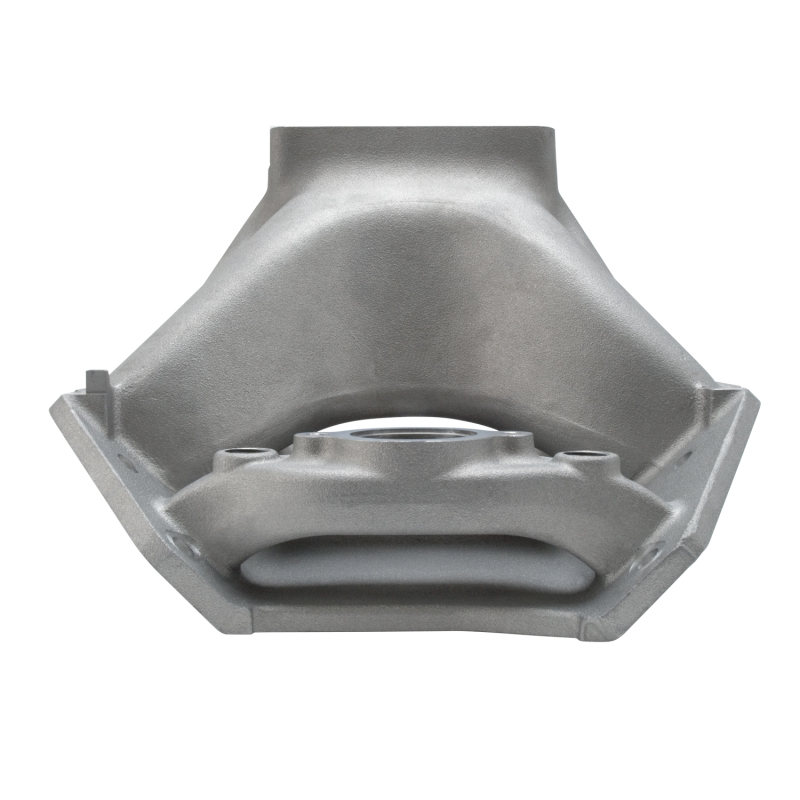

Edelbrock part #28001 Big Victor 2 Spread-Port intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification.
Product Overview
Edelbrock part #28001 Big Victor 2 Spread-Port intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification.
Features and Benefits
- Use Appropriate 4500-Series Carburetor
Product Details
| Basic Operating RPM Range: | 3500-8500 |
|---|---|
| CNC Ported: | No |
| Center Maximum Height: | 9.210 |
| Cylinder Head Type: | Big Chief |
| Description: | Big Victor 2 Intake Manifold |
| EGR Port: | No |
| Emission: | Without EGR |
| Engine Make/Size: | Chevy Big Block (396-502) |
| Finish: | Satin |
| Flange Type: | 4500 |
| Front Maximum Height: | 9.210 |
| Gasket Or Seal Included: | No |
| Grade Type: | Performance |
| Material: | Aluminum |
| Number of Carbs: | One |
| Part Number: | ede28001 |
| Position: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 3500-8500 |
| Rear Maximum Height: | 9.210 |
| Series: | Victor |
| Single Or Dual Plane Type: | Single |
| Usage: | Racing |
| Vehicle Model: | Chevrolet |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Big-Block Race
Part Type
Engine Intake Manifold
Features
- Use Appropriate 4500-Series Carburetor
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 28001
- Product Attributes - Part Type
- Intake Manifolds, Carbureted
- Product Attributes - Product Line
- Edelbrock Big Victor Spread-Port Intake Manifolds
- Product Attributes - UPC
- 085347280018
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Carburetor Quantity
- One
- Product Attributes - Intake Style
- Single plane
- Product Attributes - Basic Operating RPM Range
- 3,500-8,500
- Product Attributes - Intake Manifold Height
- 9.210 in.
- Product Attributes - Intake Color
- Natural
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - EGR
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede28001 |
| SFX Item ID | 4237332 |
| Supplier Item Code | 4237332 |
| Manufacturer SKU | 28001 |
| Manufacturer UPC | 85347280018 |
| Alternative References | EDB28001, EDL-28001 |
Brochures
Compatibility
Chevrolet:Big-Block Race
