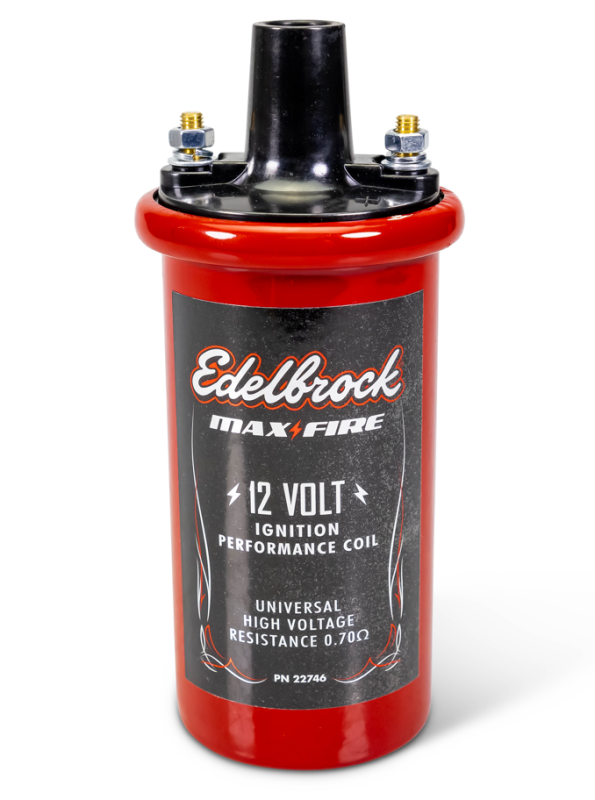

Edelbrock Ignition Coil - Electric Oil Filled - .70 PR Red w/ Black Top

SKU: EDE22746

Ignition Coils

EDE Ignition Coil...

Edelbrock

Edelbrock Ignition Coil - Electric Oil Filled - .70 PR Red w/ Black Top

SKU: EDE22746

Ignition Coils

EDE Ignition Coil...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

Edelbrock Ignition Coil #22746 is a high-output oil-filled cannister-style coil recommended for use with Pro-Flo 4 EFI applications and is also compatible with other aftermarket EFI and ready-to-run distributors. Features include a higher winding ratio for more voltage build-up and higher spark energy when compared to competitor coils. The main difference between the Edelbrock #22746 Coil and other cannister-style coils is the primary resistance of 0.7 ohms compared to 0.4 ohms for standard ignition systems. A primary resistance of 0.7 ohms is the minimum that we recommend for use with Pro-Flo 4 EFI systems.

Product Overview

Features and Benefits

Electronic Ignition Coil
Oil-filled cannister design protects coil windings from vibration
Higher winding ratio for more voltage build up and higher spark energy
Primary resistance of 0.7 ohms for use with Pro-Flo 4 EFI
Can be used with other aftermarket EFI

Product Details

Color:	Red
Connector Gender:	Female
Description:	High-output cannister-style ignition coil for Pro-Flo 4 and aftermarket EFI
Internal Construction Type:	Oil-Filled
Part Number:	ede22746
Primary Resistance:	0.70
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Universal

Part Type

Ignition Coil Assembly

Data: v4.2 - Upd: 2026-10-13 23:11:10

Features

Can be used with other aftermarket EFI
Electronic Ignition Coil
Higher winding ratio for more voltage build up and higher spark energy
Oil-filled cannister design protects coil windings from vibration
Primary resistance of 0.7 ohms for use with Pro-Flo 4 EFI

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 22746
Product Attributes - Part Type: Ignition Coils
Product Attributes - Product Line: Edelbrock Pro-Flo 4 Ignition Coils
Product Attributes - UPC: 085347227464
Product Attributes - Coil Style: Remote mount
Product Attributes - Primary Resistance: 0.700 ohms
Product Attributes - Coil Internal Construction: Oil-filled
Product Attributes - Coil Wire Attachment: Female/Socket
Product Attributes - Coil Color: Black
Product Attributes - Maximum Voltage: 45,000 V
Product Attributes - Turns Ratio: 100:1
Product Attributes - Secondary Resistance: 4.70K ohms
Product Attributes - Inductance: 8.00 mH
Product Attributes - Peak Current: 140 mA
Product Attributes - Spark Duration: 350 uS
Product Attributes - Mounting Bracket Included: No
Product Attributes - Coil Wire Included: No
Product Attributes - Ballast Resistor Included: No
Product Attributes - Coil Shape: Round
Product Attributes - Diameter (in.): 2.125 in.
Product Attributes - Height (in.): 6.000 in.
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: For use with the Edelbrock Pro-Flo 4 EFI systems an others requiring .700 ohms of resistance.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede22746
SFX Item ID	4237660
Supplier Item Code	4237660
Manufacturer SKU	22746
Manufacturer UPC	85347227464
Alternative References	EDL-22746
