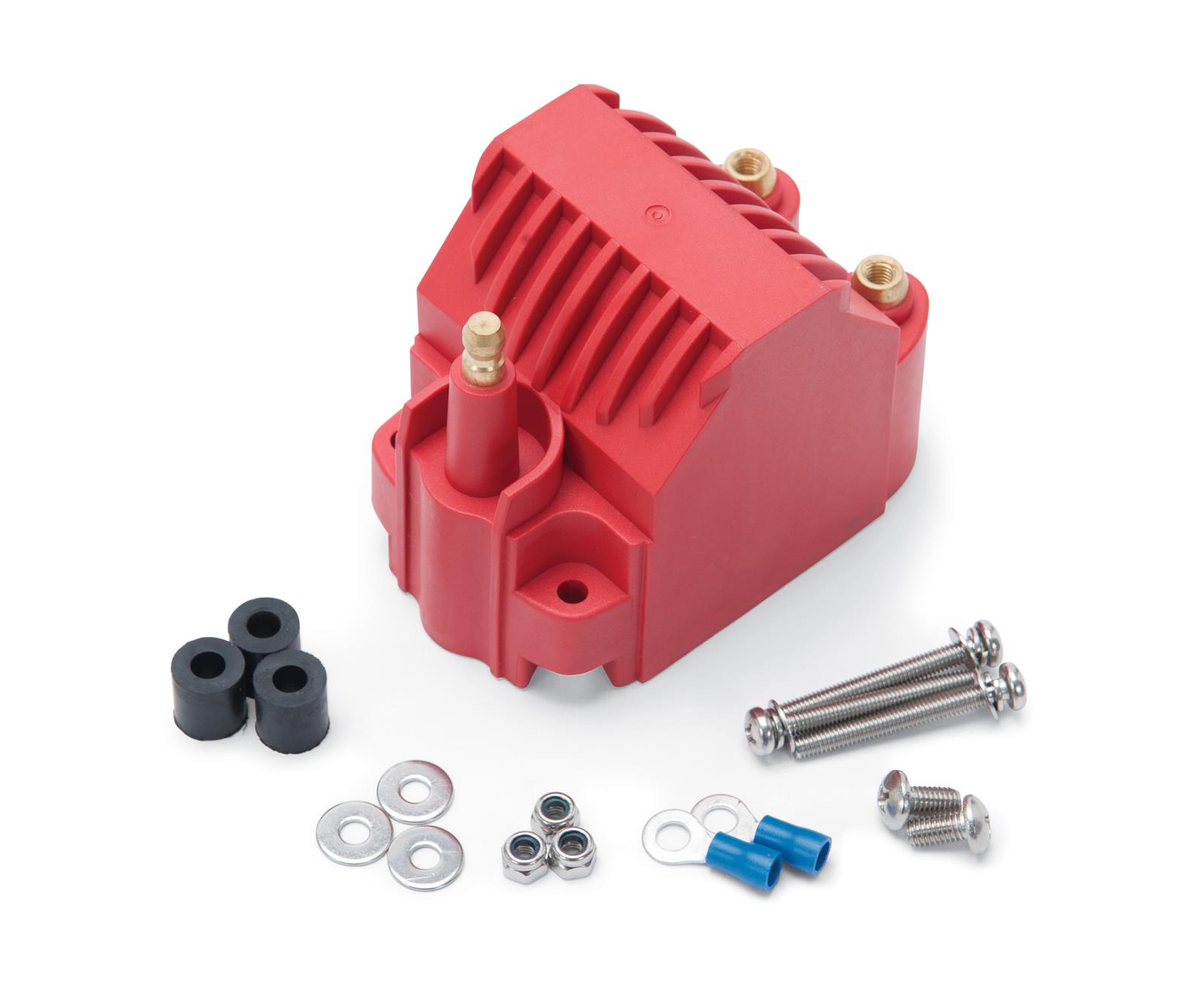

Edelbrock Max-Fire Universal High Output Dome Style Ignition Coil - Red

SKU: EDE22742

Ignition Coils

EDE Ignition Coil...

Edelbrock

Edelbrock Max-Fire Universal High Output Dome Style Ignition Coil - Red

SKU: EDE22742

Ignition Coils

EDE Ignition Coil...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

Edelbrock part #22742 Universal High Output Dome Style Ignition Coil with Red Finish, designed to work specifically with the high output inductive storage ignition module in the ready to run distributors. It features heavy gauge windings that are engineered to ensure maximum power at higher RPM levels. A molded housing of glass reinforced polyester and high temperature epoxy encapsulation resists shock and vibration while providing excellent thermal conductivity. The brass contacts ensure maximum conductivity, while the male tower offers superior boot/terminal retention and protecting from arch over. This is compatible for use with 6 Series CD ignition systems.

Product Overview

Features and Benefits

More Power at Higher RPM

Product Details

Description:	Max Fire Universal Ignition Coil
Part Number:	ede22742
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Part Type

Ignition Coil Assembly

Data: v4.2 - Upd: 2026-10-13 23:11:10

Features

More Power at Higher RPM

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 22742
Product Attributes - Part Type: Ignition Coils
Product Attributes - Product Line: Edelbrock Max-Fire Ignition Coils
Product Attributes - UPC: 085347227426
Product Attributes - Coil Style: Remote mount
Product Attributes - Primary Resistance: 0.450 ohms
Product Attributes - Coil Internal Construction: Oil-filled
Product Attributes - Coil Wire Attachment: Female/Socket
Product Attributes - Coil Color: Red
Product Attributes - Maximum Voltage: 45,000 V
Product Attributes - Turns Ratio: 116:1
Product Attributes - Secondary Resistance: 8.00K ohms
Product Attributes - Inductance: 4.50 mH
Product Attributes - Mounting Bracket Included: No
Product Attributes - Coil Wire Included: No
Product Attributes - Ballast Resistor Included: No
Product Attributes - Diameter (in.): 2.125 in.
Product Attributes - Height (in.): 6.000 in.
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: This Max Fire coil is designed for vehicles that have been converted to a electronic breaker-less distributor where a traditional oil filled can style coil is preferred for the correct vintage appearance. Designed for use with Ready to Run distributors and 6 series CDI ignition boxes.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede22742
SFX Item ID	4237674
Supplier Item Code	4237674
Manufacturer SKU	22742
Manufacturer UPC	N/A
Alternative References	2-valve;, EDB22742, EDL-22742
