Description
IMPORTANT NOTICE: Camshaft requires the use of either a melonized or cast iron distributor gear.

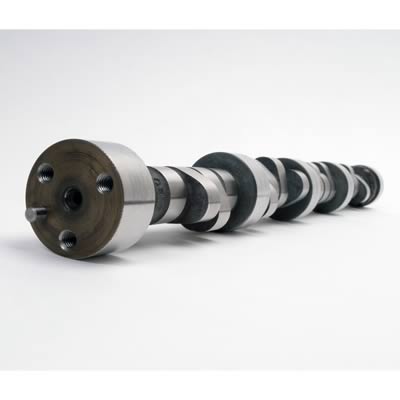

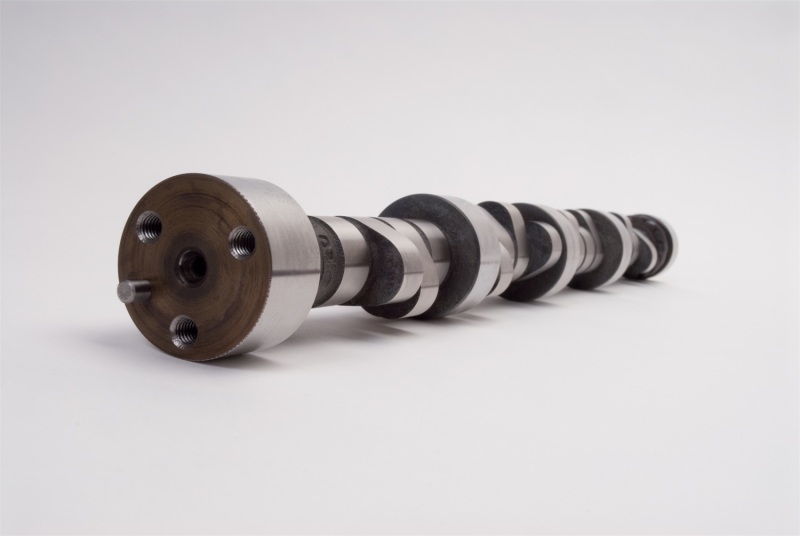

Edelbrock Rollin' Thunder Camshaft #2261 is designed for 396-502 V8 Mark IV and Gen V engines from 1967-95 and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 611HP and 573 Ft Lbs of Torque when paired with Victor Jr. intake manifold #2902 and Victor Jr. 24 Degree cylinder heads #77485 on a GM ZZ-502 short block. Not for 1965-66 Big Block Chevy's running a grooved rear cam journal. Use with a high stall torque converter and stock ratio rocker arms only.Camshaft specifications:- Intake duration: 236 Degrees- Exhaust duration: 245 Degrees- Intake lift: .625"- Exhaust lift: .639"- Lobe separation: 112 Degree- Intake Center Line: 109 Degree- Vacuum: 10"
Product Overview

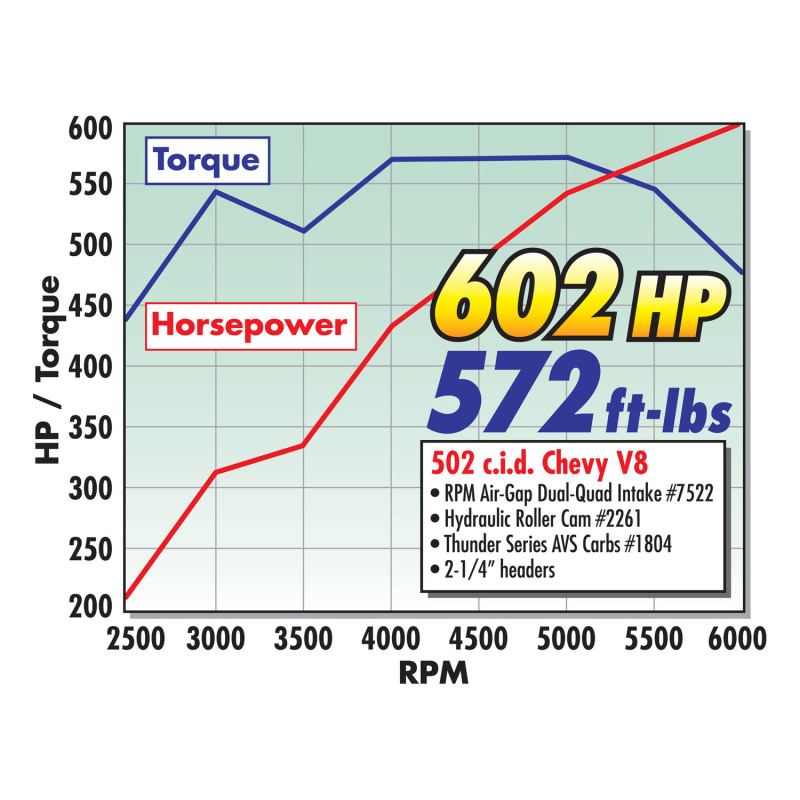

Edelbrock Rollin' Thunder Camshaft #2261 is designed for 396-502 V8 Mark IV and Gen V engines from 1967-95 and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 611HP and 573 Ft Lbs of Torque when paired with Victor Jr. intake manifold #2902 and Victor Jr. 24 Degree cylinder heads #77485 on a GM ZZ-502 short block. Not for 1965-66 Big Block Chevy's running a grooved rear cam journal. Use with a high stall torque converter and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 236 Degrees - Exhaust duration: 245 Degrees - Intake lift: .625" - Exhaust lift: .639" - Lobe separation: 112 Degree - Intake Center Line: 109 Degree - Vacuum: 10"
Features and Benefits
- Use Only Stock Ratio Rocker Arms
Product Details
| Advertised Exhaust Duration: | 329 |
|---|---|
| Advertised Intake Duration: | 335 |
| Cam Type: | Roller |
| Computer Controlled Compatible: | No |
| Description: | Rollin Thunder Camshaft |
| Engine Make/Size: | Chevy 454 |
| Exh. Duration @ .050 in. (Deg): | 245 |
| Exh. Duration Advertised (Deg): | 329 |
| Exhaust Duration at .050 inch Lift: | 245 |
| Exhaust Valve Lift (in.): | 0.639 |
| Exhaust Valve Lift with Factory Rocker Arm Ratio: | 0.639 |
| Exhaust Valve Lift: | 0.376 |
| Int. Duration @ .050 in. (Deg): | 236 |
| Int. Duration Advertised (Deg): | 335 |
| Intake Duration @ 0.050 in.: | 236 Degree |
| Intake Duration Advertised: | 335 |
| Intake Duration at .050 Inch Lift: | 236 |
| Intake Valve Lift (in.): | 0.625 |
| Intake Valve Lift with Factory Rocker Arm Ratio: | 0.625 |
| Intake Valve Lift: | 0.368 |
| Lifter Type: | Roller |
| Lobe Separation: | 112 |
| Part Number: | ede2261 |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Usage: | OEM |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L);Chevrolet:Big-Block Gen V:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Part Type
Engine Camshaft
Features
- Use Only Stock Ratio Rocker Arms
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 2261
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- Edelbrock Rollin' Thunder Hydraulic Roller Camshafts
- Product Attributes - UPC
- 085347022618
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Intake Duration at 050 inch Lift
- 236
- Product Attributes - Exhaust Duration at 050 inch Lift
- 245
- Product Attributes - Duration at 050 inch Lift
- 236 int./245 exh.
- Product Attributes - Advertised Intake Duration
- 335
- Product Attributes - Advertised Exhaust Duration
- 339
- Product Attributes - Advertised Duration
- 335 int./339 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.625 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.639 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.625 int./0.639 exh.
- Product Attributes - Lobe Separation (degrees)
- 112
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Camshaft requires the use of either a melonized or cast iron distributor gear.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede2261 |
| SFX Item ID | 4236906 |
| Supplier Item Code | 4236906 |
| Manufacturer SKU | 2261 |
| Manufacturer UPC | 85347022618 |
| Alternative References | v8;, EDB2261, EDL-2261 |
Brochures
Compatibility
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L);Chevrolet:Big-Block Gen V:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
