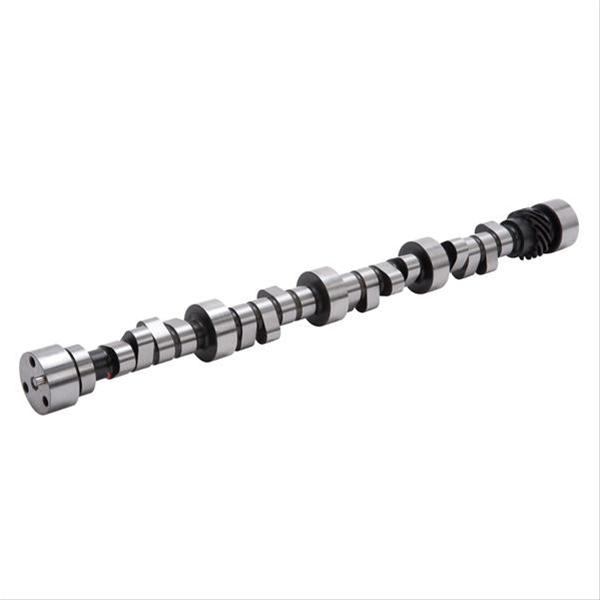

Edelbrock Camshaft Rollin Thunder 57-86 SBC V8 242-Deg /240-Deg Duration 594In/ 594In Lift
Edelbrock Camshaft Rollin Thunder 57-86 SBC V8 242-Deg /240-Deg Duration 594In/ 594In Lift
A$1,381.36
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Edelbrock Rollin' Thunder Camshaft #2231 is designed for 283-400 Chevy V8 engines and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 460HP and 460 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516, Thunder Series AVS Carb #1813 and Performer RPM E-Tec cylinder heads #60985 on a 383 c.i.d. Small block Chevy engine. Must be used with a thrust button, high stall torque converter, and stock ratio rocker arms only.Camshaft specifications:- Intake duration: 242 Degrees- Exhaust duration: 240 Degrees- Intake lift: .594"- Exhaust lift: .594"- Lobe separation: 112 Degree- Intake Center Line: 107 Degree- Vacuum: 11"
Product Overview
Edelbrock Rollin' Thunder Camshaft #2231 is designed for 283-400 Chevy V8 engines and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 460HP and 460 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516, Thunder Series AVS Carb #1813 and Performer RPM E-Tec cylinder heads #60985 on a 383 c.i.d. Small block Chevy engine. Must be used with a thrust button, high stall torque converter, and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 242 Degrees - Exhaust duration: 240 Degrees - Intake lift: .594" - Exhaust lift: .594" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 11"
Features and Benefits
- Dyno-Tested
Product Details
| Cam Type: | Roller |
|---|---|
| Computer Controlled Compatible: | No |
| Description: | Rollin Thunder Camshaft |
| Engine Make/Size: | Chevy Small Block (262-400) |
| Exh. Duration @ .050 in. (Deg): | 240 |
| Exh. Duration Advertised (Deg): | N/A |
| Exhaust Duration at .050 inch Lift: | 240 |
| Exhaust Valve Lift (in.): | 0.594 |
| Exhaust Valve Lift with Factory Rocker Arm Ratio: | 0.594 |
| Exhaust Valve Lift: | 0.594 in. |
| Int. Duration @ .050 in. (Deg): | 242 |
| Int. Duration Advertised (Deg): | N/A |
| Intake Duration @ 0.050 in.: | 242 Degree |
| Intake Duration Advertised: | N/A |
| Intake Duration at .050 Inch Lift: | 242 |
| Intake Valve Lift (in.): | 0.594 |
| Intake Valve Lift with Factory Rocker Arm Ratio: | 0.594 |
| Intake Valve Lift: | 0.594 in. |
| Lifter Type: | Roller |
| Lobe Separation: | 112 |
| Part Number: | ede2231 |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Usage: | Street/Performance |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen I:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Part Type
Engine Camshaft
Features
- Dyno-Tested
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 2231
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- Edelbrock Rollin' Thunder Hydraulic Roller Camshafts
- Product Attributes - UPC
- 085347022311
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Intake Duration at 050 inch Lift
- 242
- Product Attributes - Exhaust Duration at 050 inch Lift
- 240
- Product Attributes - Duration at 050 inch Lift
- 242 int./240 exh.
- Product Attributes - Advertised Intake Duration
- 305
- Product Attributes - Advertised Exhaust Duration
- 314
- Product Attributes - Advertised Duration
- 305 int./314 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.594 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.594 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.594 int./0.594 exh.
- Product Attributes - Lobe Separation (degrees)
- 112
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede2231 |
| SFX Item ID | 4236899 |
| Supplier Item Code | 4236899 |
| Manufacturer SKU | 2231 |
| Manufacturer UPC | 85347022311 |
| Alternative References | v8;, EDB2231, EDL-2231, 242-Deg, /240-Deg, 594In/ |
Brochures
Compatibility
Chevrolet:Small-Block Gen I:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
