Edelbrock Camshaft Perf RPM Hydraulic Roller BB Chrysler 361-440
Edelbrock Camshaft Perf RPM Hydraulic Roller BB Chrysler 361-440
A$1,294.29
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description

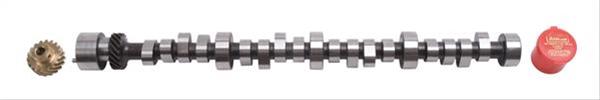

Edelbrock Rollin' Thunder Camshaft #2206 is designed for 383-400-440 Chrysler V8 engines and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 571HP and 523 Ft Lbs of Torque when paired with Pro-Flo XT EFI system #3544,Performer RPM cylinder heads #60925 and Edelbrock roller tappet lifter set #97483. Must use included bronze distributor gear, failure to do so could result in engine failure. Camshaft utilizes three bolt configuration. Must use with high stall torque converter only.Camshaft specifications:- Intake duration: 240 Degrees- Exhaust duration: 248 Degrees- Intake lift: .540"- Exhaust lift: .545"- Lobe separation: 112 Degree- Intake Center Line: 107 Degree- Vacuum: 10"
Product Overview
Edelbrock Rollin' Thunder Camshaft #2206 is designed for 383-400-440 Chrysler V8 engines and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 571HP and 523 Ft Lbs of Torque when paired with Pro-Flo XT EFI system #3544,Performer RPM cylinder heads #60925 and Edelbrock roller tappet lifter set #97483. Must use included bronze distributor gear, failure to do so could result in engine failure. Camshaft utilizes three bolt configuration. Must use with high stall torque converter only. Camshaft specifications: - Intake duration: 240 Degrees - Exhaust duration: 248 Degrees - Intake lift: .540" - Exhaust lift: .545" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 10"
Features and Benefits
- Increased Performance
Product Details
| Advertised Exhaust Duration: | 308 |
|---|---|
| Advertised Intake Duration: | 300 |
| Cam Type: | Roller |
| Computer Controlled Compatible: | No |
| Description: | Rollin Thunder Camshaft |
| Engine Make/Size: | Mopar 383-440 |
| Exh. Duration @ .050 in. (Deg): | 308 |
| Exh. Duration Advertised (Deg): | 308 |
| Exhaust Duration at .050 inch Lift: | 248 |
| Exhaust Valve Lift (in.): | 0.545 |
| Exhaust Valve Lift with Factory Rocker Arm Ratio: | 0.545 |
| Exhaust Valve Lift: | 0.363 |
| Int. Duration @ .050 in. (Deg): | 300 |
| Int. Duration Advertised (Deg): | 300 |
| Intake Duration @ 0.050 in.: | 300 Degree |
| Intake Duration Advertised: | 300 |
| Intake Duration at .050 Inch Lift: | 240 |
| Intake Valve Lift (in.): | 0.540 |
| Intake Valve Lift with Factory Rocker Arm Ratio: | 0.540 |
| Intake Valve Lift: | 0.360 |
| Lifter Type: | Roller |
| Lobe Separation: | 112 |
| Part Number: | ede2206 |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Usage: | Street/Performance |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L);Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L)
Part Type
Engine Camshaft
Features
- Increased Performance
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 2206
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- Edelbrock Rollin' Thunder Hydraulic Roller Camshafts
- Product Attributes - UPC
- 085347022069
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Intake Duration at 050 inch Lift
- 240
- Product Attributes - Exhaust Duration at 050 inch Lift
- 248
- Product Attributes - Duration at 050 inch Lift
- 240 int./248 exh.
- Product Attributes - Advertised Intake Duration
- 300
- Product Attributes - Advertised Exhaust Duration
- 308
- Product Attributes - Advertised Duration
- 300 int./308 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.540 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.545 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.540 int./0.545 exh.
- Product Attributes - Lobe Separation (degrees)
- 112
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede2206 |
| SFX Item ID | 4236666 |
| Supplier Item Code | 4236666 |
| Manufacturer SKU | 2206 |
| Manufacturer UPC | 85347022069 |
| Alternative References | EDB2206, EDL-2206 |
Brochures
Compatibility
Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L);Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L)
