Edelbrock RPM Hydraulic Roller Cam Only 283-400 Chevy 87-99
Edelbrock RPM Hydraulic Roller Cam Only 283-400 Chevy 87-99
A$936.01
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
IMPORTANT NOTICE: Designed to work with factory engines originally equipped with hydraulic roller cam and lifters. Will not work with factory fuel injection. Requires minimum of a 2,400-2,600 stall torque converter.

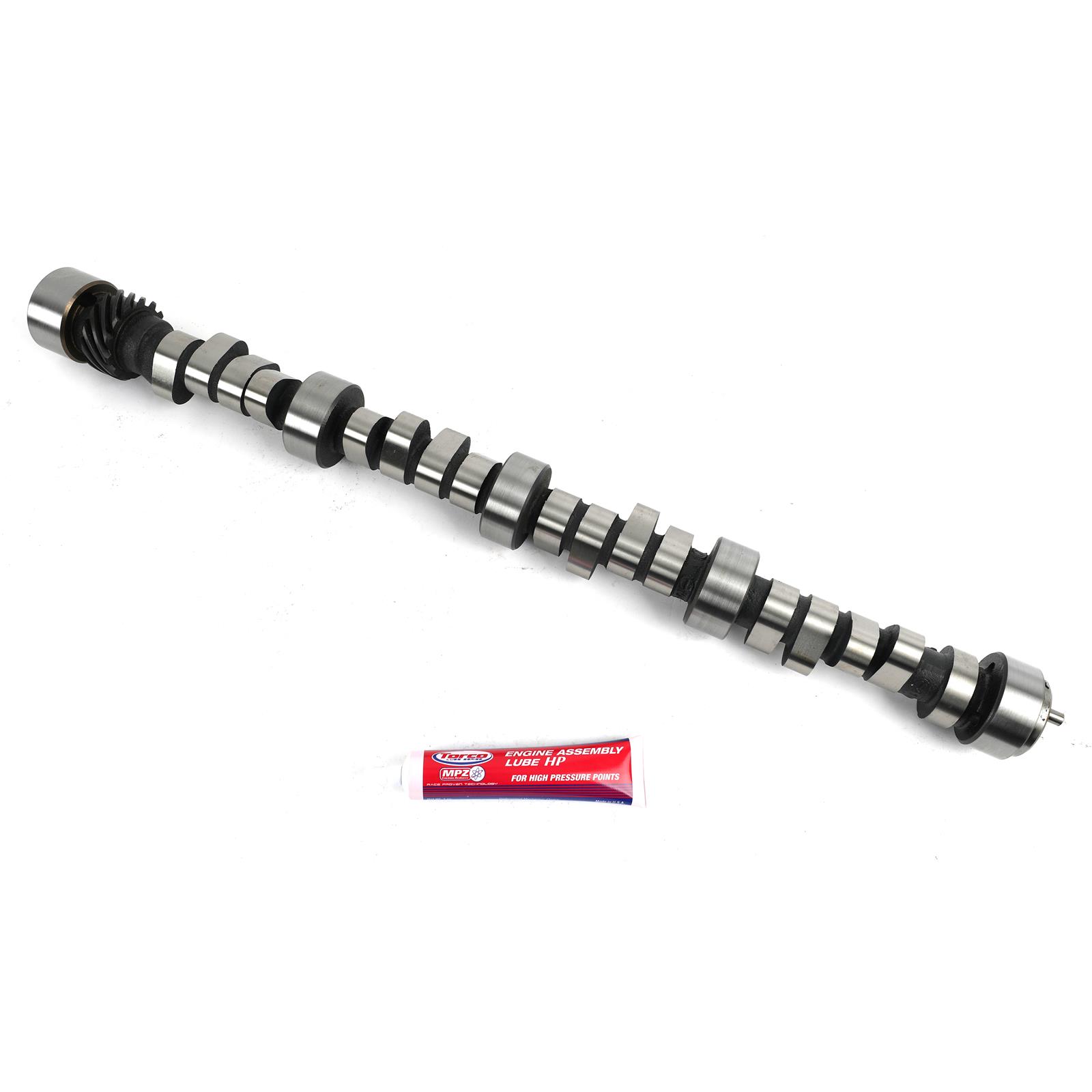

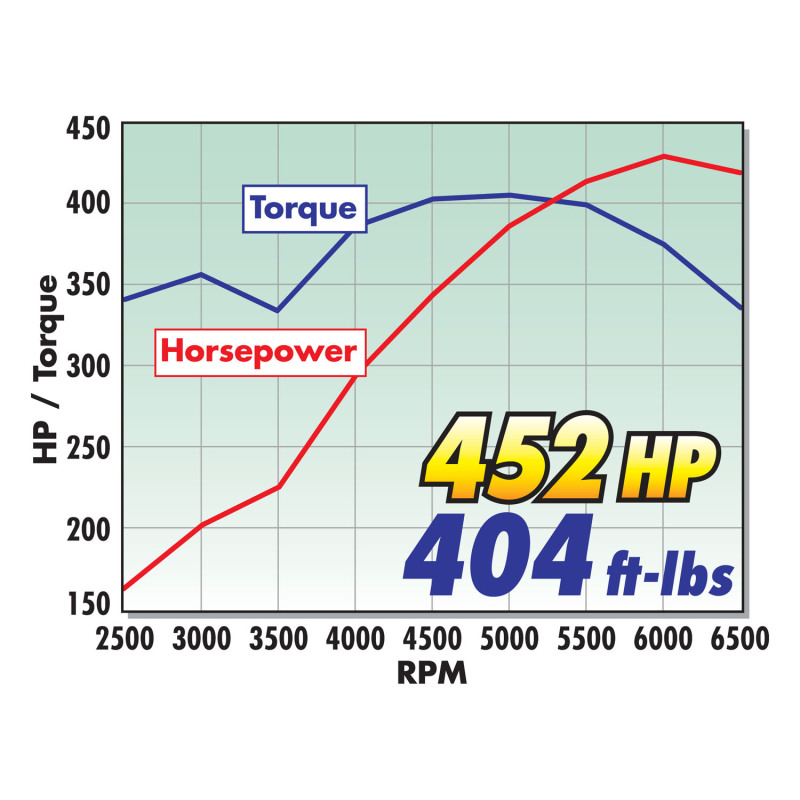

Edelbrock Rollin' Thunder Camshaft #2204 is designed for 283-400 Chevy V8 engines from 1987-Later (Non LT1/Gen III) and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 435HP and 435 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516, Thunder Series AVS Carb #1813 and Performer RPM E-Tec cylinder heads #60795. Use with high stall torque converter and stock ratio rocker arms only.Camshaft specifications:- Intake duration: 234 Degrees- Exhaust duration: 238 Degrees- Intake lift: .539"- Exhaust lift: .548"- Lobe separation: 112 Degree- Intake Center Line: 107 Degree- Vacuum: 12"
Product Overview
Edelbrock Rollin' Thunder Camshaft #2204 is designed for 283-400 Chevy V8 engines from 1987-Later (Non LT1/Gen III) and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 435HP and 435 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516, Thunder Series AVS Carb #1813 and Performer RPM E-Tec cylinder heads #60795. Use with high stall torque converter and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 234 Degrees - Exhaust duration: 238 Degrees - Intake lift: .539" - Exhaust lift: .548" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 12"
Features and Benefits
- Use Only Stock Ratio Rocker Arms
Product Details
| Advertised Exhaust Duration: | 300 |
|---|---|
| Advertised Intake Duration: | 296 |
| Cam Type: | Roller |
| Computer Controlled Compatible: | No |
| Description: | Rollin Thunder Camshaft |
| Engine Make/Size: | Chevy 305-350 (Centerbolt) |
| Exh. Duration @ .050 in. (Deg): | 238 |
| Exh. Duration Advertised (Deg): | 300 |
| Exhaust Duration at .050 inch Lift: | 238 |
| Exhaust Valve Lift (in.): | 0.548 |
| Exhaust Valve Lift with Factory Rocker Arm Ratio: | 0.548 |
| Exhaust Valve Lift: | 0.365 |
| Int. Duration @ .050 in. (Deg): | 234 |
| Int. Duration Advertised (Deg): | 296 |
| Intake Duration @ 0.050 in.: | 234 Degree |
| Intake Duration Advertised: | 296 |
| Intake Duration at .050 Inch Lift: | 234 |
| Intake Valve Lift (in.): | 0.539 |
| Intake Valve Lift with Factory Rocker Arm Ratio: | 0.539 |
| Intake Valve Lift: | 0.539 |
| Lifter Type: | Roller |
| Lobe Separation: | 112 |
| Part Number: | ede2204 |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range: | 1500-6500 |
| Usage: | OEM |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block Gen I:350 (5.7L)
Part Type
Engine Camshaft
Features
- Use Only Stock Ratio Rocker Arms
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 2204
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- Edelbrock Rollin' Thunder Hydraulic Roller Camshafts
- Product Attributes - UPC
- 085347022045
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street
- Product Attributes - Basic Operating RPM Range
- 1,500-6,500
- Product Attributes - Intake Duration at 050 inch Lift
- 234
- Product Attributes - Exhaust Duration at 050 inch Lift
- 238
- Product Attributes - Duration at 050 inch Lift
- 234 int./238 exh.
- Product Attributes - Advertised Intake Duration
- 296
- Product Attributes - Advertised Exhaust Duration
- 300
- Product Attributes - Advertised Duration
- 296 int./300 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.539 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.548 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.539 int./0.548 exh.
- Product Attributes - Lobe Separation (degrees)
- 112
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed to work with factory engines originally equipped with hydraulic roller cam and lifters. Will not work with factory fuel injection. Requires minimum of a 2,400-2,600 stall torque converter.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede2204 |
| SFX Item ID | 4236671 |
| Supplier Item Code | 4236671 |
| Manufacturer SKU | 2204 |
| Manufacturer UPC | 85347022045 |
| Alternative References | v8;, thunder;?2205;, 1987-later;, EDB2204, EDL-2204 |
Compatibility
Chevrolet:Small-Block Gen I:350 (5.7L)
