Description

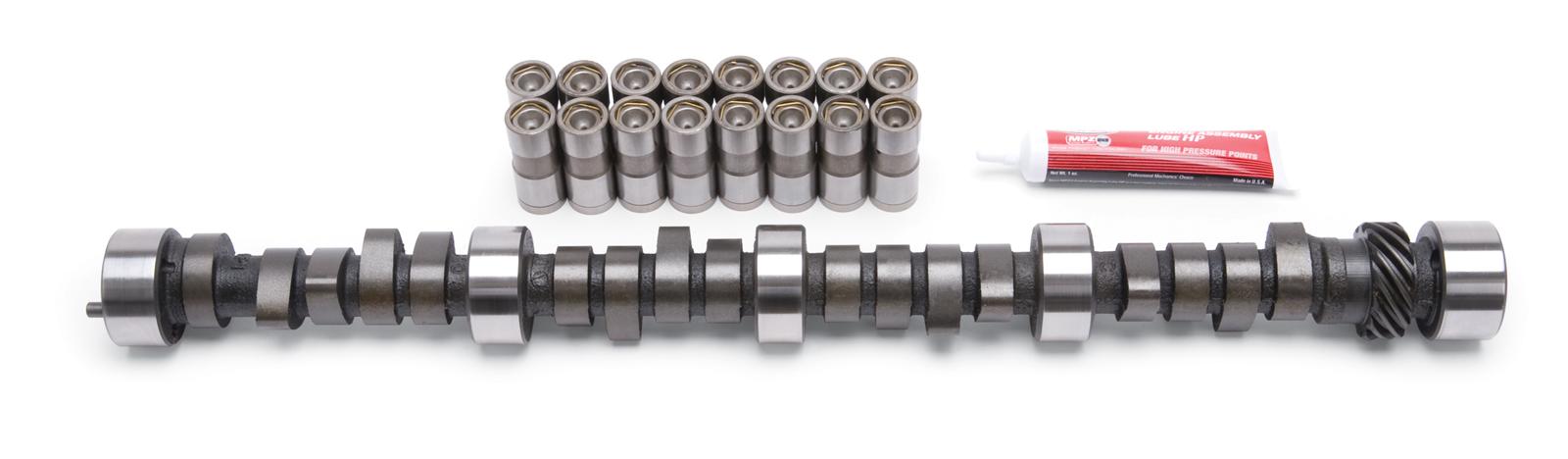

Edelbrock Performer-Plus Camshaft #2117 is designed for 283-400 Chevy V8 engines from 1957-86 and produce optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus #2117 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 338 HP and 389 Ft Lbs of Torque when paired with Performer EPS intake manifold #2701, E-Street cylinder heads #5089 and E-Street EFI system #3664.Camshaft specifications:- Intake duration: 218 Degrees- Exhaust duration: 224 Degrees- Intake lift: .464"- Exhaust lift: .470"- Lobe separation: 114 Degree- Intake Center Line: 110 Degree- Vacuum: 15"

Product Overview

Edelbrock Performer-Plus Camshaft #2117 is designed for 283-400 Chevy V8 engines from 1957-86 and produce optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus #2117 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 338 HP and 389 Ft Lbs of Torque when paired with Performer EPS intake manifold #2701, E-Street cylinder heads #5089 and E-Street EFI system #3664. Camshaft specifications: - Intake duration: 218 Degrees - Exhaust duration: 224 Degrees - Intake lift: .464" - Exhaust lift: .470" - Lobe separation: 114 Degree - Intake Center Line: 110 Degree - Vacuum: 15"

Features and Benefits

Take the Guesswork Out of Camshaft Selection!

Product Details

Cam Type:	Cast
Computer Controlled Compatible:	No
Description:	Performer-Plus Camshaft Kit
Engine Make/Size:	Chevy Small Block (262-400)
Exh. Duration @ .050 in. (Deg):	224
Exh. Duration Advertised (Deg):	N/A
Exhaust Duration at .050 inch Lift:	224
Exhaust Valve Lift (in.):	0.47
Exhaust Valve Lift:	0.470
Grade Type:	Performance
Int. Duration @ .050 in. (Deg):	218
Int. Duration Advertised (Deg):	N/A
Intake Duration .050 Inch Lift:	218
Intake Duration @ 0.050 in.:	218 Degree
Intake Duration Advertised:	N/A
Intake Valve Lift (in.):	0.464
Intake Valve Lift:	0.464
Lifter Materials:	Hardened Steel
Lifter Type:	Hydraulic
Lobe Separation:	114
Part Number:	ede2117
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
RPM Range:	1000-5600
Usage:	Street/Performance
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Chevrolet:Small-Block Gen I:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Part Type

Engine Camshaft and Lifter Kit

Data: v4.2 - Upd: 2026-10-15 19:38:10

Features

Take the Guesswork Out of Camshaft Selection!

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 2117
Product Attributes - Part Type: Camshaft Kits
Product Attributes - Product Line: Edelbrock Performer-Plus Cam and Lifter Kits
Product Attributes - UPC: 085347021178
Product Attributes - Cam Style: Hydraulic flat tappet
Product Attributes - Basic Operating RPM Range: 1,000-5,500
Product Attributes - Camshaft Use: Street
Product Attributes - Intake Duration at 050 inch Lift: 218
Product Attributes - Exhaust Duration at 050 inch Lift: 224
Product Attributes - Advertised Intake Duration: 309
Product Attributes - Advertised Exhaust Duration: 314
Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio: 0.464 in.
Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.470 in.
Product Attributes - Lobe Separation (degrees): 114
Product Attributes - Camshaft Gear Attachment: 3-bolt
Product Attributes - Computer-Controlled Compatible: No
Product Attributes - Lifters Included: Yes
Product Attributes - Lifter Style: Hydraulic flat tappet
Product Attributes - Valve Springs Included: No
Product Attributes - Retainers Included: No
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Timing Chain and Gears Included: No
Product Attributes - Assembly Lubricant Included: Yes
Product Attributes - Pushrods Included: No
Product Attributes - Rocker Arms Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Valve Springs Required: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: Edelbrock's 2117 is a camshaft designed specifically for use with Edelbrocks E-Street EFI systems and are also used in the Edelbrock E-Street EFI Crate Engine package.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede2117
SFX Item ID	4236510
Supplier Item Code	4236510
Manufacturer SKU	2117
Manufacturer UPC	85347021178
Alternative References	EDB2117, EDL-2117
