Edelbrock Top End Kit for S/B Ford 351W - 460+ HP w/ RPM Xtreme Heads and Roller Camshaft
Edelbrock Top End Kit for S/B Ford 351W - 460+ HP w/ RPM Xtreme Heads and Roller Camshaft
Sale ends in Calculating...
A$10,136.09 A$10,275.53
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

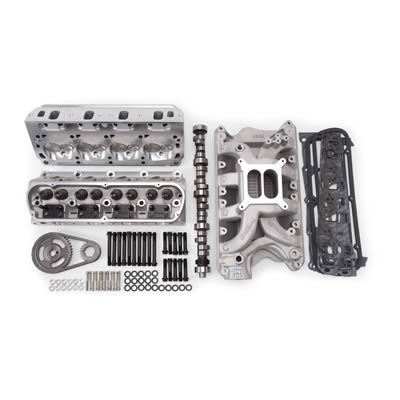

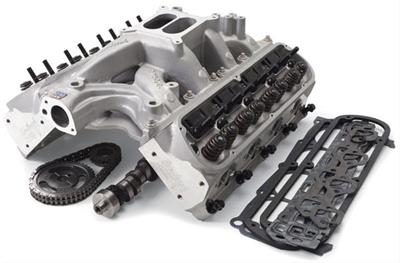

Edelbrock part #2090 Performer RPM Top End Kit is designed for 1969-95 Small-Block Ford 351W V-8 engines. This Top End Kit produced 451 HP & 433 TQ on a 351W c.i.d engine with 9.5:1 compression. The kit delivers improved performance in street applications from 1,500 to 6,500 rpm range. This kit includes RPM Air-Gap intake manifold, RPM cylinder heads, pushrods and Rollin' Thunder Hydraulic Roller camshaft, timing chain, complete bolt kits and an Edelbrock gasket set. To get great performance out of any engine, all of the components must work together. For over 30 years, the Edelbrock Total Power Package system has solved the parts matching puzzle for many street performance enthusiasts. With the introduction our Power Package Top End Kits, now you can get the best Edelbrock performance in-one-box, under one part number with "no guesswork" involved.
Product Overview
Edelbrock part #2090 Performer RPM Top End Kit is designed for 1969-95 Small-Block Ford 351W V-8 engines. This Top End Kit produced 451 HP & 433 TQ on a 351W c.i.d engine with 9.5:1 compression. The kit delivers improved performance in street applications from 1,500 to 6,500 rpm range. This kit includes RPM Air-Gap intake manifold, RPM cylinder heads, pushrods and Rollin' Thunder Hydraulic Roller camshaft, timing chain, complete bolt kits and an Edelbrock gasket set. To get great performance out of any engine, all of the components must work together. For over 30 years, the Edelbrock Total Power Package system has solved the parts matching puzzle for many street performance enthusiasts. With the introduction our Power Package Top End Kits, now you can get the best Edelbrock performance in-one-box, under one part number with "no guesswork" involved.
Features and Benefits
- Includes Almost Everything You Need
Product Details
| Cylinder Head Port Shape: | Rectangular |
|---|---|
| Description: | Power Package Top End Kit |
| Engine Make/Size: | Ford 5.8L/351W |
| Family: | Performer RPM |
| Finish: | Satin |
| Gasket Material: | MP-IIN Micropore |
| Grade Type: | Performance |
| Horsepower: | Possible 451 |
| Minimum Torque: | Possible 433 |
| Part Number: | ede2090 |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series: | Performer RPM |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Ford:Small-Block Windsor:351 (5.8L)
Part Type
Engine Top End Kit
Features
- Includes Almost Everything You Need
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 2090
- Product Attributes - Part Type
- Top End Kits
- Product Attributes - Product Line
- Edelbrock Total Power Package 451 HP 351W Small Block Ford Top-End Engine Kits
- Product Attributes - UPC
- 085347020904
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Camshaft Included
- Yes
- Product Attributes - Camshaft Type
- Hydraulic Roller Tappet
- Product Attributes - Duration at 050 inch Lift
- 235 int./238 exh.
- Product Attributes - Advertised Duration
- 299 int./302 exh.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.573 int./0.582 exh.
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Fuel Delivery Style
- Carbureted
- Product Attributes - Carburetor Included
- No
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Fuel Rails Included
- No
- Product Attributes - Fuel Injectors Included
- No
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - Intake Color
- Natural
- Product Attributes - Intake Style
- Dual plane
- Product Attributes - Intake Manifold Name
- Edelbrock Performer RPM Air Gap
- Product Attributes - Carburetor Flange
- Square bore
- Product Attributes - Timing Chain and Gears Included
- Yes
- Product Attributes - Lifters Included
- Yes
- Product Attributes - Gaskets Included
- Yes
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Combustion Chamber Volume (cc)
- 59
- Product Attributes - CNC-Machined Combustion Chamber
- Yes
- Product Attributes - Intake Runner Volume (cc)
- 185cc
- Product Attributes - Exhaust Runner Volume (cc)
- 75cc
- Product Attributes - CNC-Machined Intake Runner
- Yes
- Product Attributes - CNC-Machined Exhaust Runner
- Yes
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Intake Port Shape
- Rectangular
- Product Attributes - Exhaust Port Shape
- Square
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Angle
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Intake Valve Diameter (in.)
- 2.020 in.
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.570 in.
- Product Attributes - Intake Valve Angle
- 18
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.300 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Stem Seal Style
- Positive stop
- Product Attributes - Valve Stem Seal Material
- Viton®
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Studs Included
- Yes
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Rocker Arm Nut Thread Size
- 7/16 in.-20
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Guideplate Pushrod Size
- 5/16 in.
- Product Attributes - Pushrods Included
- Yes
- Product Attributes - Valve Covers Included
- No
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Manganese steel
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Valve Seat Machine Style
- 3-angle
- Product Attributes - Valve Seat Material
- Ductile iron
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes intake, E-CNC heads, cam, lifters, timing chain and gears, push rods, gasket and bolt sets. 8mm stem valves and are equipped with conical valve springs.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede2090 |
| SFX Item ID | 4236780 |
| Supplier Item Code | 4236780 |
| Manufacturer SKU | 2090 |
| Manufacturer UPC | 85347020904 |
| Alternative References | EDB2090, EDL-2090, 351W |
Brochures
Compatibility
Ford:Small-Block Windsor:351 (5.8L)
