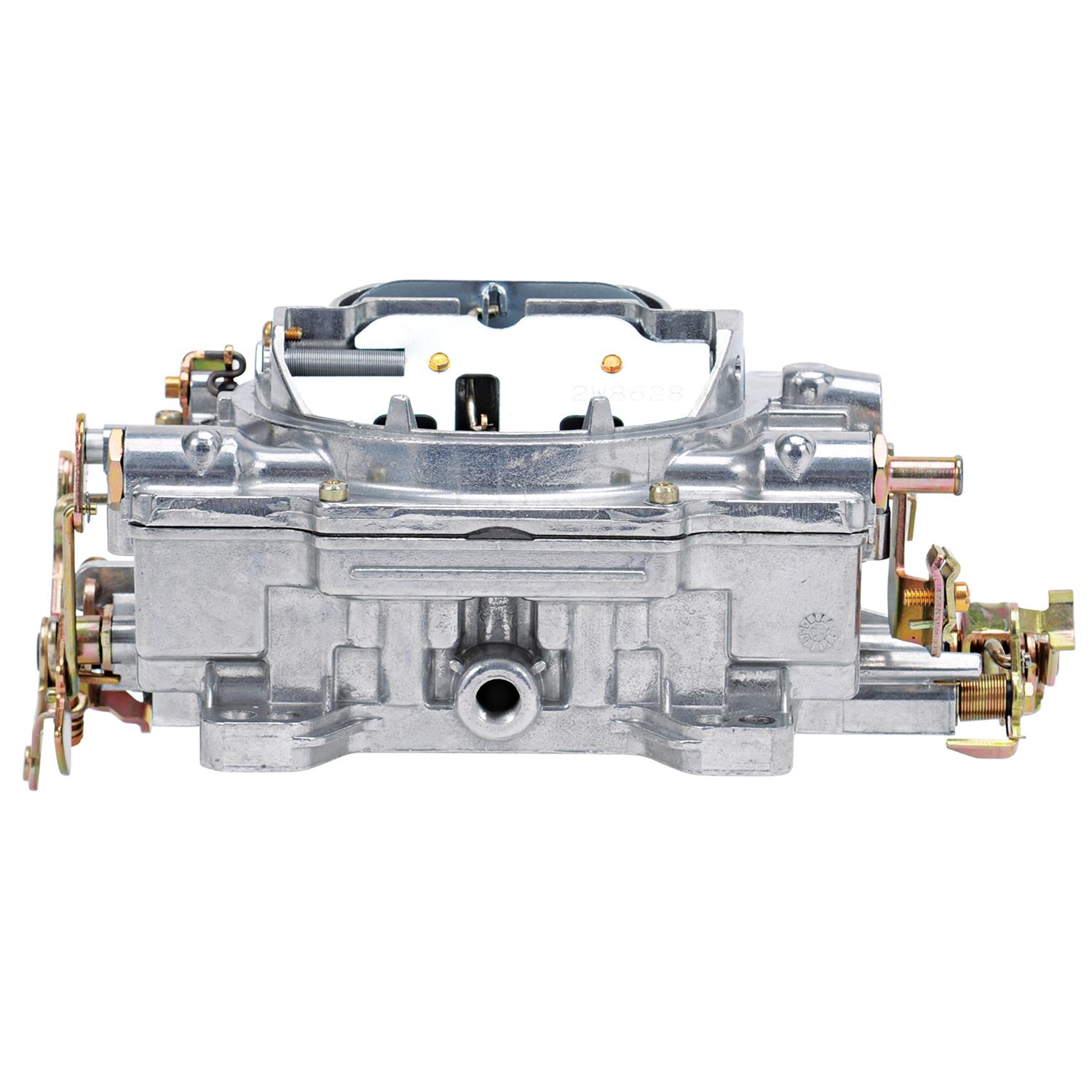

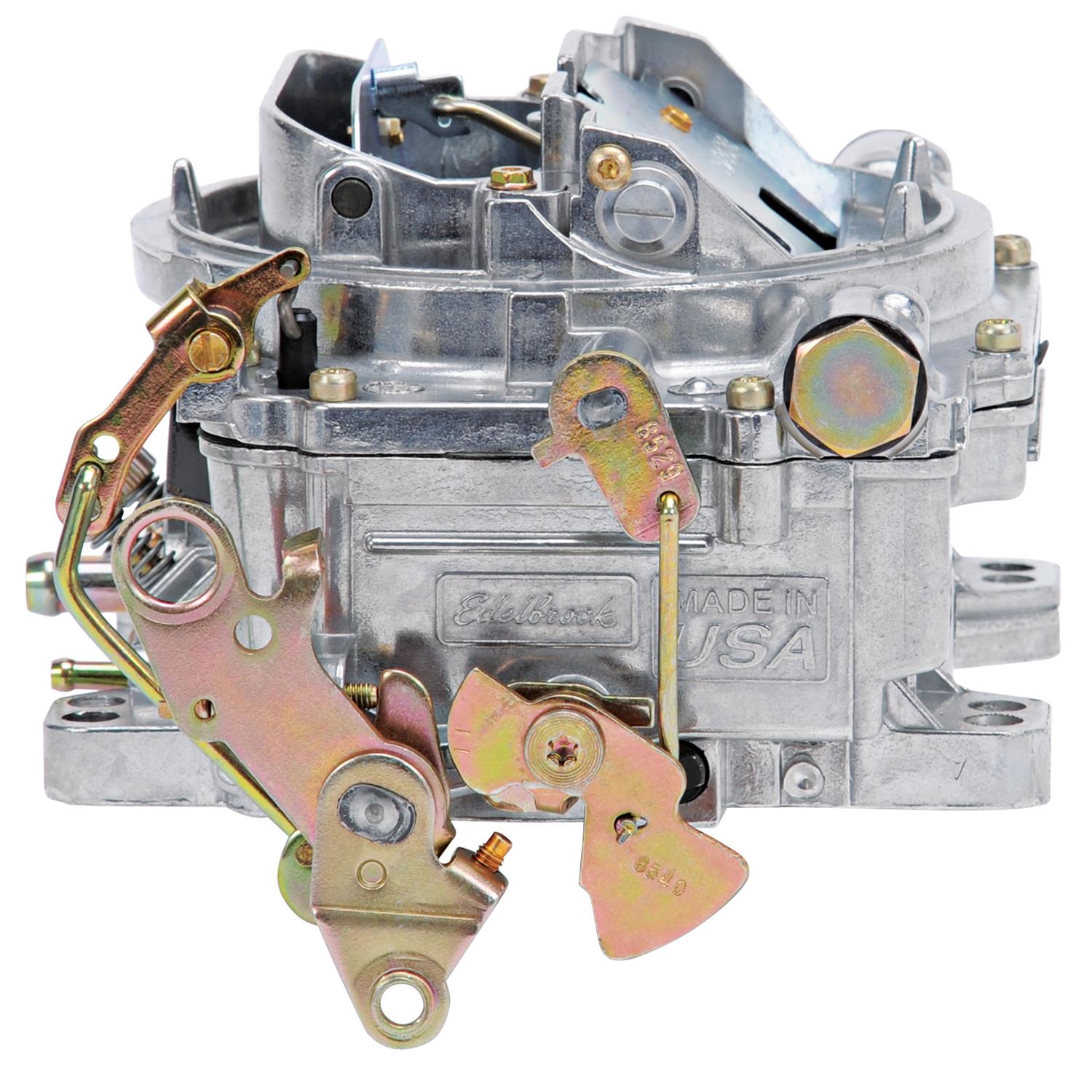

Edelbrock Carburetor AVS2 Series 4-Barrel 650 CFM Off-Road Manual Choke Satin Finish (Non-EGR)

SKU: EDE1915

Carburetors

EDE AVS2 Carb...

Edelbrock

Edelbrock Carburetor AVS2 Series 4-Barrel 650 CFM Off-Road Manual Choke Satin Finish (Non-EGR)

SKU: EDE1915

Carburetors

EDE AVS2 Carb...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

The Edelbrock AVS2 Off-Road Carburetor #1915 with Manual Choke is a special 650 CFM version of the proven #1905 street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. Like AVS2 street carbs, the AVS2 Off-Road features an annular ring with eight orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 Off-Road booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low- to mid-RPM range without sacrificing top-end power.For superior fuel control over rough terrain, the AVS2 Off-Road features a new spring-loaded needle and seat along with a spring-loaded anti-syphon ball in the accelerator pump circuit to prevent fuel drip common with standard carbs in off-road situations.The AVS2 Off-Road is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 Off-Road carbs have the unique ability to "hold a tune" when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 Off-Road offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application.AVS2 Off-Road Carburetors feature a two-piece design for easy tuning that allows you to make float level adjustments or replace internal components without draining the carburetor or removing it from the engine. The AVS2 Off-Road 650 CFM is available with a manual (#1915) or electric (#1916) choke and is manufactured by Edelbrock in the USA.

Product Overview

The Edelbrock AVS2 Off-Road Carburetor #1915 with Manual Choke is a special 650 CFM version of the proven #1905 street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. Like AVS2 street carbs, the AVS2 Off-Road features an annular ring with eight orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 Off-Road booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low- to mid-RPM range without sacrificing top-end power. For superior fuel control over rough terrain, the AVS2 Off-Road features a new spring-loaded needle and seat along with a spring-loaded anti-syphon ball in the accelerator pump circuit to prevent fuel drip common with standard carbs in off-road situations. The AVS2 Off-Road is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 Off-Road carbs have the unique ability to "hold a tune? when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 Off-Road offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. AVS2 Off-Road Carburetors feature a two-piece design for easy tuning that allows you to make float level adjustments or replace internal components without draining the carburetor or removing it from the engine. The AVS2 Off-Road 650 CFM is available with a manual (#1915) or electric (#1916) choke and is manufactured by Edelbrock in the USA.

Features and Benefits

AVS2 Series Carburetor
Annular Flow Booster technology
Spring-loaded needle and seat for rough terrain
Spring-loaded anti-syphon ball eliminates drip
No power valves to blow out
Available with manual or electric choke

Product Details

Barrel Quantity:	4 Barrel
Barrel:	OEM
Body Height:	3.25
Booster Type:	annular
Bore Diameter:	Primary Bore 1.44; Secondary Bore 1.75
CFM:	650
Choke Type:	Manual
Choke:	Manual
Condition:	New
Description:	AVS2 Series Carburetor
EGR Port:	No
Emission:	N/A
Finish:	Satin
Flange Shape:	Square
Flange:	Square Bore
Gasket Or Seal Included:	Yes
Main Venturi Diameter:	1.19
Material:	Aluminum
Maximum Flow Rating:	650
Metering Rod Size:	.073 x .042
Part Number:	ede1915
Primary Jet Diameter:	0.104
Primary Power Valve:	N/A
RGL:	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Secondary Jet Diameter:	0.098
Series:	AVS2
Spring Force:	5" Hg (Orange)
Throttle Bore:	1.750 in.
Type:	NA
Usage:	OEM
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Zinc; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Part Type

Carburetor

Data: v4.2 - Upd: 2026-10-17 02:06:49

Features

Annular Flow Booster technology
Available with manual or electric choke
No power valves to blow out
Spring-loaded anti-syphon ball eliminates drip
Spring-loaded needle and seat for rough terrain

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 1915
Product Attributes - Part Type: Carburetors
Product Attributes - Product Line: Edelbrock AVS2 Series Carburetors
Product Attributes - UPC: 085347019151
Product Attributes - CFM: 650
Product Attributes - Fuel Category: Gasoline
Product Attributes - Remanufactured: No
Product Attributes - Number of Barrels: 4
Product Attributes - Carburetor Flange: Square bore
Product Attributes - Choke: Manual
Product Attributes - Secondary Type: Mechanical
Product Attributes - Fuel Inlet: Dual
Product Attributes - Primary Jet Size: 101
Product Attributes - Secondary Jet Size: 98
Product Attributes - Carburetor Color: Satin
Product Attributes - Ford Kickdown: No
Product Attributes - Booster Type: Annular
Product Attributes - Throttle Linkage Type: Universal
Product Attributes - Carburetor Height (in.): 3.250 in.
Product Attributes - Quantity: Sold individually.
Product Attributes - Special Attention: Features an spring loaded needle and seat for offroad use.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede1915
SFX Item ID	4237610
Supplier Item Code	4237610
Manufacturer SKU	1915
Manufacturer UPC	85347019151
Alternative References	avs2, EDB1915, EDL-1915, 4-Barrel
