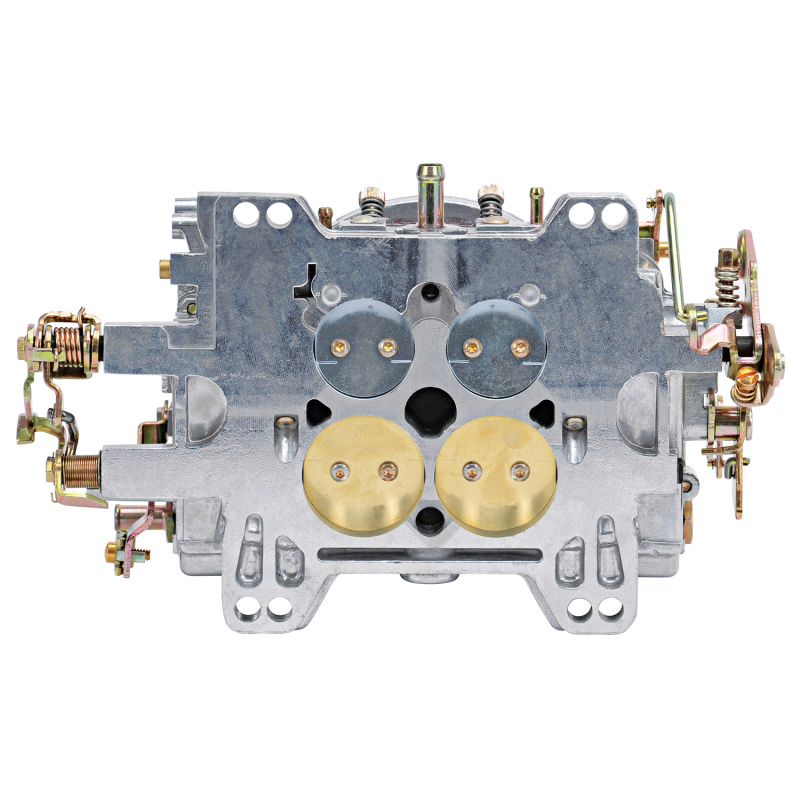

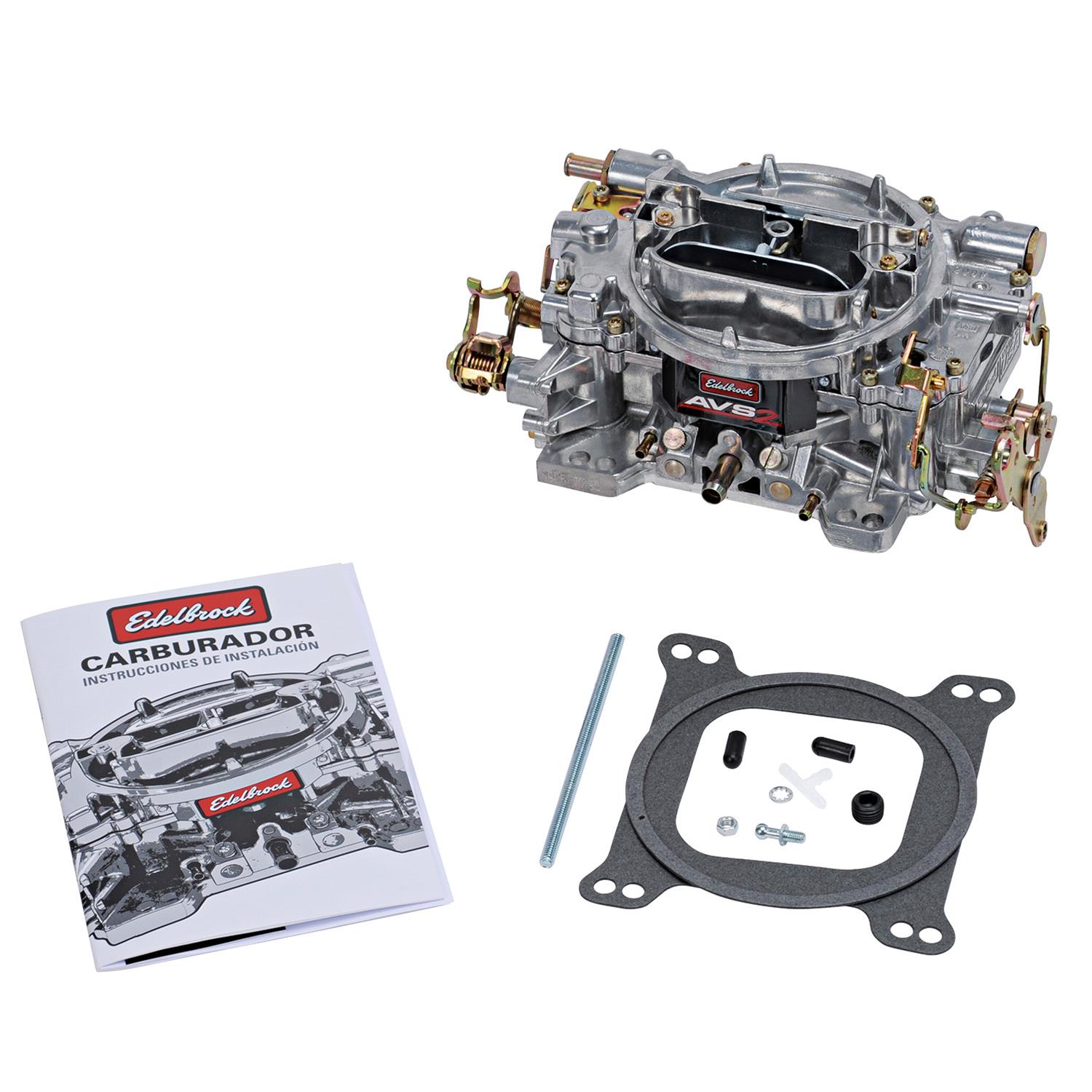

Edelbrock Carburetor Thunder Series 4-Barrel 800 CFM Manual Choke Calibration Satin Finish
Edelbrock Carburetor Thunder Series 4-Barrel 800 CFM Manual Choke Calibration Satin Finish
A$1,146.49
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Edelbrock's Annular Flow Booster technology brings superior fuel atomization to all high-horsepower small- and big-block engines with the AVS2 800 CFM Manual Choke Carburetor #1912 that is specially calibrated to make power. Annular Flow Boosters deliver near EFI-like drivability that you can feel as soon as you step on the gas. Fuel distribution is refined by eight equally spaced orifices in the booster rings that replace down-leg boosters which simply dump raw fuel into the venturi. Flat spots are completely eliminated, and throttle response in the low- to mid-RPM range is improved tremendously without sacrificing that top-end power that Edelbrock is known for. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to "hold a tune" when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. The AVS2 features a two-piece ease-of-tuning design that lets you make float level adjustments or replace internal components without draining the fuel from the carburetor or removing it from the engine. The AVS2 800 CFM #1912 comes with a manual (#1912) or electric (#1913) choke in satin or chrome-like EnduraShine finish. All AVS2 Series carburetors, like Edelbrock's popular Performer Series and Thunder Series AVS, are designed, manufactured, assembled and calibrated by Edelbrock in the USA.
Product Overview
Edelbrock's Annular Flow Booster technology brings superior fuel atomization to all high-horsepower small- and big-block engines with the AVS2 800 CFM Manual Choke Carburetor #1912 that is specially calibrated to make power. Annular Flow Boosters deliver near EFI-like drivability that you can feel as soon as you step on the gas. Fuel distribution is refined by eight equally spaced orifices in the booster rings that replace down-leg boosters which simply dump raw fuel into the venturi. Flat spots are completely eliminated, and throttle response in the low- to mid-RPM range is improved tremendously without sacrificing that top-end power that Edelbrock is known for. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to "hold a tune" when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. The AVS2 features a two-piece ease-of-tuning design that lets you make float level adjustments or replace internal components without draining the fuel from the carburetor or removing it from the engine. The AVS2 800 CFM #1912 comes with a manual (#1912) or electric (#1913) choke in satin or chrome-like EnduraShine finish. All AVS2 Series carburetors, like Edelbrock's popular Performer Series and Thunder Series AVS, are designed, manufactured, assembled and calibrated by Edelbrock in the USA.
Features and Benefits
- Fuel Distribution
Product Details
| Barrel Quantity: | 4 Barrel |
|---|---|
| Barrel: | Four |
| Body Height: | 3.25 |
| Booster Type: | annular |
| Bore Diameter: | Primary Bore 1.75; Secondary Bore 1.75 |
| CFM: | 800 |
| Choke Type: | Manual |
| Choke: | Manual |
| Condition: | New |
| Description: | Thunder Series AVS2 Carburetor |
| EGR Port: | No |
| Emission: | Without EGR |
| Finish: | Satin |
| Flange Shape: | Square |
| Flange: | Square Bore |
| Gasket Or Seal Included: | Yes |
| Main Venturi Diameter: | 1.525 |
| Material: | Aluminum |
| Maximum Flow Rating: | 800 |
| Metering Rod Size: | .065 x .052 |
| Part Number: | ede1912 |
| Primary Jet Diameter: | 0.104 |
| Primary Power Valve: | N/A |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Jet Diameter: | 0.104 |
| Series: | AVS2 |
| Spring Force: | 5" Hg (Orange) |
| Throttle Bore: | 1.750 in. |
| Type: | Double |
| Usage: | Street/Hi-Performance |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Part Type
Carburetor
Features
- Fuel Distribution
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 1912
- Product Attributes - Part Type
- Carburetors
- Product Attributes - Product Line
- Edelbrock AVS2 Series Carburetors
- Product Attributes - UPC
- 085347019120
- Product Attributes - CFM
- 800
- Product Attributes - Fuel Category
- Gasoline
- Product Attributes - Remanufactured
- No
- Product Attributes - Number of Barrels
- 4
- Product Attributes - Carburetor Flange
- Square bore
- Product Attributes - Choke
- Manual
- Product Attributes - Secondary Type
- Mechanical
- Product Attributes - Fuel Inlet
- Dual
- Product Attributes - Primary Jet Size
- 104
- Product Attributes - Secondary Jet Size
- 104
- Product Attributes - Carburetor Color
- Satin
- Product Attributes - Ford Kickdown
- No
- Product Attributes - Booster Type
- Annular
- Product Attributes - Throttle Linkage Type
- Universal
- Product Attributes - Carburetor Height (in.)
- 3.250 in.
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1912 |
| SFX Item ID | 4237580 |
| Supplier Item Code | 4237580 |
| Manufacturer SKU | 1912 |
| Manufacturer UPC | 85347019120 |
| Alternative References | avs2, EDB1912, EDL-1912, 4-Barrel |
