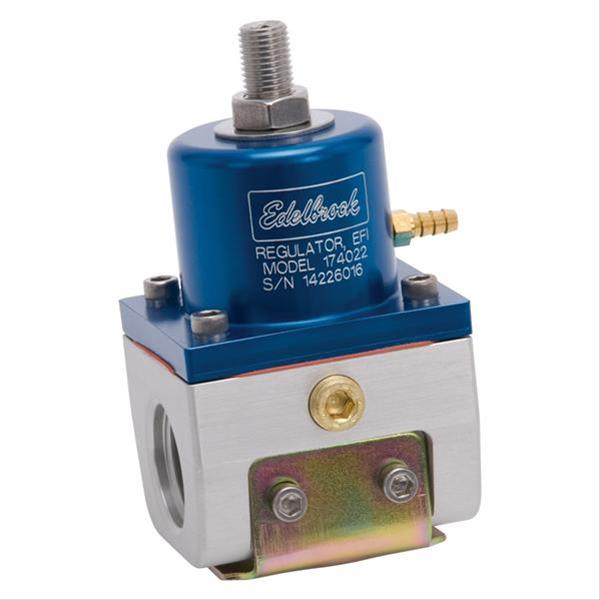

Edelbrock Fuel Pressure Regulator EFI 180 GPH 35-90 PSI -10In/Out -6 Return Blue/Clear

SKU: EDE174022

Fuel Pressure Regulators

EDE Fuel Regulator...

Edelbrock

Edelbrock Fuel Pressure Regulator EFI 180 GPH 35-90 PSI -10In/Out -6 Return Blue/Clear

SKU: EDE174022

Fuel Pressure Regulators

EDE Fuel Regulator...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

Edelbrock fuel pressure regulators #174022 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.

Product Overview

Features and Benefits

Mounting Bracket/Fittings/Hardware Included

Product Details

Adjustable:	Yes
Description:	EFI Fuel Pressure Regulator
Gauge Port:	Yes
Inlet Port Diameter:	-10.0
Inlet Quantity:	1
Inlet Type:	Port
Maximum Pressure Reading:	90
Mounting Type:	Bracket
Outlet Port Diameter:	-10.0
Outlet Quantity:	1
Outlet Type:	Port
Part Number:	ede174022
Port Quantity:	4
Pressure:	0-100 PSI
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Part Type

Fuel Injection Pressure Regulator

Data: v4.2 - Upd: 2026-10-13 23:13:06

Features

Mounting Bracket/Fittings/Hardware Included

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 174022
Product Attributes - Part Type: Fuel Pressure Regulators
Product Attributes - Product Line: Edelbrock Fuel Pressure Regulators
Product Attributes - UPC: 087133932262
Product Attributes - Regulator Pressure (psi): 35-90
Product Attributes - Regulator Style: Return
Product Attributes - Regulator Location: Inline
Product Attributes - Boost/Vacuum Reference Port: Yes
Product Attributes - Boost/Vacuum Rise Ratio: 1:1
Product Attributes - Gauge Port: Yes
Product Attributes - Inlet Quantity: 1
Product Attributes - Regulator Inlet Size: -10 AN
Product Attributes - Inlet Attachment: Female straight cut O-ring
Product Attributes - Outlet Quantity: 1
Product Attributes - Regulator Outlet Size: -10 AN
Product Attributes - Outlet Attachment: Female straight cut O-ring
Product Attributes - Return Fitting Size: -6 AN
Product Attributes - Return Attachment: Female straight cut O-ring
Product Attributes - Fittings Included: Yes
Product Attributes - Regulator Material: Aluminum
Product Attributes - Regulator Color: Blue
Product Attributes - Rebuildable: Yes
Product Attributes - Mounting Bracket Included: Yes
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: 180 gallons per hour.

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede174022
SFX Item ID	4236155
Supplier Item Code	4236155
Manufacturer SKU	174022
Manufacturer UPC	87133932262
Alternative References	applications;?174022, EDB174022, EDL-174022, -10In/Out
