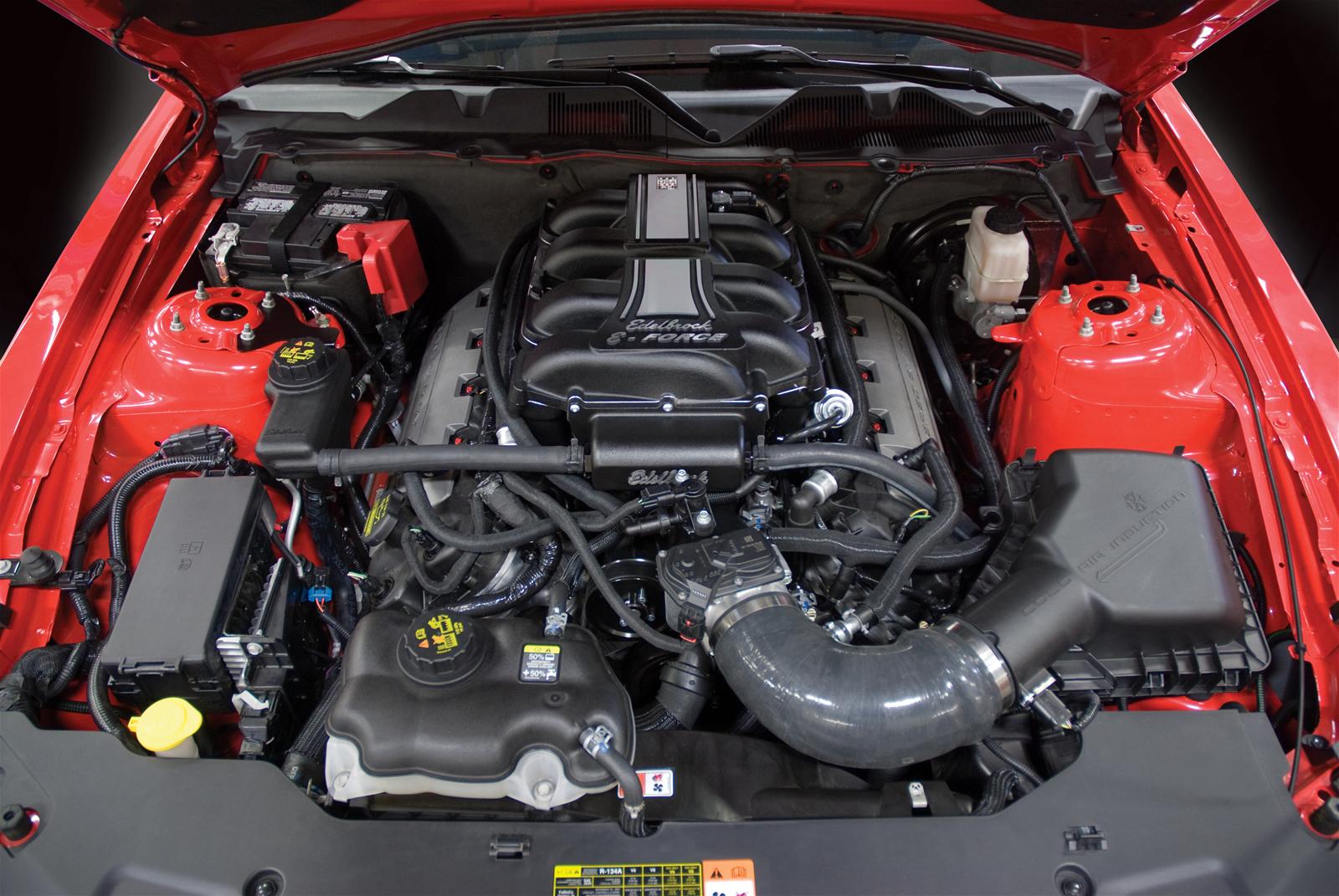

Edelbrock Supercharger Stage 1 - Street Kit 2011-2014 Ford Mustang 5 0L w/ Tuner

SKU: EDE1588

Superchargers, Roots Style Kits

EDE Supercharger...

Edelbrock

Edelbrock Supercharger Stage 1 - Street Kit 2011-2014 Ford Mustang 5 0L w/ Tuner

SKU: EDE1588

Superchargers, Roots Style Kits

EDE Supercharger...

Limited Availability from MFR Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.

We accept

Description

The Edelbrock supercharger Stage 1 Street system part #1588 for 2011-14 Mustangs increases the performance of your Coyote 5.0L 4V engine to 559 horsepower and 503 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.The Edelbrock #1588 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Product Overview

The Edelbrock supercharger Stage 1 Street system part #1588 for 2011-14 Mustangs increases the performance of your Coyote 5.0L 4V engine to 559 horsepower and 503 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1588 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Features and Benefits

Little To No Decrease In Fuel Economy

Product Details

9040:	D-215-89
Air Filter Included:	Yes
Calibration:	Yes
Center Housing Cooling Type:	Intercooler
Description:	E-Force Stage-1 Street Systems Supercharger
Finish:	Black Powder Coated
Fuel Injector Type:	50
Gasket Or Seal Included:	Yes
Harmonic Balancer Diameter:	6.67
Hose Included:	Yes
Housing Material:	Cast Aluminum
Internal Step Up:	Yes
Maximum Boost Pressure:	4.75
Maximum Horsepower:	559
Maximum Pressure Reading:	4.75
Maximum Torque:	503
Mounting Bracket Included:	Yes
Mounting Hardware Included:	Yes
Oil Capacity:	150
Outside Pulley Diameter:	3.75
Part Number:	ede1588
Pulley Belt Width:	6-Rib
Quantity:	Kit
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type:	Eaton TVS 2300
System Type:	Stage 1 - Street System
Tensioner Included:	Yes
Universal Or Specific Fit:	Specific
Vehicle Model:	Mustang
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Ford:Coyote 4V:302 (5.0L)

Part Type

Supercharger Kit

Data: v4.2 - Upd: 2026-10-13 23:12:17

Features

Little To No Decrease In Fuel Economy

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 1588
Product Attributes - Part Type: Superchargers, Roots Style Kits
Product Attributes - Product Line: Edelbrock E-Force Mustang Stage 1 Street Legal Supercharger Kits
Product Attributes - UPC: 085347015887
Product Attributes - Cylinder Head Configuration: Stock
Product Attributes - Supercharger Pulley Included: Yes
Product Attributes - Pulley Style: Serpentine
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Damper Included: No
Product Attributes - Crankshaft Pulley Grooves: 6-groove, serpentine
Product Attributes - Supercharger Finish: Black
Product Attributes - Computer Chip/Programmer Included: Yes
Product Attributes - Multi-Port Fuel Rails Included: Yes
Product Attributes - Fuel Injectors Included: Yes
Product Attributes - Fuel Pump Included: No
Product Attributes - Regulator Included: No
Product Attributes - Wiring Harness Included: Yes
Product Attributes - Linkage Included: No
Product Attributes - Intercooler Included: Yes
Product Attributes - PTFE Lined Rotors: No
Product Attributes - Supercharger Model: Eaton Gen VI
Product Attributes - Belt Tensioner Included: Yes
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - CARB EO Number(s): D-215-89
Product Attributes - Emissions: California EO Approved

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede1588
SFX Item ID	4236977
Supplier Item Code	4236977
Manufacturer SKU	1588
Manufacturer UPC	85347015887
Alternative References	v8;, 5.0l;, EDB1588, EDL-1588
