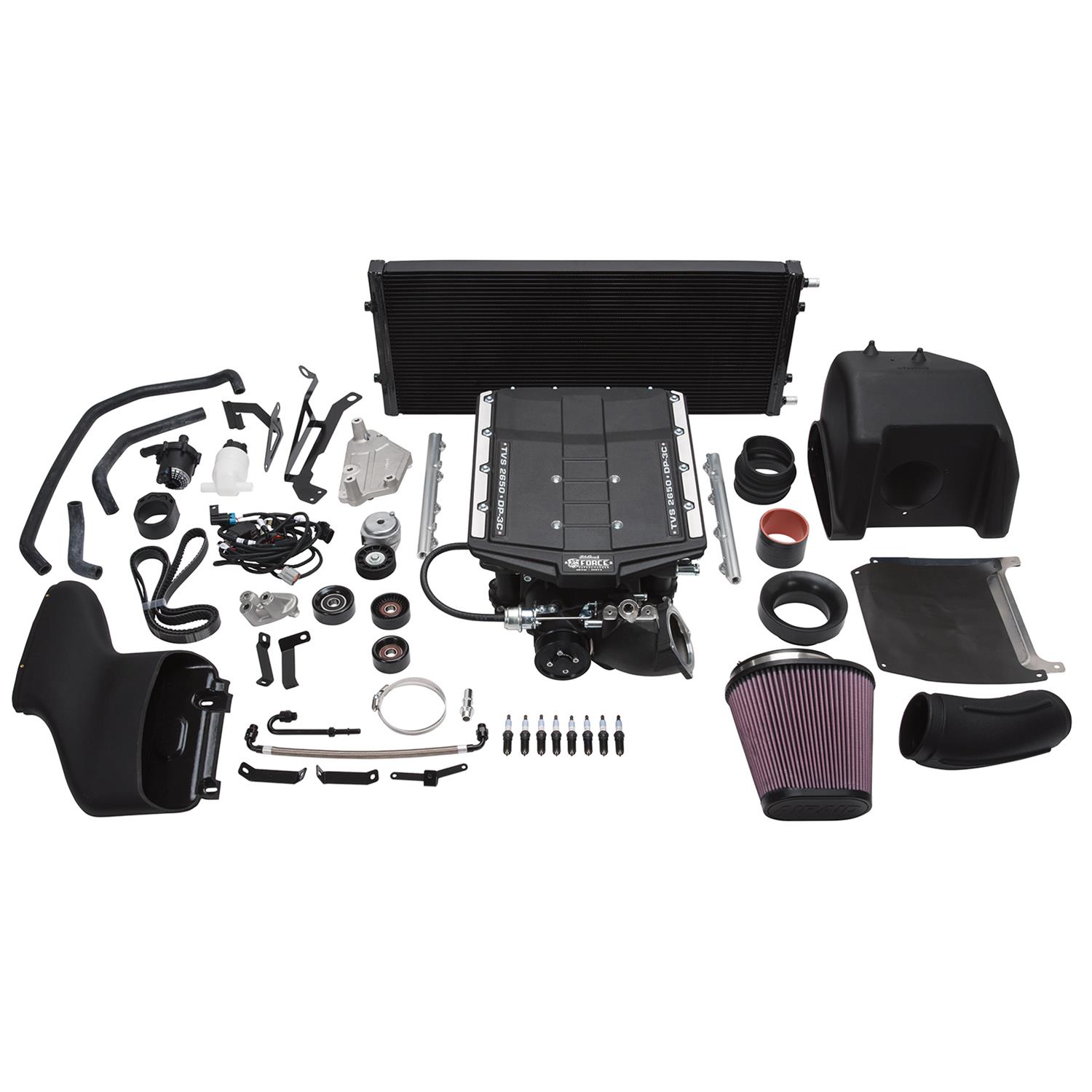

Edelbrock E-Force Supercharger Stage 1 - R2650 2018 Ford F-150 DI/PI V8 w/o Tuner

SKU: EDE158360

Superchargers, Roots Style Kits

EDE Supercharger...

Edelbrock

Edelbrock E-Force Supercharger Stage 1 - R2650 2018 Ford F-150 DI/PI V8 w/o Tuner

SKU: EDE158360

Superchargers, Roots Style Kits

EDE Supercharger...

Last Available from MFR. LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.

We accept

Description

The Edelbrock supercharger Stage 1 part #158360 is designed for use with 2018 Ford F150 With Gen III DI/PI 5.0L Coyote engine and 10-Speed Auto trans. The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #15836 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Product Overview

The Edelbrock supercharger Stage 1 part #158360 is designed for use with 2018 Ford F150 With Gen III DI/PI 5.0L Coyote engine and 10-Speed Auto trans. The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #15836 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Features and Benefits

Ideal For Towing and Off-Road Performance

Product Details

9040:	D-215-104
Calibration:	No
Center Housing Cooling Type:	Intercooler
Description:	E-Force Stage-1 Street Systems Supercharger
Finish:	Black Powder Coated
Gasket Or Seal Included:	Yes
Harmonic Balancer Diameter:	Stock
Hose Included:	Yes
Housing Material:	Cast Aluminum
Internal Step Up:	Yes
Mounting Bracket Included:	Yes
Mounting Hardware Included:	Yes
Oil Capacity:	150
Outside Pulley Diameter:	3.5
Part Number:	ede158360
Pulley Belt Width:	6-Rib
Quantity:	Kit
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type:	Eaton TVS 2650
System Type:	Stage 1 - Street System
Tensioner Included:	Yes
Universal Or Specific Fit:	Specific
Vehicle Model:	F-150
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Ford:Coyote 4V:302 (5.0L)

Part Type

Supercharger Kit

Data: v4.2 - Upd: 2026-10-13 23:11:25

Features

Ideal For Towing and Off-Road Performance

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 158360
Product Attributes - Part Type: Superchargers, Roots Style Kits
Product Attributes - Product Line: Edelbrock E-Force Ford F-150 Stage 1 Street Legal Supercharger Kits
Product Attributes - UPC: 085347890040
Product Attributes - Cylinder Head Configuration: Coyote
Product Attributes - Supercharger Pulley Included: Yes
Product Attributes - Pulley Style: Serpentine
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Damper Included: No
Product Attributes - Crankshaft Pulley Grooves: 6-groove, serpentine
Product Attributes - Supercharger Finish: Black
Product Attributes - Computer Chip/Programmer Included: No
Product Attributes - Multi-Port Fuel Rails Included: Yes
Product Attributes - Fuel Injectors Included: No
Product Attributes - Fuel Pump Included: No
Product Attributes - Regulator Included: No
Product Attributes - Wiring Harness Included: Yes
Product Attributes - Linkage Included: No
Product Attributes - Intercooler Included: Yes
Product Attributes - PTFE Lined Rotors: No
Product Attributes - Supercharger Model: Eaton TVS 2650
Product Attributes - Belt Tensioner Included: Yes
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: Installs with no cutting or modification to body or hood. Will require professional tuning. Fits 10-speed automatic models only.
Product Attributes - CARB EO Number(s): D-215-99
Product Attributes - Emissions: California EO Approved

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede158360
SFX Item ID	4237535
Supplier Item Code	4237535
Manufacturer SKU	158360
Manufacturer UPC	85347890040
Alternative References	R2650, F-150, v8;, EDB158360, EDL-158360
