Edelbrock E-Force Supercharger Stage 1 - R2650 2018 Ford F-150 DI/PI V8
Edelbrock E-Force Supercharger Stage 1 - R2650 2018 Ford F-150 DI/PI V8
A$20,431.81
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description

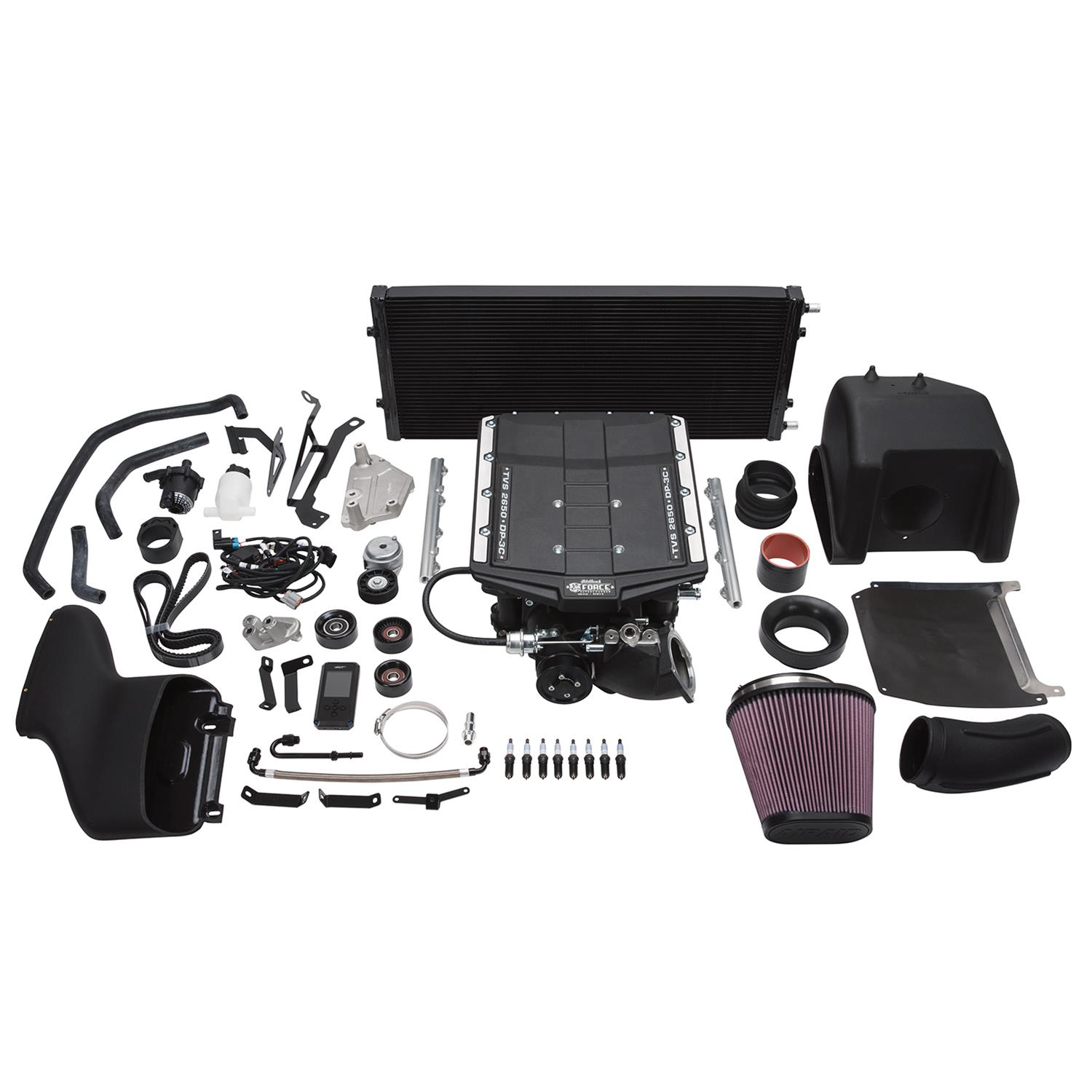

The Edelbrock Supercharger System part #158360 is designed for use on a 2018 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger. The Edelbrock #158360 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. Which can be requested by contacting the Edelbrock calibration team at calibration@edelbrock.com. Tunes for 91 and 93 octane fuels are available upon request. This system will produce approximately 601whp 468wtq using 93 octane.
Product Overview
The Edelbrock Supercharger System part #158360 is designed for use on a 2018 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger. The Edelbrock #158360 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. Which can be requested by contacting the Edelbrock calibration team at calibration@edelbrock.com. Tunes for 91 and 93 octane fuels are available upon request. This system will produce approximately 601whp 468wtq using 93 octane.
Features and Benefits
- Ideal For Towing and Off-Road Performance
Product Details
| 9040: | D-215-104 |
|---|---|
| Calibration: | Yes |
| Center Housing Cooling Type: | Intercooler |
| Description: | E-Force Stage-1 Street Systems Supercharger |
| Finish: | Black Powder Coated |
| Gasket Or Seal Included: | Yes |
| Harmonic Balancer Diameter: | Stock |
| Hose Included: | Yes |
| Housing Material: | Cast Aluminum |
| Internal Step Up: | Yes |
| Maximum Boost Pressure: | 13 |
| Maximum Horsepower: | 601RW |
| Maximum Pressure Reading: | 13 |
| Maximum Torque: | 468RW |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Oil Capacity: | 150 |
| Outside Pulley Diameter: | 3.5 |
| Part Number: | ede15836 |
| Pulley Belt Width: | 6-Rib |
| Quantity: | Kit |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type: | Eaton TVS 2650 |
| System Type: | Stage 1 - Street System |
| Tensioner Included: | Yes |
| Universal Or Specific Fit: | Specific |
| Vehicle Model: | F-150 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Ford:Coyote 4V:302 (5.0L)
Part Type
Supercharger Kit
Features
- Ideal For Towing and Off-Road Performance
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 15836
- Product Attributes - Part Type
- Superchargers, Roots Style Kits
- Product Attributes - Product Line
- Edelbrock E-Force Ford F-150 Stage 1 Street Legal Supercharger Kits
- Product Attributes - UPC
- 085347158362
- Product Attributes - Cylinder Head Configuration
- Coyote
- Product Attributes - Supercharger Pulley Included
- Yes
- Product Attributes - Pulley Style
- Serpentine
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Damper Included
- No
- Product Attributes - Crankshaft Pulley Grooves
- 6-groove, serpentine
- Product Attributes - Supercharger Finish
- Black
- Product Attributes - Computer Chip/Programmer Included
- Yes
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - Fuel Injectors Included
- No
- Product Attributes - Fuel Pump Included
- No
- Product Attributes - Regulator Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Linkage Included
- No
- Product Attributes - Intercooler Included
- Yes
- Product Attributes - PTFE Lined Rotors
- No
- Product Attributes - Supercharger Model
- Eaton TVS 2650
- Product Attributes - Belt Tensioner Included
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Installs with no cutting or modification to body or hood. Fits 10-speed automatic models only.
- Product Attributes - CARB EO Number(s)
- D-215-99
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede15836 |
| SFX Item ID | 4237527 |
| Supplier Item Code | 4237527 |
| Manufacturer SKU | 15836 |
| Manufacturer UPC | 85347158362 |
| Alternative References | R2650, F-150, v8;, EDB15836, EDL-15836 |
Brochures
Compatibility
Ford:Coyote 4V:302 (5.0L)
