Edelbrock Supercharger Stage I R2650 2019 Ford F150 DI/PI 5.0L

SKU: EDE15812

Superchargers, Roots Style Kits

EDE Supercharger...

Limited Availability from MFR Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.

We accept

Description

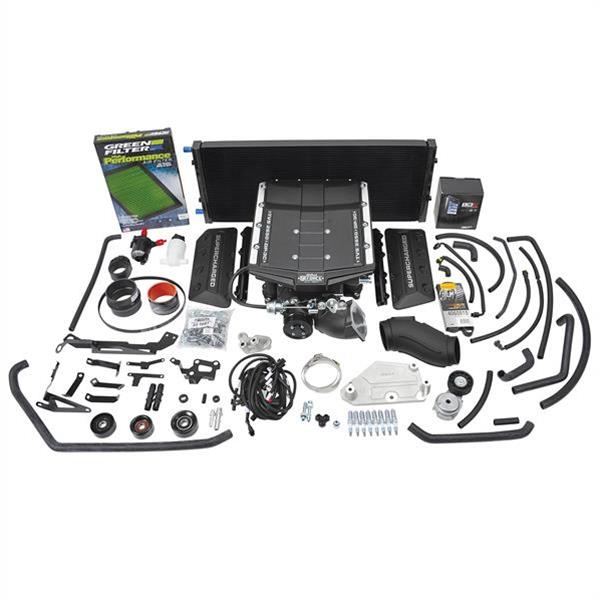

The Edelbrock Supercharger System part #15812 is designed for use on a 2019-2021 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger. The Edelbrock #15812 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. This kit includes a tune for 91 or 93 octane fuels and makes approximately 601whp 468wtq using 93 octane backed by our FREE, industry-leading 3-year/36,000 mile powered train warranty where applicable.

Product Overview

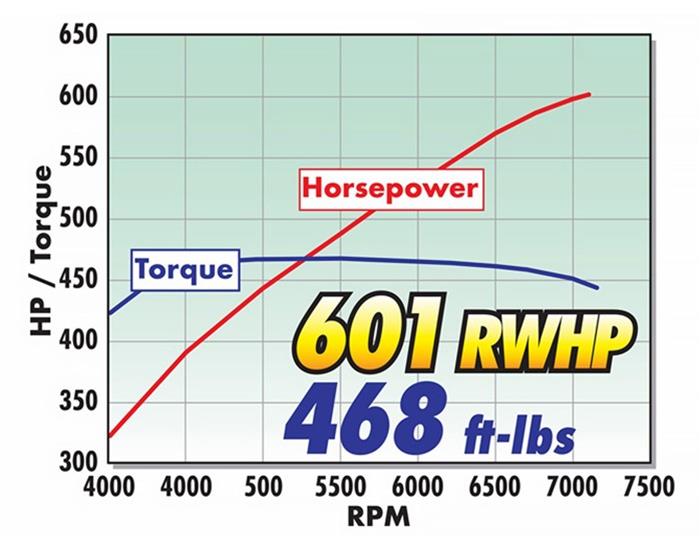

The new Edelbrock Supercharger System #15812 is now available for the 2019-2021 Ford F-150 powered by the 5.0L Ti-VCT Coyote V-8 engine. This bolt-on performance kit is 50-state emissions legal and produces an impressive 601 horsepower with 468 ft-lbs of torque at the rear wheels on pump gas. At the heart of this Edelbrock supercharger kit are the new high-efficiency Eaton R2650 Twin Vortices Series rotors featuring a four-lobe design with a 170-degree twist for maximum flow, minimum temperature rise and quiet operation. The R2650 TVS requires 18% less input power and uses larger bearings with thicker gears for increased durability and reliability. The inverted design of our system places the unit low in the F-150 engine valley, which allows runner length to be increased for more low-end torque. Contributing to the 68% power increase is a specially designed front drive with a short front-facing intake configuration that shortens the inlet path and completely eliminates the need for a power-robbing jackshaft found on other types of superchargers. And if you're concerned about the effect on MPG, the increase in power comes with little to no loss in fuel economy thanks to the supercharger's integrated bypass valve that mitigates parasitic power loss during normal driving. The Edelbrock supercharger kit for the 2019-2021 F-150 features an integrated DP-3C (Dual-Pass 3 Core) high-capacity air-to-water intercooler and includes all wiring harnesses, pre-formed hoses, hardware and color step-by-step installation manual. Whether you plan to tow a trailer, haul heavier loads, or you just want to feel your F-150 come to life without sacrificing daily drivability, the Edelbrock supercharger kit will deliver levels of performance and acceleration that you never thought possible from a stock-block engine. The Edelbrock supercharger comes finished in durable matte black powder-coat and is covered by our industry-leading 3-year/36,000-mile warranty.

Features and Benefits

E-Force Stage-1 Supercharger System

Product Details

9040:	D-215-122
Calibration:	Yes
Center Housing Cooling Type:	Intercooler
Description:	E-Force Stage-1 Supercharger System
Finish:	Black Powder Coated
Gasket Or Seal Included:	Yes
Harmonic Balancer Diameter:	Stock
Hose Included:	Yes
Housing Material:	Cast Aluminum
Internal Step Up:	Yes
Maximum Boost Pressure:	13
Maximum Horsepower:	601RW
Maximum Pressure Reading:	13
Maximum Torque:	468RW
Mounting Bracket Included:	Yes
Mounting Hardware Included:	Yes
Oil Capacity:	150
Outside Pulley Diameter:	3.5
Part Number:	ede15812
Pulley Belt Width:	6-Rib
Quantity:	Kit
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type:	Eaton TVS 2650
System Type:	Stage 1 - Street System
Tensioner Included:	Yes
Universal Or Specific Fit:	Specific
Vehicle Model:	F-150
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Ford:Modular Coyote 4V:302 (5.0L)

Part Type

Supercharger Kit

Data: v4.2 - Upd: 2026-10-13 23:11:25

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 15812
Product Attributes - Part Type: Superchargers, Roots Style Kits
Product Attributes - Product Line: Edelbrock E-Force Ford F-150 Stage 1 Street Legal Supercharger Kits
Product Attributes - UPC: 085347158126
Product Attributes - Cylinder Head Configuration: Stock
Product Attributes - Supercharger Pulley Included: Yes
Product Attributes - Pulley Style: Serpentine
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Damper Included: No
Product Attributes - Crankshaft Pulley Grooves: 6-groove, serpentine
Product Attributes - Supercharger Finish: Black
Product Attributes - Computer Chip/Programmer Included: Yes
Product Attributes - Multi-Port Fuel Rails Included: Yes
Product Attributes - Fuel Injectors Included: Yes
Product Attributes - Fuel Pump Included: No
Product Attributes - Regulator Included: No
Product Attributes - Wiring Harness Included: Yes
Product Attributes - Linkage Included: No
Product Attributes - Intercooler Included: Yes
Product Attributes - PTFE Lined Rotors: No
Product Attributes - Supercharger Model: Eaton TVS 2650
Product Attributes - Belt Tensioner Included: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - CARB EO Number(s): D-215-115
Product Attributes - Emissions: California EO Approved

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede15812
SFX Item ID	4237586
Supplier Item Code	4237586
Manufacturer SKU	15812
Manufacturer UPC	85347158126
Alternative References	edl-15812, f-150;, EDB15812, R2650, 5.0L
