Edelbrock Carburetor Performer Series 4-Barrel 600 CFM Electric Choke Satin Finish
ede1406
A$1,054.71
Edelbrock E-Force GM Truck and SUV Stage 1 Street Legal Supercharger Kits 1577 System, E-Force, Serpentine, Black Powder Coated, Intercooler, With Tuner, 4.8,5.3,6.0, Kit
Edelbrock E-Force GM Truck and SUV Stage 1 Street Legal Supercharger Kits 1577 System, E-Force, Serpentine, Black Powder Coated, Intercooler, With Tuner, 4.8,5.3,6.0, Kit
A$18,895.65
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description

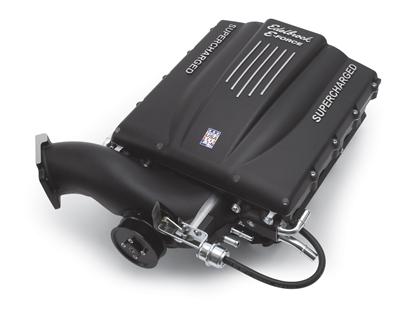

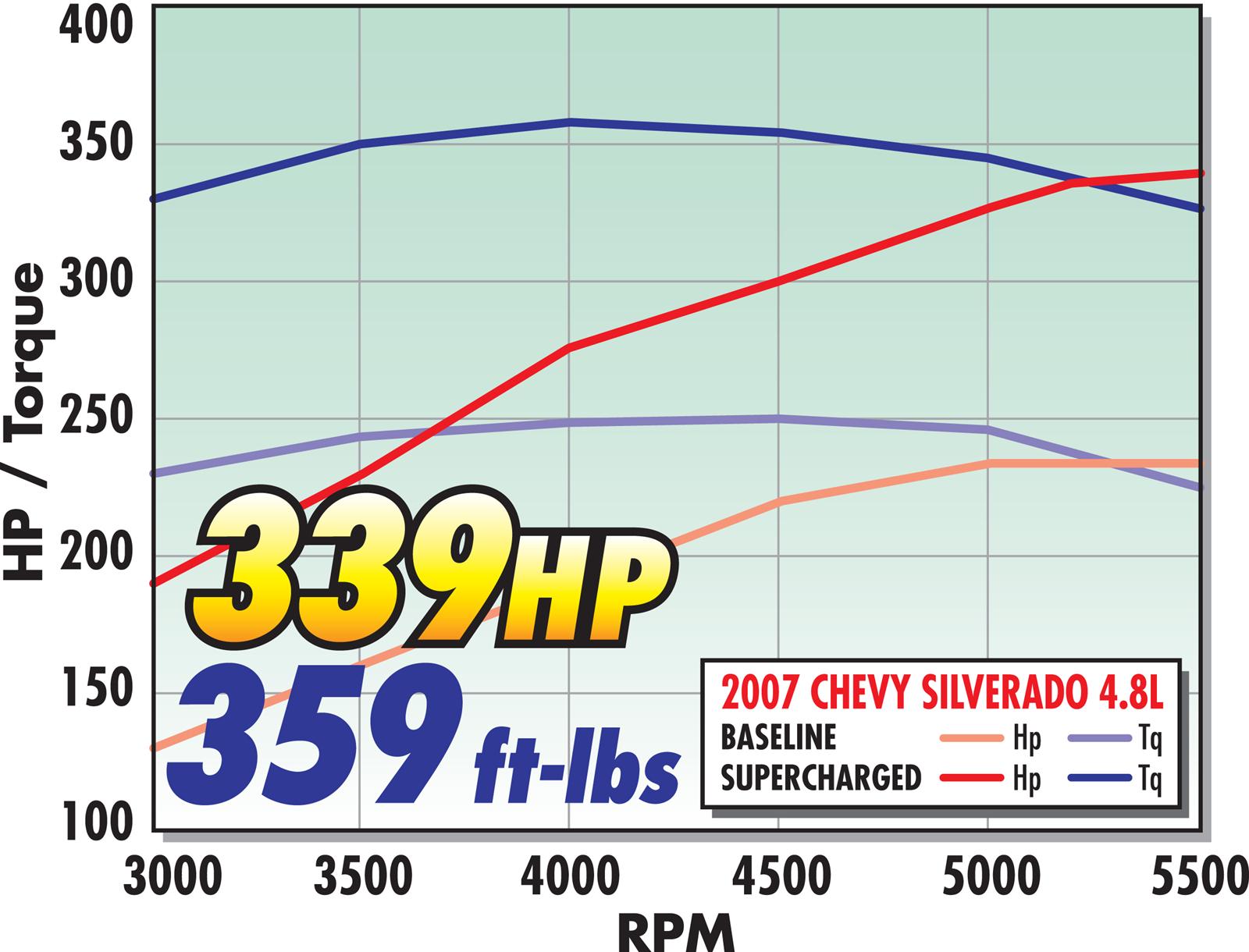

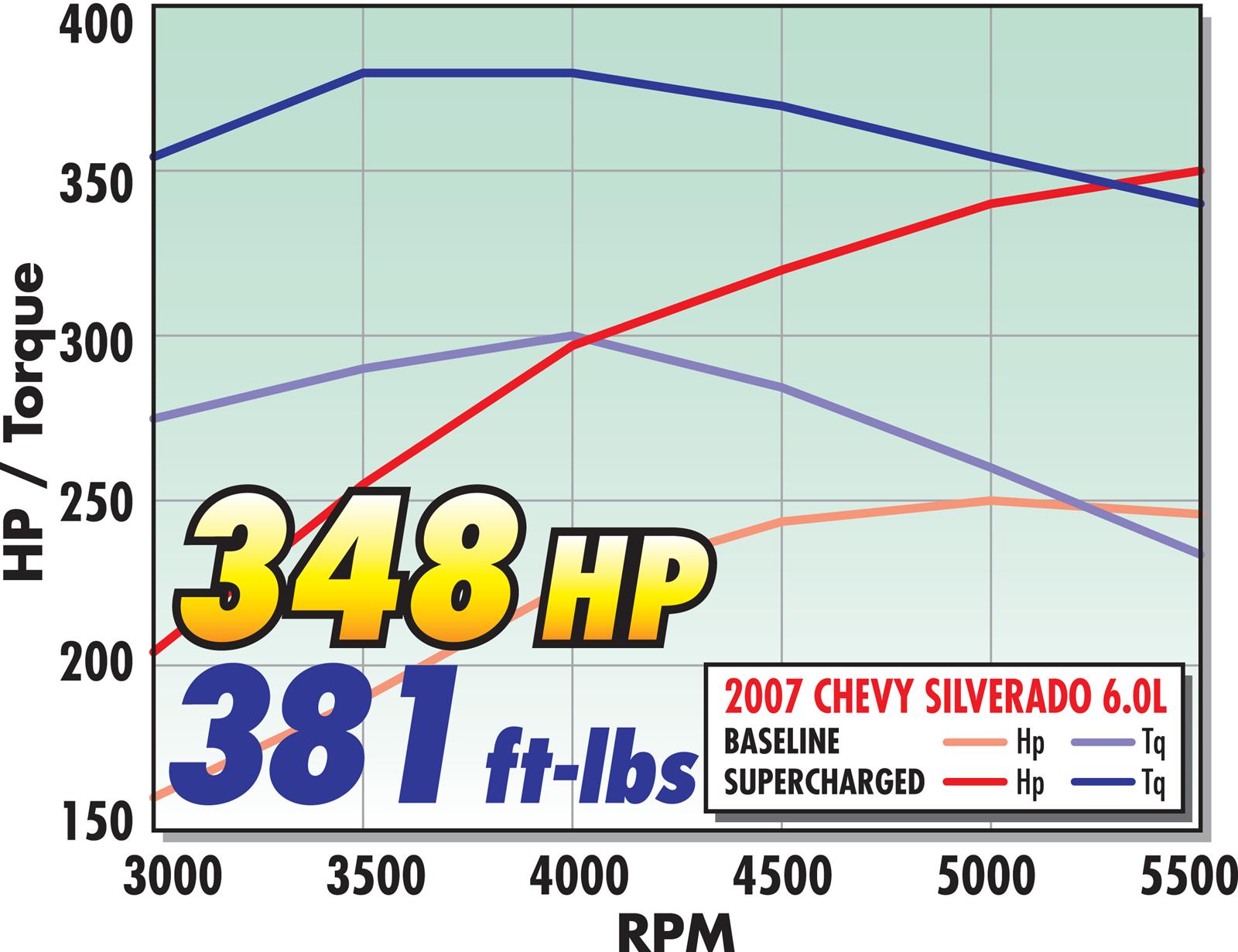

The Edelbrock supercharger Stage 1 Street system part #1577 is for 2003-06 Silverado and Sierra 1500 and 2007 Sierra Classic vehicles. This supercharger system works with the 6.0L, 4.8L and 5.3L Gen III engines and increases the performance of the 6.0L engine to 348 horsepower and 381 ft-lbs at the rear wheels, 4.8L engine to 339 horsepower and 359 ft-lbs of torque at the rear wheels and the 5.3L engine to 345 horsepower and 381 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1577 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Product Overview
The Edelbrock supercharger Stage 1 Street system part #1577 is for 2003-06 Silverado and Sierra 1500 and 2007 Sierra Classic vehicles. This supercharger system works with the 6.0L, 4.8L and 5.3L Gen III engines and increases the performance of the 6.0L engine to 348 horsepower and 381 ft-lbs at the rear wheels, 4.8L engine to 339 horsepower and 359 ft-lbs of torque at the rear wheels and the 5.3L engine to 345 horsepower and 381 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1577 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Features and Benefits
- Little To No Decrease In Fuel Economy
Product Details
| 9040: | D-215-110 |
|---|---|
| Air Filter Included: | Yes |
| Calibration: | Yes |
| Center Housing Cooling Type: | Intercooler |
| Description: | E-Force Stage-1 Street Systems Supercharger |
| Finish: | Black Powder Coated |
| Fuel Injector Type: | 42 |
| Gasket Or Seal Included: | Yes |
| Harmonic Balancer Diameter: | 7.5 |
| Hose Included: | Yes |
| Housing Material: | Cast Aluminum |
| Internal Step Up: | Yes |
| Maximum Boost Pressure: | 6 |
| Maximum Horsepower: | 339RW; 345RW; 348RW |
| Maximum Pressure Reading: | 6 |
| Maximum Torque: | 359RW; 381RW; 381RW |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Oil Capacity: | 150 |
| Outside Pulley Diameter: | 4.125 |
| Part Number: | ede1577 |
| Pulley Belt Width: | 6-Rib |
| Quantity: | Kit |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type: | Eaton TVS 2300 |
| System Type: | Stage 1 - Street System |
| Universal Or Specific Fit: | Specific |
| Vehicle Model: | Silverado |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet:Small-Block LC9:325 (5.3L);Chevrolet:Small-Block LH8:325 (5.3L);Chevrolet:Small-Block LMF:325 (5.3L);Chevrolet:Small-Block LMG:325 (5.3L);Chevrolet:Small-Block LY5:325 (5.3L);Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen
Part Type
Supercharger Kit
Features
- Little To No Decrease In Fuel Economy
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 1577
- Product Attributes - Part Type
- Superchargers, Roots Style Kits
- Product Attributes - Product Line
- Edelbrock E-Force GM Truck and SUV Stage 1 Street Legal Supercharger Kits
- Product Attributes - UPC
- 085347015771
- Product Attributes - Cylinder Head Configuration
- Stock
- Product Attributes - Supercharger Pulley Included
- Yes
- Product Attributes - Pulley Style
- Serpentine
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Damper Included
- No
- Product Attributes - Crankshaft Pulley Grooves
- 6-groove, serpentine
- Product Attributes - Supercharger Finish
- Black
- Product Attributes - Computer Chip/Programmer Included
- Yes
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - Fuel Injectors Included
- No
- Product Attributes - Fuel Pump Included
- No
- Product Attributes - Regulator Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Linkage Included
- No
- Product Attributes - Intercooler Included
- Yes
- Product Attributes - PTFE Lined Rotors
- No
- Product Attributes - Supercharger Model
- Eaton Gen VI
- Product Attributes - Belt Tensioner Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- A supplemental fuel pump kit is required for non-flex fuel vehicles. Click the "Suggested Parts" tab for additional information.
- Product Attributes - CARB EO Number(s)
- D-215-89
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1577 |
| SFX Item ID | 4809911 |
| Supplier Item Code | 4809911 |
| Manufacturer SKU | 1577 |
| Manufacturer UPC | 85347015771 |
| Alternative References | EDB1577, EDL-1577 |
Brochures
Compatibility
Chevrolet:Small-Block LC9:325 (5.3L);Chevrolet:Small-Block LH8:325 (5.3L);Chevrolet:Small-Block LMF:325 (5.3L);Chevrolet:Small-Block LMG:325 (5.3L);Chevrolet:Small-Block LY5:325 (5.3L);Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen
