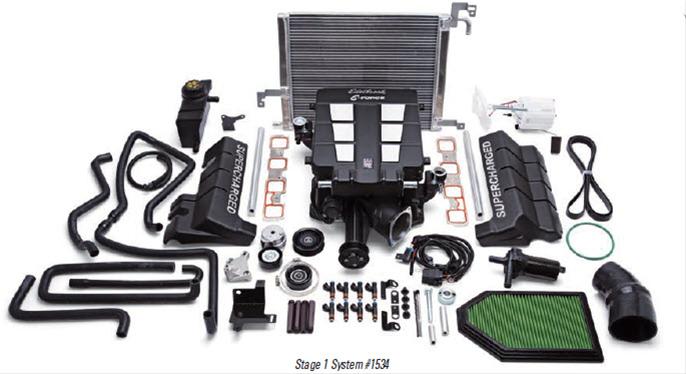

Edelbrock E-Force Chrysler Stage 1 Street Legal Supercharger Systems 1534 System, Street, Roots, Black Powdercoated, Intercooler, Chrysler, 5.7L, LX, LC, Kit
Edelbrock E-Force Chrysler Stage 1 Street Legal Supercharger Systems 1534 System, Street, Roots, Black Powdercoated, Intercooler, Chrysler, 5.7L, LX, LC, Kit
A$20,771.03
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
The Edelbrock Supercharger System part #1534 is designed for your 2011-14 5.7L HEMI Chrysler 300, Dodge Charger or Challenger and produces 471 RWHP and 475 RWTQ. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Product Overview
The Edelbrock Supercharger System part #1534 is designed for your 2011-14 5.7L HEMI Chrysler 300, Dodge Charger or Challenger and produces 471 RWHP and 475 RWTQ. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Features and Benefits
- Little To No Decrease In Fuel Economy
Product Details
| 9040: | D-215-89 |
|---|---|
| Air Filter Included: | Yes |
| Calibration: | Yes |
| Center Housing Cooling Type: | Intercooler |
| Description: | E-Force Stage-1 Street Systems Supercharger |
| Finish: | Black Powder Coated |
| Fuel Injector Type: | 46 |
| Fuel Pump Included: | Yes |
| Gasket Or Seal Included: | Yes |
| Harmonic Balancer Diameter: | 6.3 |
| Hose Included: | Yes |
| Housing Material: | Cast Aluminum |
| Internal Step Up: | Yes |
| Maximum Boost Pressure: | 6 |
| Maximum Horsepower: | 471RW |
| Maximum Pressure Reading: | 6 |
| Maximum Torque: | 475RW |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Oil Capacity: | 150 |
| Outside Pulley Diameter: | 3.25 |
| Part Number: | ede1534 |
| Pulley Belt Width: | 6-Rib |
| Quantity: | Kit |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type: | Eaton TVS 2300 |
| System Type: | Stage 1 - Street System |
| Tensioner Included: | Yes |
| Universal Or Specific Fit: | Specific |
| Vehicle Model: | 300 |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chrysler:Gen III HEMI:345 (5.7L)
Part Type
Supercharger Kit
Features
- Little To No Decrease In Fuel Economy
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 1534
- Product Attributes - Part Type
- Superchargers, Roots Style Kits
- Product Attributes - Product Line
- Edelbrock E-Force Chrysler Stage 1 Street Legal Supercharger Systems
- Product Attributes - UPC
- 085347015344
- Product Attributes - Cylinder Head Configuration
- Stock
- Product Attributes - Supercharger Pulley Included
- Yes
- Product Attributes - Pulley Style
- Serpentine
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Damper Included
- No
- Product Attributes - Crankshaft Pulley Grooves
- 6-groove, serpentine
- Product Attributes - Supercharger Finish
- Black
- Product Attributes - Computer Chip/Programmer Included
- Yes
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - Fuel Injectors Included
- Yes
- Product Attributes - Fuel Pump Included
- Yes
- Product Attributes - Regulator Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Linkage Included
- No
- Product Attributes - Intercooler Included
- Yes
- Product Attributes - PTFE Lined Rotors
- No
- Product Attributes - Supercharger Model
- Eaton Gen VI
- Product Attributes - Belt Tensioner Included
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - CARB EO Number(s)
- D-215-89
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1534 |
| SFX Item ID | 4809976 |
| Supplier Item Code | 4809976 |
| Manufacturer SKU | 1534 |
| Manufacturer UPC | 85347015344 |
| Alternative References | EDB1534, EDL-1534, 5.7L |
Brochures
Compatibility
Chrysler:Gen III HEMI:345 (5.7L)
