Edelbrock Supercharger Stage 1 - Street Kit 2012-2014 Jeep Wrangler 3 6L V6

SKU: EDE1527

Superchargers, Roots Style Kits

EDE Supercharger...

Edelbrock

Edelbrock Supercharger Stage 1 - Street Kit 2012-2014 Jeep Wrangler 3 6L V6

SKU: EDE1527

Superchargers, Roots Style Kits

EDE Supercharger...

Limited Availability from MFR Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.

We accept

Description

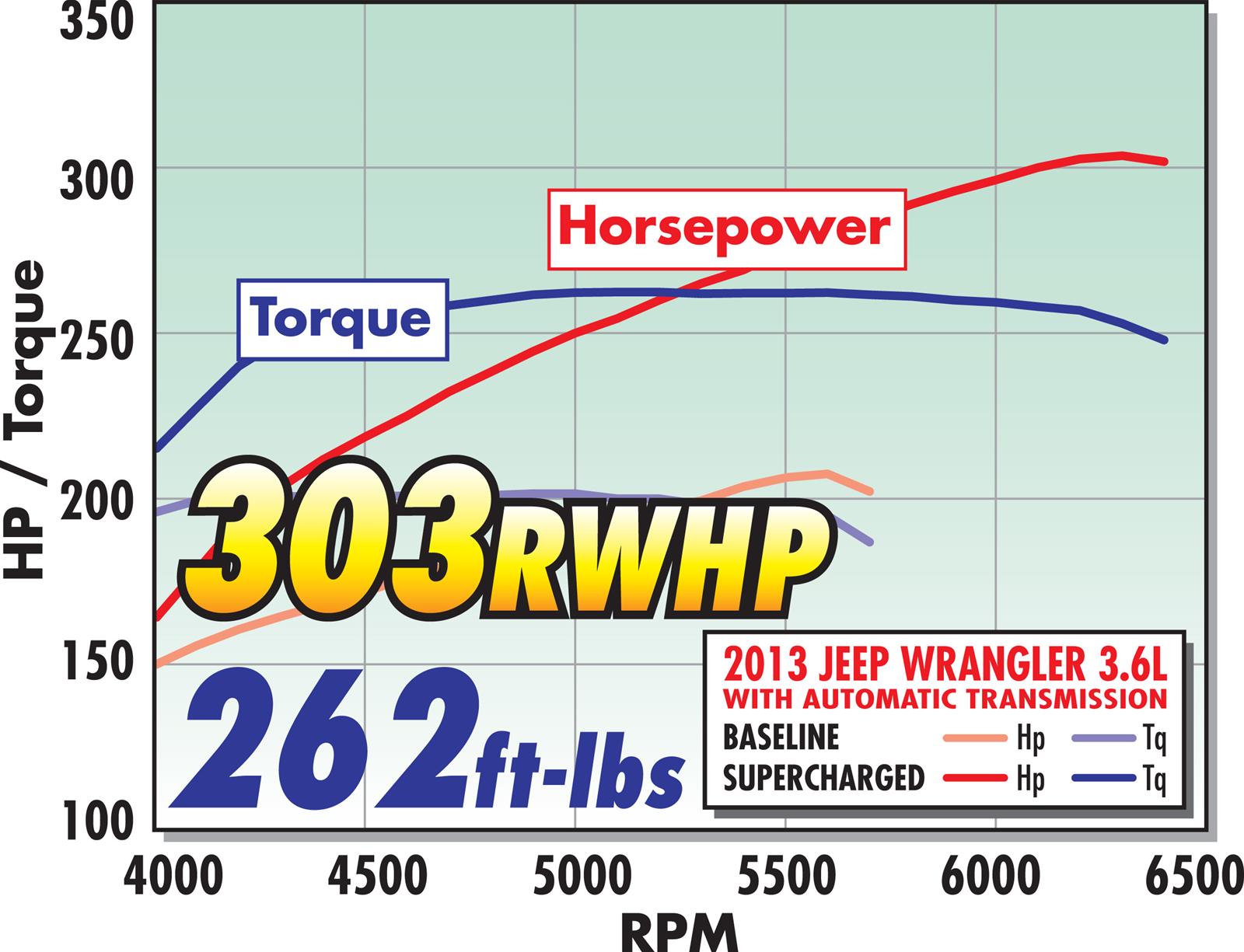

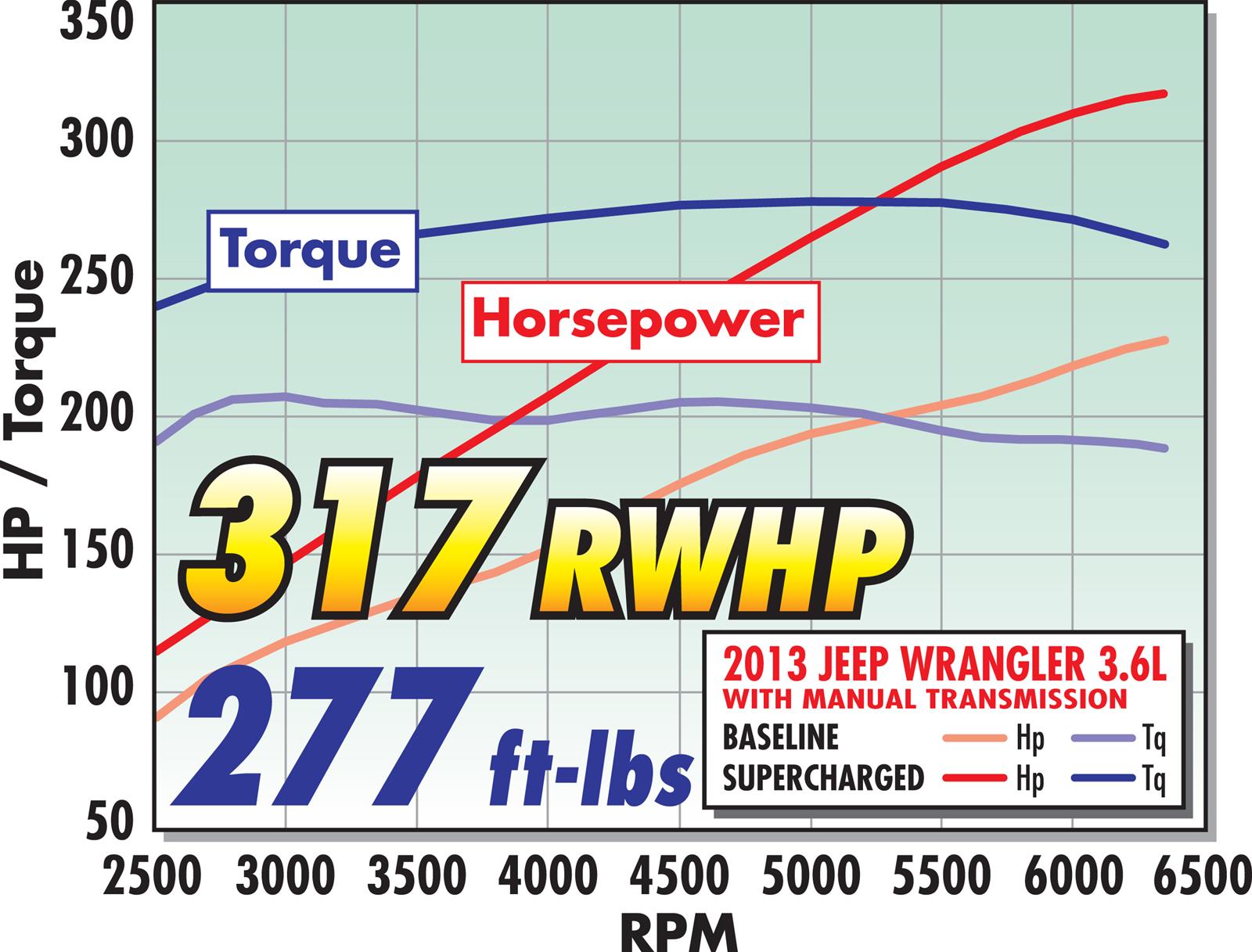

The Edelbrock Supercharger System #1527 for your 2012-14 Jeep Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 engine with a unique design and minimal components that makes it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design having 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

Product Overview

Push your 2012-14 Jeep Wrangler to the limit with power to spare by adding Edelbrock?s new Supercharger System #1527 for the 3.6L Pentastar V6. This 50-state emissions-legal bolt-on is dyno proven to deliver 317 RWHP and 277 RWTQ (manual transmission) and 303 RWHP and 262 RWTQ (automatic); exactly what you need to run those oversized wheels and tires; haul the weight of off-road accessories and cruise the highway with ample passing power. This 50-state emissions-legal bolt-on that boosts torque by 35% and ups horsepower by 40%. At the heart of this system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design having 160 degrees of twist for maximum flow; minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve which helps to mitigate parasitic loss under partial throttle; improving overall mileage potential. Our unique and efficient inlet configuration results in a shorter; less restrictive intake path for improved airflow; without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. This kit includes the hand-held programmer and calibration for 2012-14 Jeep Wranglers. For 2015-18 models order kit #1528.

Features and Benefits

Little To No Decrease In Fuel Economy

Product Details

9040:	D-215-96
Air Filter Included:	Yes
Calibration:	Yes
Center Housing Cooling Type:	Intercooler
Description:	E-Force Stage-1 Street Systems Supercharger
Finish:	Black Powder Coated
Fuel Injector Type:	42
Gasket Or Seal Included:	Yes
Harmonic Balancer Diameter:	6.1
Hose Included:	Yes
Housing Material:	Cast Aluminum
Internal Step Up:	Yes
Maximum Boost Pressure:	8
Maximum Horsepower:	317RW (Manual Trans)/285RW (Auto Trans); With Stock Tires
Maximum Pressure Reading:	8
Maximum Torque:	277RW (Manual Trans)/235RW (Auto Trans); With Stock Tires
Mounting Bracket Included:	Yes
Mounting Hardware Included:	Yes
Oil Capacity:	125
Outside Pulley Diameter:	2.625
Part Number:	ede1527
Pulley Belt Width:	6-Rib
Quantity:	Kit
RGL:	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type:	Eaton TVS 1320
System Type:	Stage 1 - Street System
Universal Or Specific Fit:	Specific
Vehicle Model:	Wrangler
WARNING CA Proposition 65 Message:	WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
WARNING CA Proposition 65:	Yes

Application Summary

Jeep:Pentastar V6:220 (3.6L)

Part Type

Supercharger Kit

Data: v4.2 - Upd: 2026-10-13 23:12:17

Features

Little To No Decrease In Fuel Economy

Specifications

Product Attributes - Brand: Edelbrock
Product Attributes - Manufacturer's Part Number: 1527
Product Attributes - Part Type: Superchargers, Roots Style Kits
Product Attributes - Product Line: Edelbrock E-Force Jeep Wrangler Supercharger Kits
Product Attributes - UPC: 085347015276
Product Attributes - Cylinder Head Configuration: Stock
Product Attributes - Supercharger Pulley Included: Yes
Product Attributes - Pulley Style: Serpentine
Product Attributes - Engine Block Deck Height: Standard deck
Product Attributes - Damper Included: No
Product Attributes - Supercharger Finish: Black
Product Attributes - Computer Chip/Programmer Included: Yes
Product Attributes - Multi-Port Fuel Rails Included: Yes
Product Attributes - Fuel Injectors Included: Yes
Product Attributes - Fuel Pump Included: No
Product Attributes - Regulator Included: No
Product Attributes - Wiring Harness Included: Yes
Product Attributes - Linkage Included: No
Product Attributes - Intercooler Included: Yes
Product Attributes - PTFE Lined Rotors: No
Product Attributes - Supercharger Model: Eaton TVS 1320
Product Attributes - Belt Tensioner Included: Yes
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - CARB EO Number(s): D-215-96
Product Attributes - Emissions: California EO Approved

Reference Information

Brand Name/s	Edelbrock
StreetFX SKU	ede1527
SFX Item ID	4236981
Supplier Item Code	4236981
Manufacturer SKU	1527
Manufacturer UPC	85347015276
Alternative References	3.6l;, EDB1527, EDL-1527
