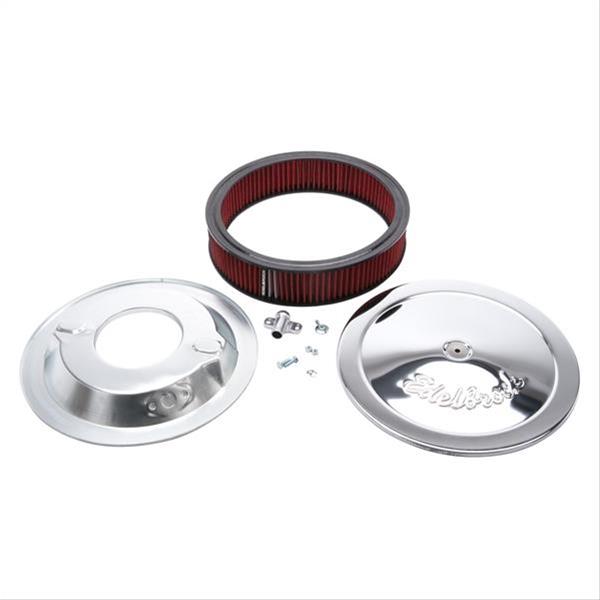

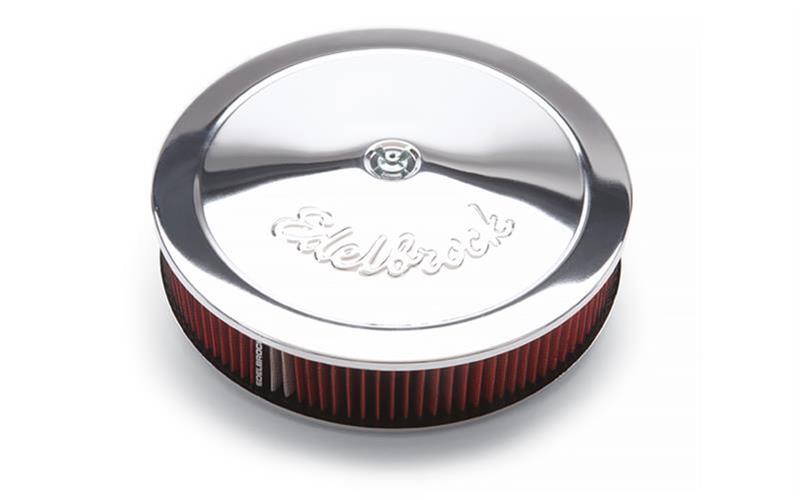

Edelbrock Air Cleaner Pro-Flo Series Round 14 In Diameter Cloth Element 3/8In Dropped Base Chrome
Edelbrock Air Cleaner Pro-Flo Series Round 14 In Diameter Cloth Element 3/8In Dropped Base Chrome
A$258.21
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Edelbrock triple chrome-plated round air cleaner #1224?work with all popular 5-1/8" diameter carburetors (Performer Series, Thunder Series AVS, Holley, Thermo-Quad, Quadra jet and Carter AFB). The 10" and 14" models have knock-outs in the air cleaner base for use with Edelbrock crank case ventilation adapter #1205 (sold separately). #1208, #1209 and #1221 fit all Edelbrock carburetors. Heights of air cleaners are in parentheses, measured from the gasket flange to the top of the supplied retaining nut. Dimensions are accurate within 1/8".
Product Overview
Edelbrock triple chrome-plated round air cleaner #1224 works with all popular 5-1/8" diameter carburetors (Performer Series, Thunder Series AVS, Holley, Thermo-Quad, Quadra jet and Carter AFB). The 10" and 14" models have knock-outs in the air cleaner base for use with Edelbrock crank case ventilation adapter #1205 (sold separately). #1208, #1209 and #1221 fit all Edelbrock carburetors. Heights of air cleaners are in parentheses, measured from the gasket flange to the top of the supplied retaining nut. Dimensions are accurate within 1/8".
Features and Benefits
- Adapter For Crankcase Ventilation Included
Product Details
| CARB/Air Horn Diameter (in.): | 5.125 in. |
|---|---|
| CARB/Air Horn Diameter: | 5.125 in. |
| Carb/Air Horn Dia. (in.): | 5.125 |
| Configuration: | Multi Piece |
| Description: | Pro-Flo Air Cleaner |
| Diameter Outside (in.): | 14 |
| Diameter: | 14.0 |
| Family: | Pro-Flo |
| Finish: | Chrome |
| Grade Type: | Performance |
| Height: | 3.75 |
| Housing Material: | Steel |
| Length: | 14.00 |
| Marine Approved: | No |
| Material: | Cotton Gauze |
| Mounting Hole Quantity: | 1 |
| Outside Diameter: | 14.000 in. |
| Part Number: | ede1224 |
| RGL: | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series: | Pro-Flo |
| Shape: | Round |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
| Width: | 14.00 |
Part Type
Air Cleaner Assembly
Features
- Adapter For Crankcase Ventilation Included
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 1224
- Product Attributes - Part Type
- Air Cleaners
- Product Attributes - Product Line
- Edelbrock Pro-Flo Series Air Cleaners
- Product Attributes - UPC
- 085347012244
- Product Attributes - Base Style
- Dropped
- Product Attributes - Base Dropped Distance (in.)
- 0.625
- Product Attributes - Air Cleaner Shape
- Round
- Product Attributes - Air Cleaner Size
- 14 in. diameter
- Product Attributes - Air Cleaner Top Design
- Edelbrock logo
- Product Attributes - Air Cleaner Top Material
- Steel
- Product Attributes - Color
- Chrome
- Product Attributes - Coating Type
- Plated
- Product Attributes - Finish
- Chrome
- Product Attributes - Filter Height (in.)
- 3.000 in.
- Product Attributes - Net Height from Carb Flange (in.)
- 3.750
- Product Attributes - Air Cleaner Filter
- Red cotton gauze
- Product Attributes - Nut Included
- Yes
- Product Attributes - Air Cleaner Nut Style
- Zinc plated wing nut
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed to fit all Edelbrock squarebore and Q-jet carburetors.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1224 |
| SFX Item ID | 4236808 |
| Supplier Item Code | 4236808 |
| Manufacturer SKU | 1224 |
| Manufacturer UPC | 85347012244 |
| Alternative References | EDB1224, EDL-1224, 3/8In |
