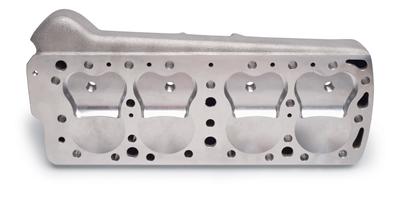

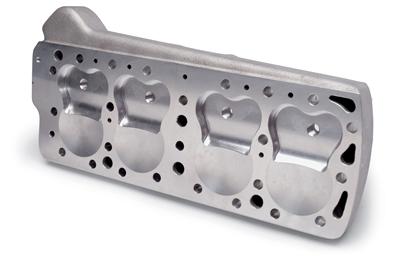

Edelbrock Cylinder Heads High Lift/Large Chamber for 1949-53 Model Ford Flatheads (Pair)
Edelbrock Cylinder Heads High Lift/Large Chamber for 1949-53 Model Ford Flatheads (Pair)
A$2,742.91
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

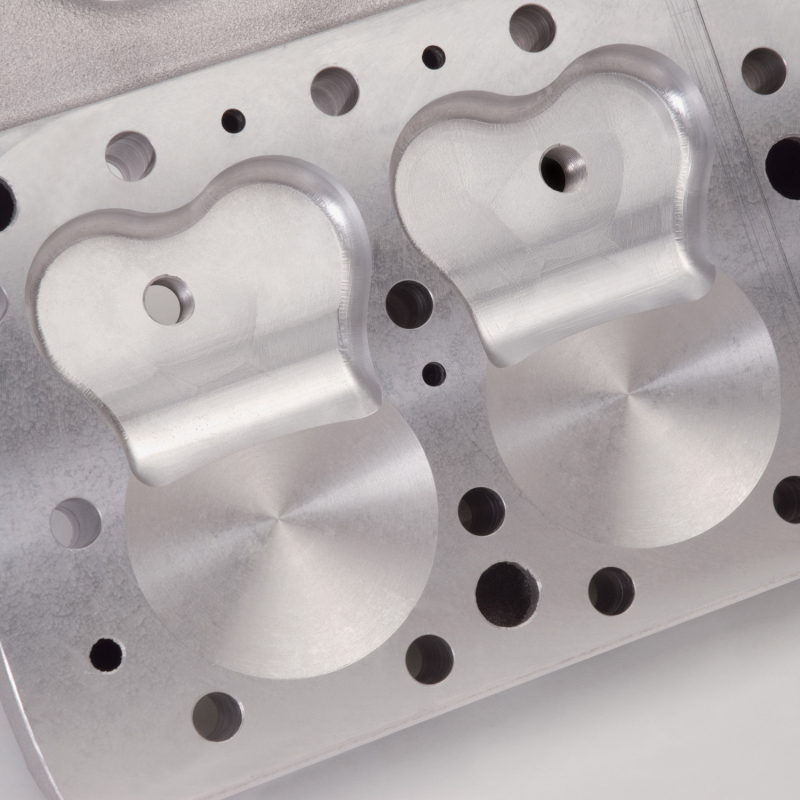

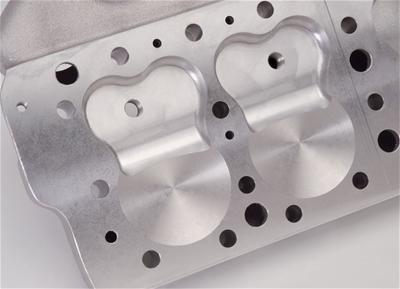

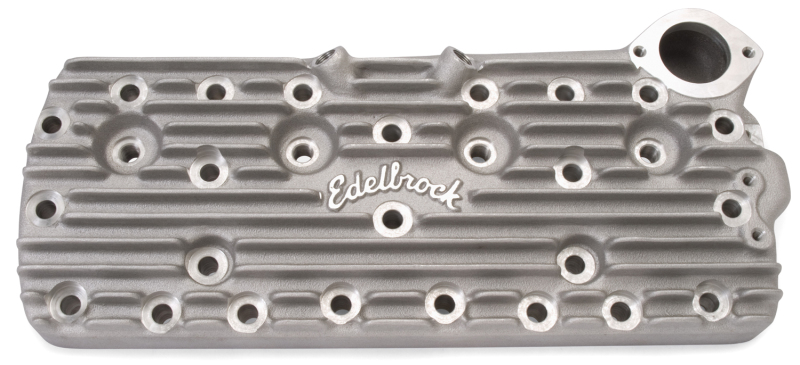

The Edelbrock #1116 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1116 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The Edelbrock #1116 Ford Flatheads High Lift/Large Chamber version feature a new "raised roof" combustion chamber design that is CNC machined for high lift cams and is perfect for reducing compression in supercharger applications or on low octane fuel. High Lift heads have increased valve clearance and increased flow capacity.
Product Overview
The Edelbrock #1116 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1116 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The Edelbrock #1116 Ford Flatheads High Lift/Large Chamber version feature a new "raised roof" combustion chamber design that is CNC machined for high lift cams and is perfect for reducing compression in supercharger applications or on low octane fuel. High Lift heads have increased valve clearance and increased flow capacity.
Features and Benefits
- Increased Flow Capacity
Product Details
| CNC Ported: | Yes |
|---|---|
| Combustion Chamber Volume: | 74 |
| Construction Type: | Flathead |
| Cylinder Head Type: | Standard |
| Deck Thickness: | 0.375 |
| Description: | Edelbrock Cylinder Head |
| EGR Port: | No |
| Emission: | Non-Emissions |
| Engine Make/Size: | Ford Flathead V8 |
| Family: | Flathead |
| Finish: | Satin |
| Grade Type: | Performance |
| Guide Plates Included: | No |
| Material: | Aluminum |
| Part Number: | ede1116 |
| Preparation: | Requires Professional Preparation (Bare) |
| Quantity: | Set of 2 |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included: | No |
| Series: | Flathead |
| Type: | Bare |
| Usage: | Street/Performance |
| Valve Chamber Depth Machined: | 0.480 |
| Valve Included: | No |
| Valve Springs Included: | No |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Application Summary
Ford:Flathead:239 (3.6L)/255 (4.2L);Mercury:Flathead:239 (3.6L)/255 (4.2L)
Part Type
Engine Cylinder Head
Features
- Increased Flow Capacity
Specifications
- Product Attributes - Brand
- Edelbrock
- Product Attributes - Manufacturer's Part Number
- 1116
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Edelbrock Ford Flathead Cylinder Heads
- Product Attributes - UPC
- 085347011162
- Product Attributes - Combustion Chamber Volume (cc)
- 74
- Product Attributes - Cylinder Head Style
- Bare
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Location
- Standard
- Product Attributes - Spark Plug Style
- Straight
- Product Attributes - Intake Valves Included
- No
- Product Attributes - Exhaust Valves Included
- No
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- No
- Product Attributes - Accessory Bolt Holes Drilled
- No
- Product Attributes - Valve Guides Included
- No
- Product Attributes - Valve Seats Machined
- No
- Product Attributes - Cylinder Head Color
- Natural
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Notes
- For use with 24 stud blocks. Relieved for high lift camshaft's.
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1116 |
| SFX Item ID | 4236027 |
| Supplier Item Code | 4236027 |
| Manufacturer SKU | 1116 |
| Manufacturer UPC | 85347011162 |
| Alternative References | v8;, EDB1116, EDL-1116 |
Brochures
Compatibility
Ford:Flathead:239 (3.6L)/255 (4.2L);Mercury:Flathead:239 (3.6L)/255 (4.2L)
