Edelbrock Throttle Linkage Carb Two Barrel Non Progressive 6X2 X1
Edelbrock Throttle Linkage Carb Two Barrel Non Progressive 6X2 X1
A$793.69
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

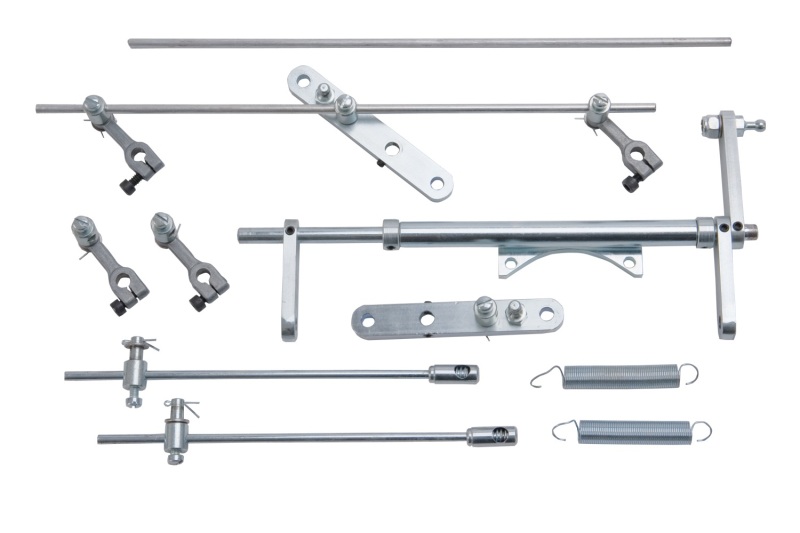

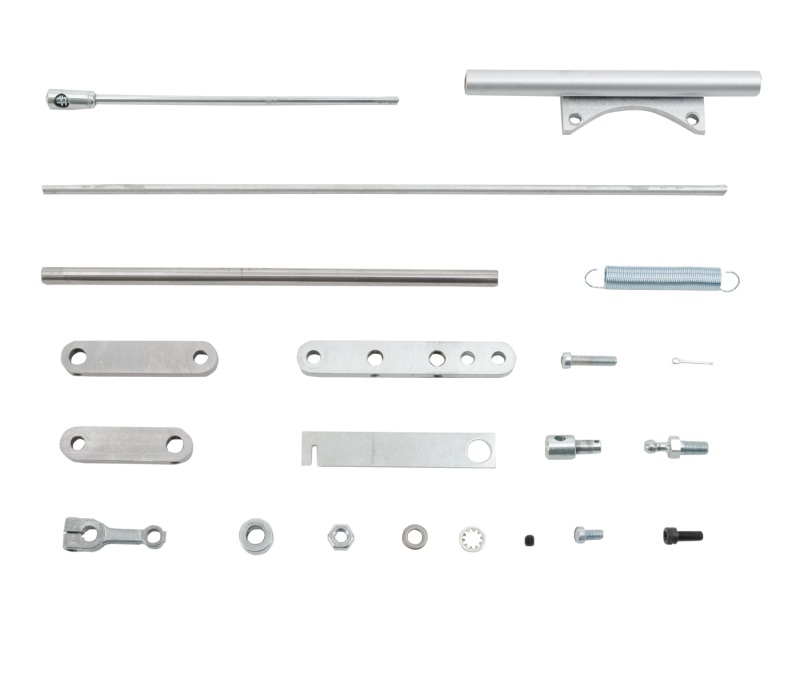

The Edelbrock part #1031 X1 Linkage Kit is designed to facilitate the synchronous operation of multiple two-barrel carburetors. The #1031 kit is designed to support six two-barrel carburetors installed on the Edelbrock X1 manifold for small block Chevy engines. It is a non-progressive linkage, meaning that all six carburetors will open up at the same time and will maintain the same throttle angle relative to pedal position. It is recommended that the linkage be installed with the manifold out of the vehicle, sitting on a level surface. A throttle linkage control arm and ball end stud are provided to connect to the vehicle's throttle rod or cable. Identify where the vehicle's throttle rod or cable will terminate so that the linkage control arm can be mounted to the linkage operating shaft accordingly. Also make note of any valve cover features that could interfere with the linkage, such as breathers and/or PCV valves.
Product Overview
The Edelbrock part #1031 X1 Linkage Kit is designed to facilitate the synchronous operation of multiple two-barrel carburetors. The #1031 kit is designed to support six two-barrel carburetors installed on the Edelbrock X1 manifold for small block Chevy engines. It is a non-progressive linkage, meaning that all six carburetors will open up at the same time and will maintain the same throttle angle relative to pedal position- It is recommended that the linkage be installed with the manifold out of the vehicle, sitting on a level surface. A throttle linkage control arm and ball end stud are provided to connect to the vehicle's throttle rod or cable. Identify where the vehicle's throttle rod or cable will terminate so that the linkage control arm can be mounted to the linkage operating shaft accordingly. Also make note of any valve cover features that could interfere with the linkage, such as breathers and/or PCV valves.- All adjustments made to the carburetor arms should be conducted with all carbs at the wide open throttle position to ensure synchronized operation of such.- Be sure to always check that the arms will not become inverted after any adjustment. Some trial and error will berequired to achieve a properly balanced set up.- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage
Features and Benefits
- Bolt-On
Product Details
| Adjustable: | Yes |
|---|---|
| Carburetor Style: | OEM |
| Description: | Edelbrock 94™ Straight Throttle Linkage Kit |
| Finish: | Satin Aluminum |
| Material: | Steel, Aluminum |
| Part Number: | ede1031 |
| RGL: | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Return Springs Included: | Yes |
| Usage: | Automotive |
| WARNING CA Proposition 65 Message: | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65: | Yes |
Part Type
Carburetor Accelerator Linkage Kit
Features
- Bolt-On
Specifications
- Adjustable:
- Yes
- Carburetor Style:
- OEM
- Description:
- Edelbrock 94™ Straight Throttle Linkage Kit
- Finish:
- Satin Aluminum
- Material:
- Steel, Aluminum
- Part Number:
- ede1031
- RGL:
- WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
- Return Springs Included:
- Yes
- Usage:
- Automotive
- WARNING CA Proposition 65 Message:
- WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
- WARNING CA Proposition 65:
- Yes
Reference Information
| Brand Name/s | Edelbrock |
|---|---|
| StreetFX SKU | ede1031 |
| SFX Item ID | 4235705 |
| Supplier Item Code | 4235705 |
| Manufacturer SKU | 1031 |
| Manufacturer UPC | 85347010318 |
| Alternative References | x1;, EDB1031, 6X2 |
