Description

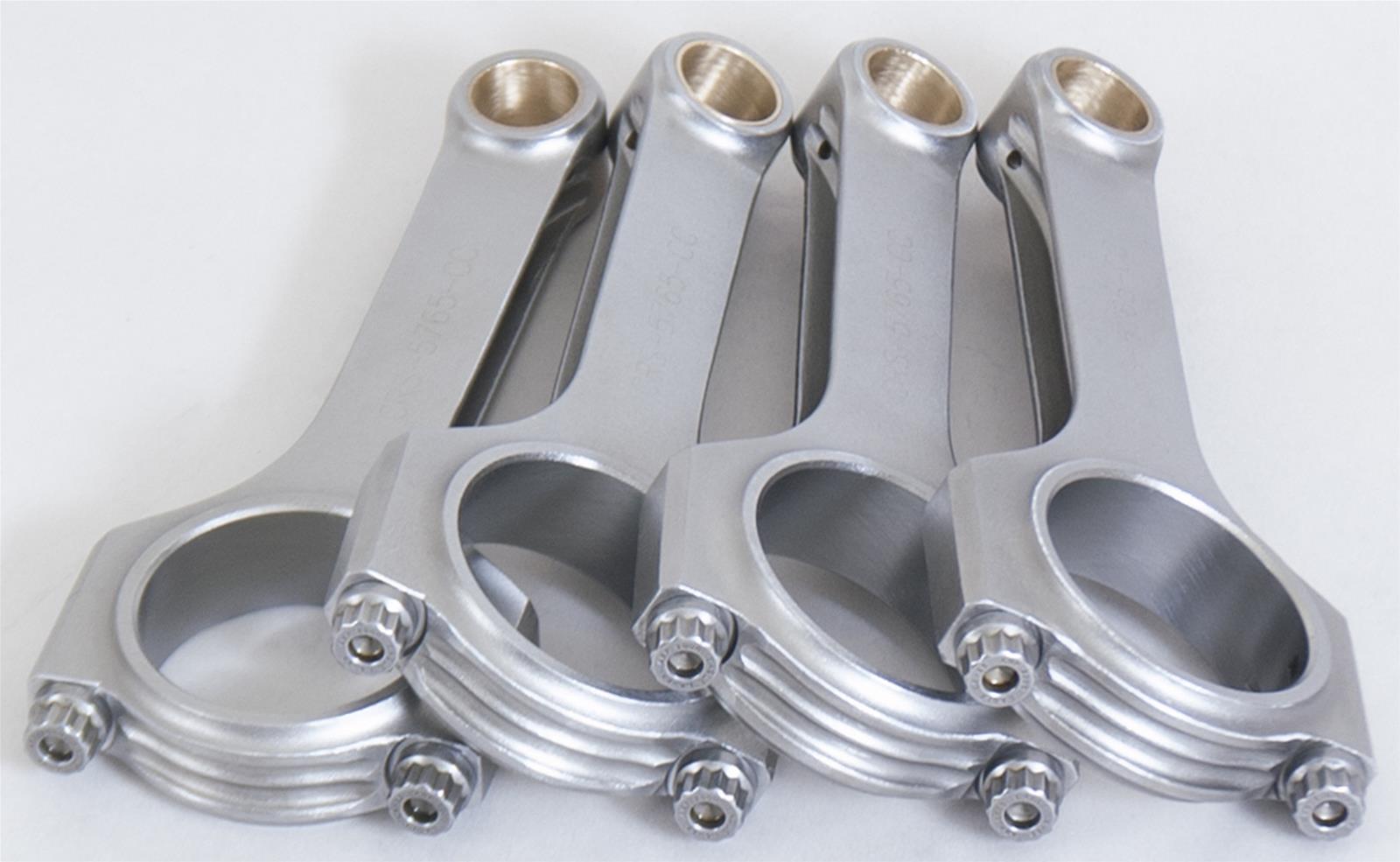

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.

Product Overview

Product Details

Big End Width:	0.945 in
Bolts:	3/8 in ARP 2000
Bushed for full-floating piston pin:	Yes
Center to Center Length:	5.765 in
Description:	Eagle Chevy 2.2L Ecotec Connecting Rod (SINGLE ROD)
Housing Bore:	2.052 in
Length Center Bore To Center Bore:	5.765
Material:	Forged 4340 steel
Part Number:	eagCRS5765C3D-1
Pin End Width:	0.945 in
Pin Size:	0.788 in
Prop 65 (C, R or CR):	C
Prop 65 - Long Label:	This product contains nickel, which is known to the State of California to cause cancer
Prop 65 - Short Label:	prop65_warning.jpg
Prop 65 Long:	This product contains nickel, which is known to the State of California to cause cancer.
Prop 65 Warning Chemical Listing:	Nickel
Prop 65 Yes/No:	Yes
Rod Journal:	1.93 in
Title:	ESP 4340 H-BEAM ROD CAVALIER 2.2 ECO

Application Summary

Chevy CAVALIER 2.2 ECO

Part Type

Engine Connecting Rod

Data: v4.2 - Upd: 2026-10-18 04:12:22

Specifications

Product Attributes - Brand: Eagle Specialty Products
Product Attributes - Manufacturer's Part Number: CRS5765C3D-1
Product Attributes - Part Type: Connecting Rods
Product Attributes - Product Line: Eagle H-Beam Connecting Rods
Product Attributes - UPC: 793348000909
Product Attributes - Connecting Rod Length Center to Center (in.): 5.765 in.
Product Attributes - Connecting Rod Beam Style: H-beam
Product Attributes - Connecting Rod Material: Forged 4340 steel
Product Attributes - Wrist Pin Style: Floating
Product Attributes - Pin End Bore Diameter: 0.788 in.
Product Attributes - Rod Journal Diameter (in.): 1.930
Product Attributes - Big End Bore Diameter (in.): 2.0520
Product Attributes - Quantity: Sold individually.
Product Attributes - Cap Retention Style: Cap screw
Product Attributes - Big End Width (in.): 0.945
Product Attributes - Clearanced for Stroker: No
Product Attributes - Connecting Rod Bolt Brand: ARP
Product Attributes - Connecting Rod Bolt Diameter: 3/8 in.
Product Attributes - Connecting Rod Bolt Material: ARP2000 alloy
Product Attributes - Fastener Tensile Strength (psi): 220,000 psi
Product Attributes - Connecting Rod Bolt Head Style: 12-point
Product Attributes - Approximate Connecting Rod Weight (g): 520
Product Attributes - Pin End Width (in.): 0.945 in.
Product Attributes - Weight Matched Set: Yes
Product Attributes - Remanufactured: No
Product Attributes - Magnafluxed: Yes
Product Attributes - Connecting Rod Color: Shot-peened
