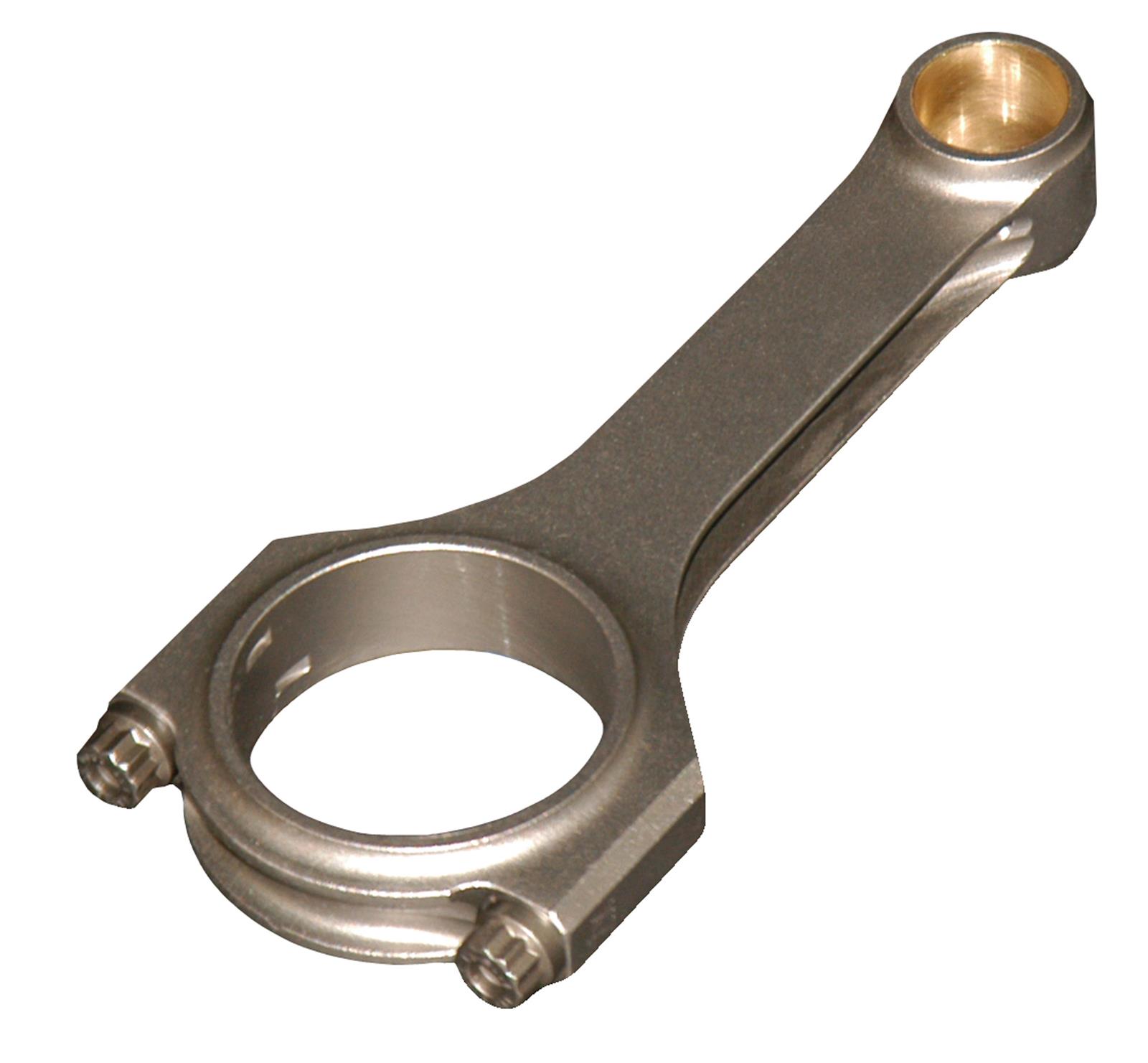

Eagle Chevrolet Small Block 5.700in Length Forged 4340 Steel Lightweight H-Beam Rods - Set of 8
Eagle Chevrolet Small Block 5.700in Length Forged 4340 Steel Lightweight H-Beam Rods - Set of 8
A$1,521.19
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Forged 4340 steel H-Beam lightweight connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. For restricted competition use.
Application Summary
CHEVY SMALL BLOCK
Part Type
Engine Connecting Rod
Specifications
- Product Attributes - Brand
- Eagle Specialty Products
- Product Attributes - Manufacturer's Part Number
- CRS5700BLW
- Product Attributes - Part Type
- Connecting Rods
- Product Attributes - Product Line
- Eagle CRS Lightweight H-Beam Connecting Rods
- Product Attributes - UPC
- 793348033204
- Product Attributes - Connecting Rod Length Center to Center (in.)
- 5.700 in.
- Product Attributes - Connecting Rod Beam Style
- H-beam
- Product Attributes - Connecting Rod Material
- Forged 4340 steel
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Pin End Bore Diameter
- 0.927 in.
- Product Attributes - Rod Journal Diameter (in.)
- 2.100
- Product Attributes - Big End Bore Diameter (in.)
- 2.2250
- Product Attributes - Quantity

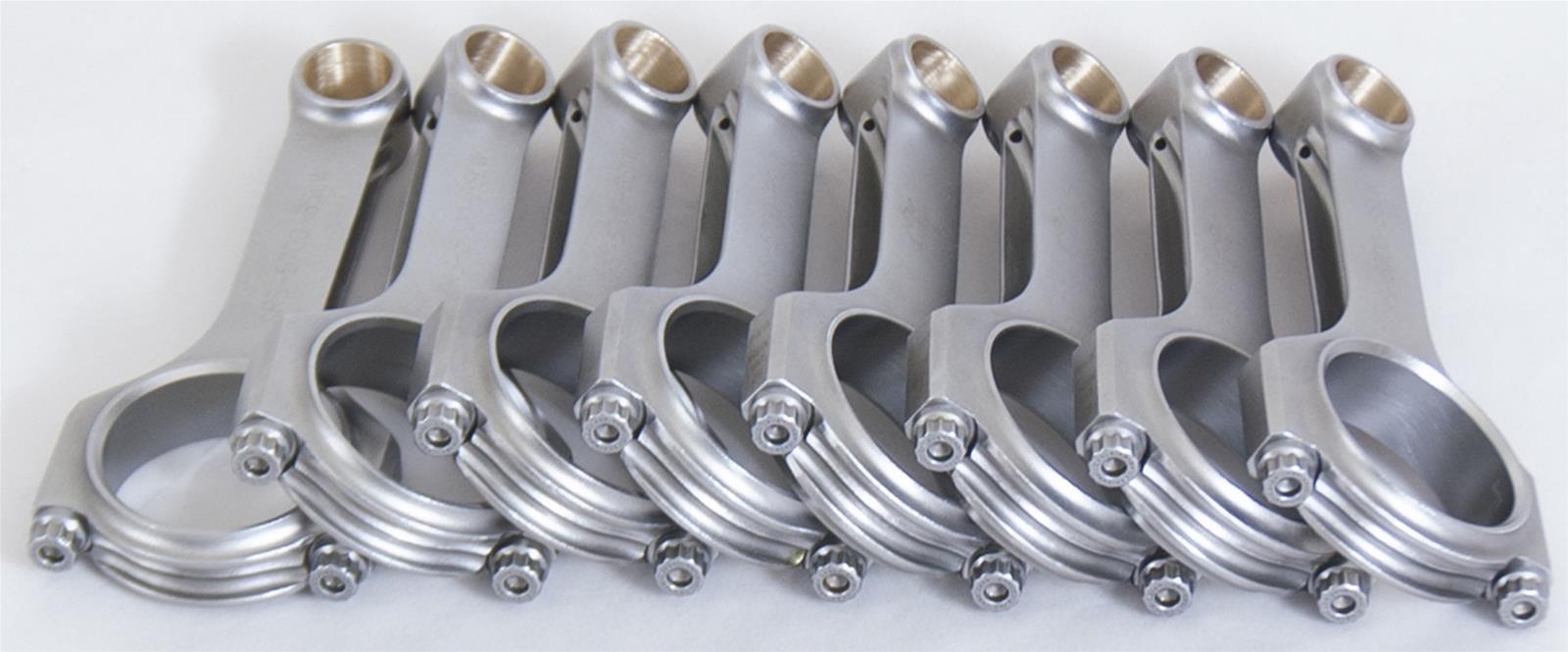

- Sold as a set of 8.
- Product Attributes - Cap Retention Style
- Cap screw
- Product Attributes - Big End Width (in.)
- 0.940
- Product Attributes - Clearanced for Stroker
- No
- Product Attributes - Connecting Rod Bolt Brand
- ARP
- Product Attributes - Connecting Rod Bolt Diameter
- 7/16 in.
- Product Attributes - Connecting Rod Bolt Material
- ARP2000 alloy
- Product Attributes - Fastener Tensile Strength (psi)
- 220,000 psi
- Product Attributes - Connecting Rod Bolt Head Style
- 12-point
- Product Attributes - Approximate Connecting Rod Weight (g)
- 535
- Product Attributes - Pin End Width (in.)
- 1.060 in.
- Product Attributes - Weight Matched Set
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Magnafluxed
- Yes
- Product Attributes - Connecting Rod Color
- Shot-peened
Reference Information
| Brand Name/s | Eagle |
|---|---|
| StreetFX SKU | eagCRS5700BLW |
| SFX Item ID | 4059317 |
| Supplier Item Code | 4059317 |
| Manufacturer SKU | CRS5700BLW |
| Manufacturer UPC | 793348033204 |
| Alternative References | ESP-CRS5700BLW, 5.700in |
Compatibility
CHEVY SMALL BLOCK
