DeatschWerks Stainless Steel 3/8in 5 Micron Universal Inline Fuel Filter Housing Kit (110mm)
DeatschWerks Stainless Steel 3/8in 5 Micron Universal Inline Fuel Filter Housing Kit (110mm)
A$248.40
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
E85 ethanol and other blended fuels have many contaminates capable of destroying fuel injectors and pumps. DeatschWerks inline fuel filters provide an extra layer of protection with their dual-stage, magneto-mechanical elements.
In the first stage, zero flow restrictions are accomplished through magnetic filtration. This process uses a 35mm neodymium magnet at the filter inlet to trap ferrous contaminants, keeping them from destroying fuel injectors and pumps. For maximum filtration and minimum flow restrictions, DW filters use serviceable pleated 304-series stainless steel elements to capture non-ferrous materials in stage two. They're compatible with a wide range of fuels, including pump gas, race gas, MTBE, ethanol, methanol, and diesel.
DW fuel filters are available in two bore sizes, three housing sizes, and are constructed from T6061 aluminum with -8 AN ORB inlets and outlets. Unique surge tank fuel filters that fit directly onto their popular 250iL and 350iL pumps are also available. For high temperature tolerance, incredible life spans, and excellent filtration, buy DeatschWerks inline fuel filters.
Product Overview

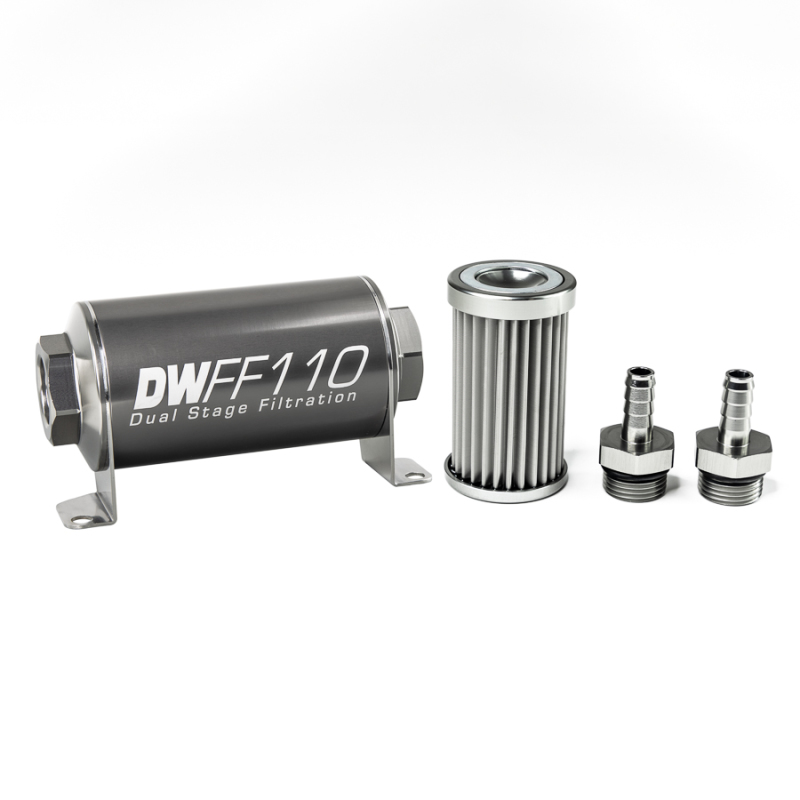

In-line fuel filter element and housing kit, stainless steel 5 micron, 3/8in hose barb, 110mm. Universal
Product Details
| Average Surface Area: | 40 sq in |
|---|---|
| California Proposition 65: | WARNinG: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category: | Filter Kits |
| Description: | 3/8 in, 5 micron, 110mm In-line fuel filter kit |
| External Material: | T6061 Aluminum |
| Flow Rate: | 900lph |
| Inlet Type: | 3/8 in |
| Length: | 110 mm |
| Magnetic Filtration: | 35mm Neodymium Ring |
| Mechanical Filtration: | 304 Stainless Steel Mesh |
| Micron Rating: | 5 |
| Outlet Type: | 3/8 in |
| Part Number: | dwk8-03-110-005K-38 |
| Pore Size: | 5 Micron |
| Price Group: | P1 |
| Product Photo 1: | 8-03-110-005K-38.jpg |
| Shopify Category: | Motor Vehicle Fuel Systems |
| Shopify Collection: | Filters |
| Shopify Type: | Fuel Filter |
| Tech Data Sheet: | DWFF110_Tech_Sheet_Rev_04_8_21_(8-03-110-xxx).pdf |
Part Type
Fuel Filters
Specifications
- Product Attributes - UPC
- 00887753537522
- Product Attributes - Brand
- DeatschWerks
- Product Attributes - Notes
- Includes two -8 AN male straight cut O-ring to 3/8 in. hose barb fittings.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Fuel Filters
- Product Attributes - Product Line
- DeatschWerks Inline Fuel Filters
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Clamps Included
- No
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Inlet Attachment
- Female straight cut O-ring
- Product Attributes - Fittings Included
- Yes
- Product Attributes - Fuel Filter Style
- Inline
- Product Attributes - Outlet Attachment
- Female straight cut O-ring
- Product Attributes - Filter Housing Color
- Silver/Gray anodized
- Product Attributes - Overall Length (in.)
- 4.33 in.
- Product Attributes - Fuel Filter Inlet Size
- -8 AN
- Product Attributes - Filter Element Included
- Yes
- Product Attributes - Filter Element Material
- Stainless steel mesh
- Product Attributes - Filter Housing Material
- Billet aluminum
- Product Attributes - Fuel Filter Outlet Size
- -8 AN
- Product Attributes - Mounting Bracket Included
- Yes
- Product Attributes - Manufacturer's Part Number
- 8-03-110-005K-38
- Product Attributes - Smallest Particle Filtered
- 5 microns
Reference Information
| Brand Name/s | Deatschwerks |
|---|---|
| StreetFX SKU | dwk8-03-110-005K-38 |
| SFX Item ID | 4146257 |
| Supplier Item Code | 4146257 |
| Manufacturer SKU | 8-03-110-005K-38 |
| Manufacturer UPC | 887753537522 |
| Alternative References | (110mm), 3/8in |
