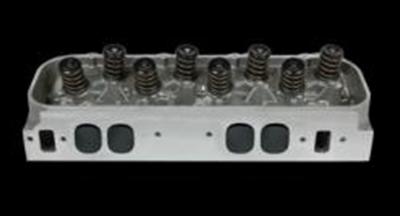

Dart Pro 1 Marine Aluminum Cylinder Heads 19000112M Head, Marine, Assembled, Aluminum, Chromate, 110cc Chamber, 275cc Intake Runner, Chevy, Big Block, Each
Dart Pro 1 Marine Aluminum Cylinder Heads 19000112M Head, Marine, Assembled, Aluminum, Chromate, 110cc Chamber, 275cc Intake Runner, Chevy, Big Block, Each
A$5,697.63
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Power your boat like a pro with Dart Pro 1 Marine cylinder heads. Their aluminum cylinder heads are offered bare or assembled for out-of-the-box performance. Pro 1 Marine heads are cast from 355-T61 aerospace alloy with an exclusive chromate finish to inhibit corrosion and provide superior strength and integrity. These Dart cylinder heads have highly efficient chambers with race-proven features, including rolled valve angles, an improved spark plug location, extra-long intake valves, raised exhaust ports, and fast-burn chambers. Assembled heads include super-tough Inconel exhaust valves to withstand the extended running times and temperatures typical of marine usage. Top your boat block with a couple of power makers--Dart Pro 1 Marine aluminum cylinder heads.
Part Type
Cylinder Heads
Specifications
- Product Attributes - Brand
- Dart
- Product Attributes - Manufacturer's Part Number
- 19000112M
- Product Attributes - Part Type
- Cylinder Heads
- Product Attributes - Product Line
- Dart Pro 1 Marine Aluminum Cylinder Heads
- Product Attributes - UPC
- 807051011272
- Product Attributes - Combustion Chamber Volume (cc)
- 121
- Product Attributes - Intake Runner Volume (cc)
- 275cc
- Product Attributes - Cylinder Head Style
- Assembled
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Camshaft Style
- Solid roller
- Product Attributes - Intake Port Shape
- Oval
- Product Attributes - Intake Valve Diameter (in.)
- 2.250 in.
- Product Attributes - CNC-Machined Combustion Chamber
- No
- Product Attributes - CNC-Machined Intake Runner
- No
- Product Attributes - CNC-Machined Exhaust Runner
- No
- Product Attributes - Intake Port Location
- Standard
- Product Attributes - Exhaust Port Shape
- Round
- Product Attributes - Exhaust Port Location
- Raised
- Product Attributes - Spark Plug Style
- Angle
- Product Attributes - Intake Valves Included
- Yes
- Product Attributes - Exhaust Valves Included
- Yes
- Product Attributes - Exhaust Valve Diameter (in.)
- 1.880 in.
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Maximum Valve Lift (in.)
- 0.700 in.
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.550 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Locks Included
- Yes
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Rocker Arm Studs Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Rocker Arm Nuts Included
- No
- Product Attributes - Guideplates Included
- Yes
- Product Attributes - Valve Cover Mounting Style
- Perimeter bolt
- Product Attributes - Accessory Bolt Holes Drilled
- Yes
- Product Attributes - Intake Valve Angle
- 24
- Product Attributes - Exhaust Valve Angle
- 24
- Product Attributes - Valve Guides Included
- Yes
- Product Attributes - Valve Guide Material
- Bronze
- Product Attributes - Valve Seats Machined
- Yes
- Product Attributes - Cylinder Head Color
- Gray
- Product Attributes - Steam Holes Drilled
- No
- Product Attributes - Oiling Style
- Through pushrod
- Product Attributes - Machined for O-Ring
- No
- Product Attributes - Heat Crossover
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Dart |
|---|---|
| StreetFX SKU | drt19000112M |
| SFX Item ID | 5089828 |
| Supplier Item Code | 5089828 |
| Manufacturer SKU | 19000112M |
| Manufacturer UPC | 807051011272 |
| Alternative References | 110cc, 275cc |
