Diamond Pistons

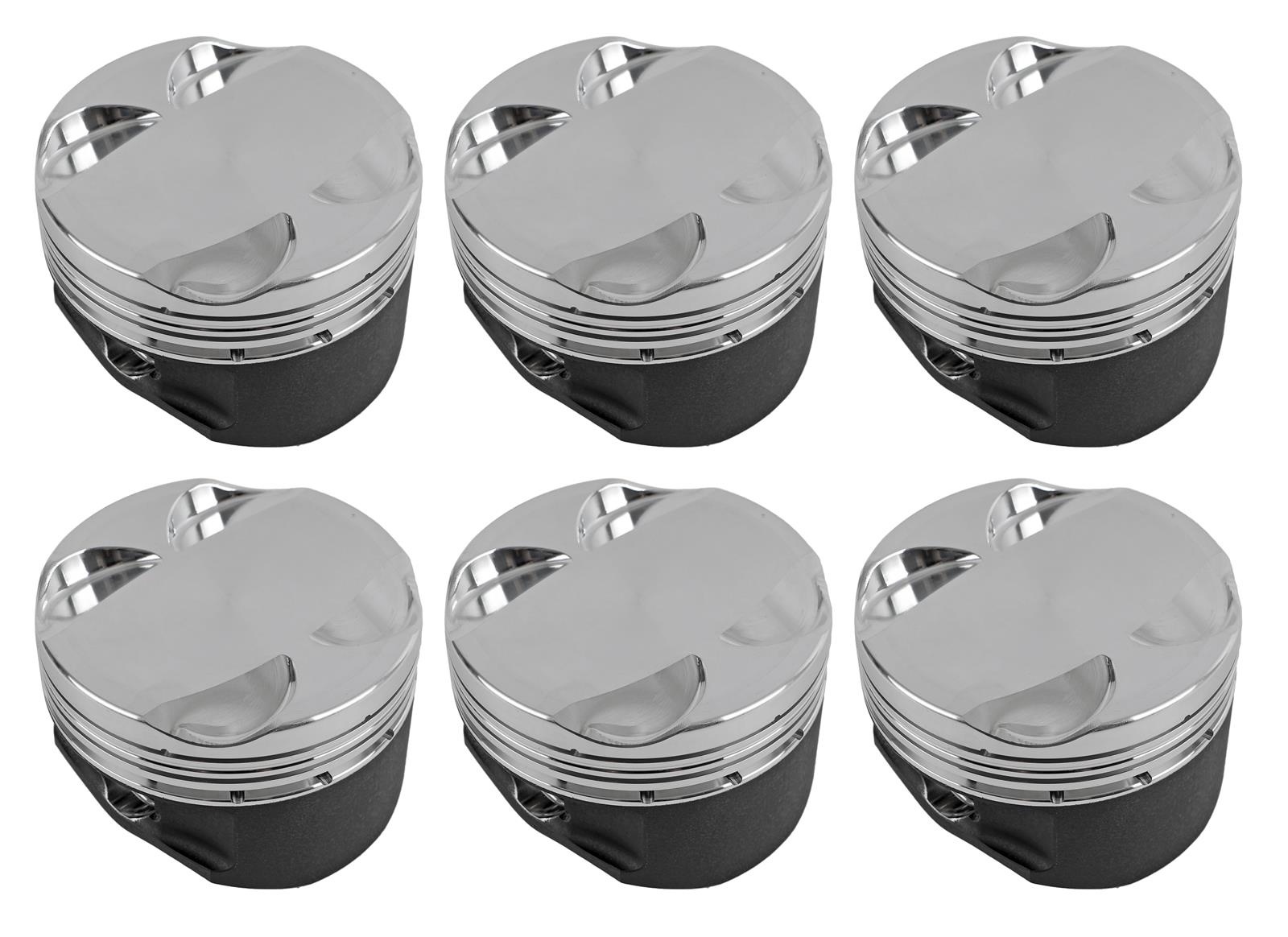

Diamond Pistons Toyota 2JZGTE Series 37004-6-H Pistons, Dish, Series, Forged Aluminum, H-13 Wrist Pins, 86.50mm Bore, -10.40cc Head Volume, 2JZGTE, Set of 6

SKU: DPP37004-6-H

Pistons
Diamond Pistons Toyota 2JZGTE Series 37004-6-H Pistons, Dish, Series, Forged Aluminum, H-13 Wrist Pins, 86.50mm Bore, -10.40cc Head Volume, 2JZGTE, Set of 6

Diamond Pistons

Diamond Pistons Toyota 2JZGTE Series 37004-6-H Pistons, Dish, Series, Forged Aluminum, H-13 Wrist Pins, 86.50mm Bore, -10.40cc Head Volume, 2JZGTE, Set of 6

SKU: DPP37004-6-H

Pistons
A$2,871.79
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

Diamond Pistons Toyota 2JZGTE Series pistons are ideal for either the street or the drag strip. These 2618 aluminum pistons are significantly lighter than the factory pistons and superior in strength, allowing your engine to handle that extra horsepower. The 2618 alloy is excellent for boosted engines such as the Toyota 2JZGTE, especially when increasing boost.

Diamond Pistons Toyota 2JZGTE Series piston feature:

* 3-D milling on piston crowns for "ready to install" finish
* Offset pins for quiet operation
* Side gas ports for better ring seal
* Ratios figured for 87mm x 0.040 in. head gasket
* Moly skirt coating for friction-loss and skirt-wear protection
* Top ring down dimension 0.300 in. 1.338cd to 0.280 in. 1.180cd
* Ratios figured for 0.040 in. head gasket at 8.937 in. deck height.
* Premium 1.0mm x 1.2mm x 2.8mm ring package included
* Over-sized valve pockets for "larger than stock" valve sizes
* Valve pocket depth 0.245 in. intake and 0.230 in. exhaust

Part Type

Pistons

Data: v4.2 - Upd: 2026-10-14 08:48:36

Specifications

Product Attributes - Brand
Diamond Pistons
Product Attributes - Manufacturer's Part Number
37004-6-H
Product Attributes - Part Type
Pistons
Product Attributes - Product Line
Diamond Pistons Toyota 2JZGTE Series Pistons
Product Attributes - UPC
193564404374
Product Attributes - Piston Rings Included
Yes
Product Attributes - Bore (in.)
3.405 in.
Product Attributes - Bore (mm)
86.500mm
Product Attributes - Stroke
86.00mm
Product Attributes - Engine Stroke Type
Stock
Product Attributes - Rod Length
5.590 in.
Product Attributes - Piston Style
Dish, with four valve reliefs
Product Attributes - Piston Material
Forged aluminum
Product Attributes - Compression Height (in.)
1.338 in.
Product Attributes - Piston Head Volume (cc)
+10.40cc
Product Attributes - Wrist Pin Style
Press-fit or floating
Product Attributes - Wrist Pin Retainers Included
Yes
Product Attributes - Wrist Pin Included
Yes
Product Attributes - Pin Diameter (in.)
0.866 in.
Product Attributes - Piston Ring Thickness
1.00mm x 1.20mm x 2.80mm
Product Attributes - File Fit
No
Product Attributes - Gapless
No
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold as a set of 6.
Product Attributes - Notes
Includes upgraded H-13 wrist pins.

Reference Information

Brand Name/s Diamond Pistons
StreetFX SKU dpp37004-6-H
SFX Item ID 5527011
Supplier Item Code 5527011
Manufacturer SKU 37004-6-H
Manufacturer UPC 193564404374
Alternative References 2JZGTE, H-13, 86.50mm, -10.40cc

Compatibility

Application Data
  • MakeTOYOTA
    Beginning Year1993
    Ending Year1998
    Engine TypeL6
    Engine FamilyToyota inline 6-cylinder
    Engine Size3.0L/2997cc
