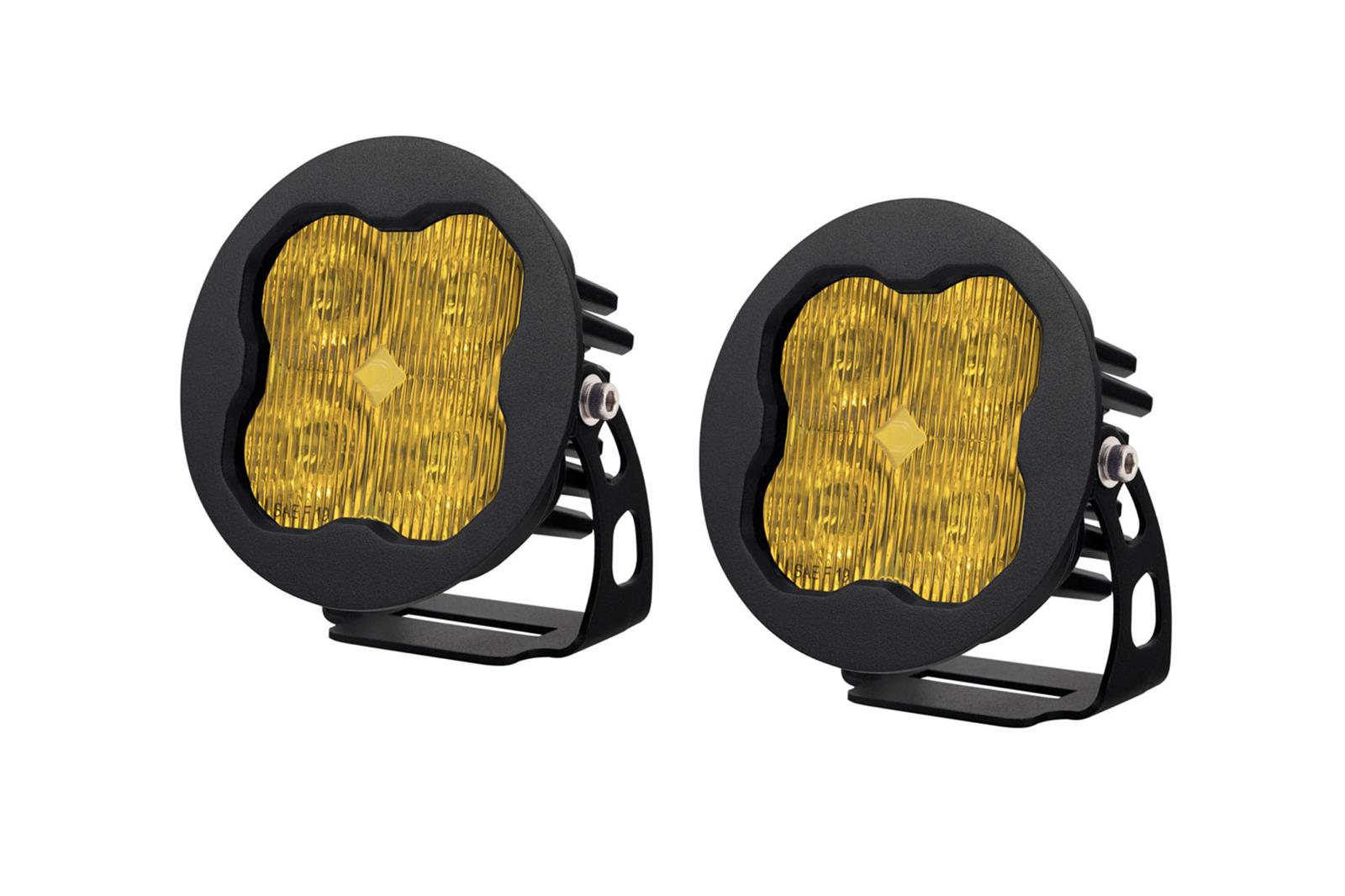

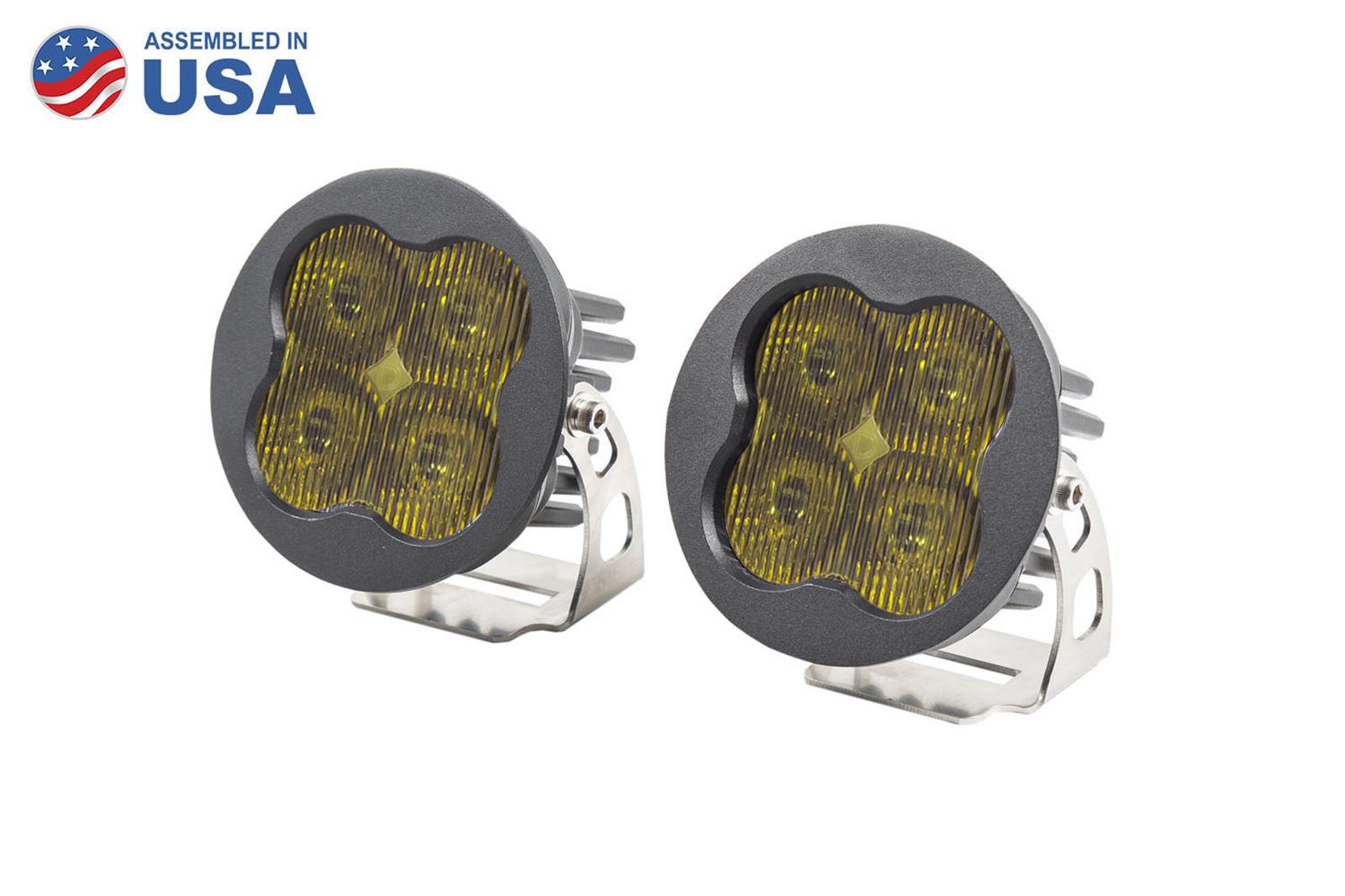

Diode Dynamics SS3 LED Pods DD6142P Auxiliary Lights, Pods, Sport, SAE Fog, Round, Black, Yellow Lens, 12 V, 14.5 Watts, Pair
Diode Dynamics SS3 LED Pods DD6142P Auxiliary Lights, Pods, Sport, SAE Fog, Round, Black, Yellow Lens, 12 V, 14.5 Watts, Pair
A$540.32
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Diode Dynamics SS3 LED pods produce higher output intensity than any other 3 in. light on the market. These auxiliary lights are designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. Their pin-fin heatsink design offers superior thermal dissipation; the housings feature durable powdercoated aluminum construction and integrated Deutsch-style connectors. Order the light style and options best suited for your vehicle application.
Additional details:
* TIR optics collect all of the light from the LED and direct it only where you need it, drastically reducing glare and improving total efficiency. The custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output. This innovative feature, when coupled with high-intensity LED chips, delivers much greater total intensity than other LED pods
* All beam pattern options were designed with optical simulation modeling, to shape the output in a highly functional beam pattern.
* Four light styles include:
- SAE Driving: Designed to supplement your high beams, but great for general illumination, as well. The pattern shines in an 18 x 8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.
- SAE Fog: Provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. Choose your output color of cool white or yellow.
- Flood: Pattern designed to provide uniform, even illumination with a full 60 x 60 degree spread of light. Using pillow optics on the outer lens surface, this provides a true optically designed spread for consistent illumination throughout.
- Spot: An unmodified pattern, shining light directly from the TIR optic—resulting in a highly focused 6-degree beam of light, perfect for directing light far into the distance
Part Type
Light Bars, Light Pods and Fog Lights
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD6142P
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - Product Line
- Diode Dynamics SS3 LED Pods
- Product Attributes - UPC
- 00691026120058
- Product Attributes - Light Type
- Light pod
- Product Attributes - Bulb Type
- LED
- Product Attributes - Light Pod Type
- Round
- Product Attributes - Optics Style
- Fog
- Product Attributes - Diameter (in.)
- 3.900 in.
- Product Attributes - Watts
- 14.5 watts
- Product Attributes - Amp Draw
- 1.10 amps
- Product Attributes - Maximum Voltage
- 16 V
- Product Attributes - Lumens
- 1,300
- Product Attributes - Beam Pattern
- 80 degree
- Product Attributes - Number of LEDs
- 4
- Product Attributes - Bulb Color
- Yellow
- Product Attributes - Lens Color
- Clear
- Product Attributes - Housing Color
- Black
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Light Cover Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Relay Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD6142P |
| SFX Item ID | 4778417 |
| Supplier Item Code | 4778417 |
| Manufacturer SKU | DD6142P |
| Manufacturer UPC | 691026120058 |
| Alternative References | DOD-DD6142P, SS3 |
