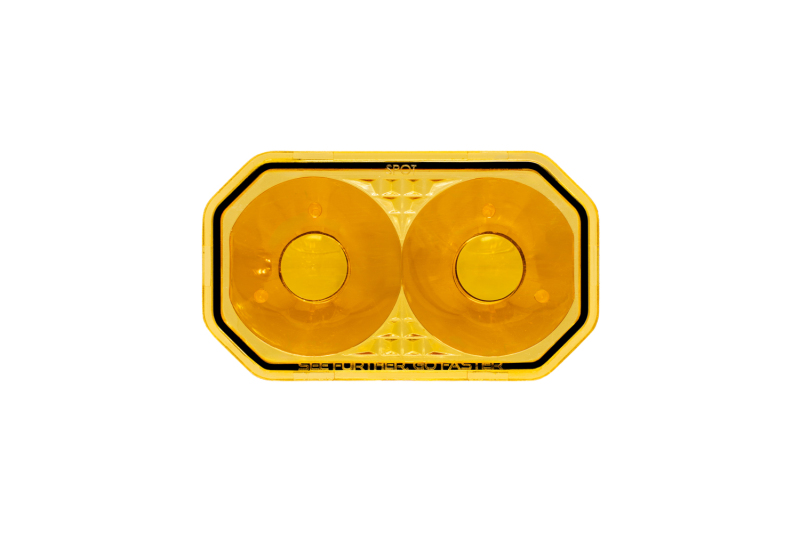

Diode Dynamics C2 2.0 Lens Combo/Driving Yellow

SKU: DIODD8545

DIO Lens Cover...

Diode Dynamics C2 2.0 Lens Combo/Driving Yellow

SKU: DIODD8545

DIO Lens Cover...

A$79.07
Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

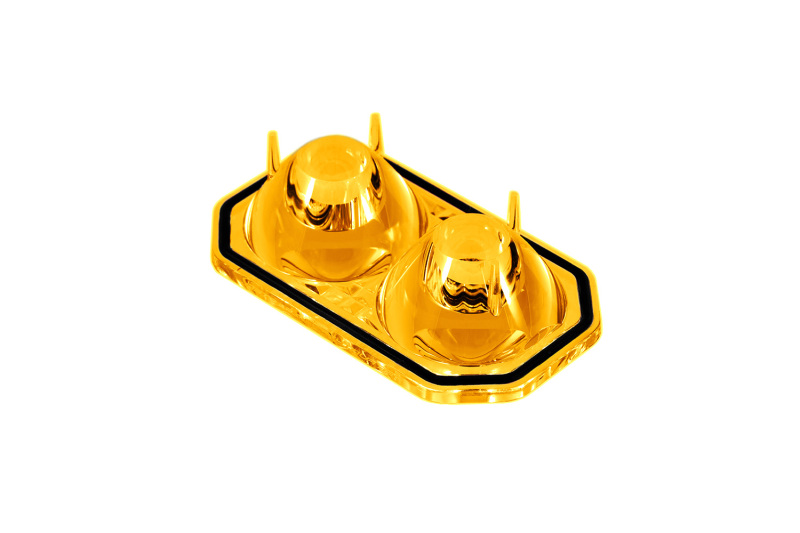

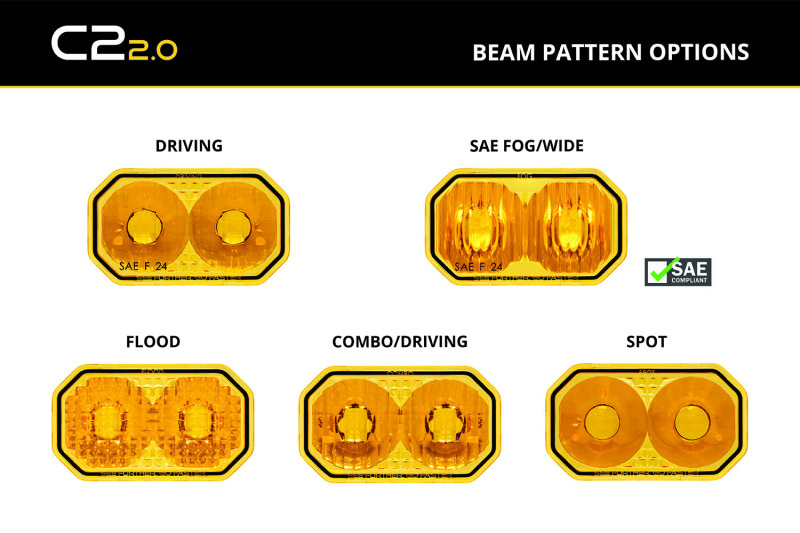

Features Yellow replacement lens for C2 2.0 LED Pod Made out of durable polycarbonate, with preinstalled o-ring seal Advanced TIR optics provide high efficiency and focus Available in Driving, SAE Fog/Wide, Flood, Combo/Driving, or Spot beam patterns Overview. This yellow lens is a direct replacement for the original main lens in your C2 2.0 LED Pod. It can be used to change both the color and output pattern, with a quick swap! Made of durable optical-grade polycarbonate, each lens comes with an integrated o-ring to maintain a watertight seal. Colors. The C2 2.0 now uses the same high-output Cool White LED chips for both white and yellow LED pods. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from white to yellow! Easy Swap. Changing the main lens in the C2 2.0 takes just a few seconds! Remove the four torx-head screws from the back frame, pull the old lens and o-ring assembly out, and put in your new lens, which comes with the o-ring preinstalled. Take care not to touch the inner optical surface of your new lens during the swap, or wear a pair of gloves to keep things clean. The locating pins ensure correct alignment and rotation. Reinstall the four screws so they are very hand-tight, and you are ready to shine in your new color or beam pattern! Focused Performance. Our patented TIR (Total Internal Reflection) optics harness all of the light from the LED and direct it precisely where you need it, cutting glare and boosting efficiency. Warranty. If you choose to disassemble and replace the lens on your C2 2.0 LED pod, you still keep your limited lifetime warranty intact. However, we may require the light to be sent in for any service and repair.

Product Overview

Features Yellow replacement lens for C2 2.0 LED Pod Made out of durable polycarbonate, with preinstalled o-ring seal Advanced TIR optics provide high efficiency and focus Available in Driving, SAE Fog/Wide, Flood, Combo/Driving, or Spot beam patterns Overview. This yellow lens is a direct replacement for the original main lens in your C2 2.0 LED Pod. It can be used to change both the color and output pattern, with a quick swap! Made of durable optical-grade polycarbonate, each lens comes with an integrated o-ring to maintain a watertight seal. Colors. The C2 2.0 now uses the same high-output Cool White LED chips for both white and yellow LED pods. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from white to yellow! Easy Swap. Changing the main lens in the C2 2.0 takes just a few seconds! Remove the four torx-head screws from the back frame, pull the old lens and o-ring assembly out, and put in your new lens, which comes with the o-ring preinstalled. Take care not to touch the inner optical surface of your new lens during the swap, or wear a pair of gloves to keep things clean. The locating pins ensure correct alignment and rotation. Reinstall the four screws so they are very hand-tight, and you are ready to shine in your new color or beam pattern! Focused Performance. Our patented TIR (Total Internal Reflection) optics harness all of the light from the LED and direct it precisely where you need it, cutting glare and boosting efficiency. Warranty. If you choose to disassemble and replace the lens on your C2 2.0 LED pod, you still keep your limited lifetime warranty intact. However, we may require the light to be sent in for any service and repair.


Features and Benefits

  • Replacement lens for your C2 2.0 Pod Light
  • Allows you to change the color or optic on your pod

Product Details

Add-On:N/A
Beam Angle:Combo/Driving 55°x20°
Description:Replacement lens for your C2 2.0 Pod Light.
Material:Polycarbonate
Part Number:dioDD8545
Product Dimensions (in):2in x 3in x 2in
Prop 65 Yes/No:Yes

Data: v4.2 - Upd: 2026-10-15 12:58:58

Features

  • Allows you to change the color or optic on your pod
  • Replacement lens for your C2 2.0 Pod Light

Specifications

Add-On:
N/A
Beam Angle:
Combo/Driving 55°x20°
Description:
Replacement lens for your C2 2.0 Pod Light.
Material:
Polycarbonate
Part Number:
dioDD8545
Product Dimensions (in):
2in x 3in x 2in
Prop 65 Yes/No:
Yes

Reference Information

Brand Name/s Diode Dynamics
StreetFX SKU dioDD8545
SFX Item ID 6653433
Supplier Item Code 6653433
Manufacturer SKU DD8545
Manufacturer UPC 195995143716
