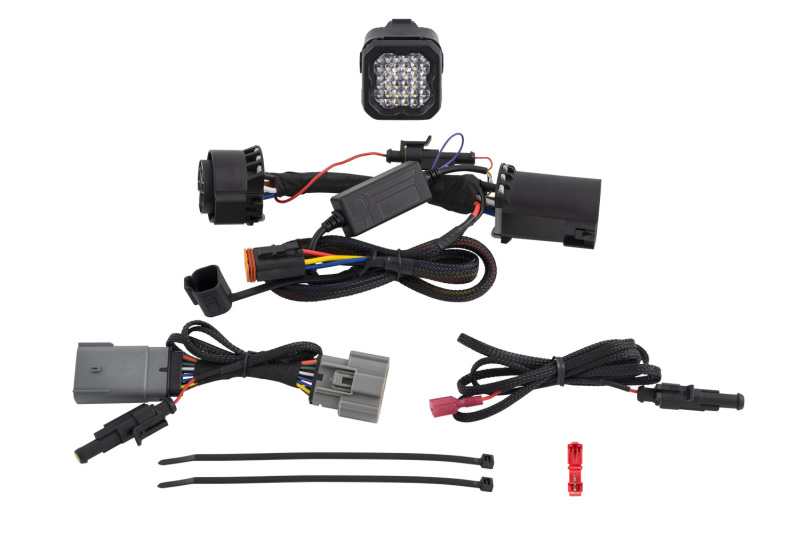

Diode Dynamics Hitch Mount LED Pod Reverse Kit for Ford F-150 15-20 C1R
Diode Dynamics Hitch Mount LED Pod Reverse Kit for Ford F-150 15-20 C1R
A$440.85
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
FeaturesAllows for installation of SSC1 or C1R LED pods into the trailer hitch.Provides high-power reverse light and red accent light.Simple 5-minute installation with no need for custom wiring or routing wires.Optional SafetyStrobe brake light strobing.Designed and assembled in USA.Overview. Add significantly more light output when backing up at night with our HitchMount Reverse Light Kit compatible with Ford F-150 2015-2020! This kit allows you to mount one SSC1 or C1R LED pod in your 2-inch or 2.5-inch trailer hitch receiver adding a high-power reverse light additional running light and an optional 4th brake light with the C1R option. With the included wiring harness this kit connects to your vehicle's factory connectors under the bumper.Brighter Backlight. Factory reverse bulbs just don't provide enough light output to back up at night confidently. By pairing our patented TIR optics with high-powered LEDs the SSC1 and C1R included in this kit provides an additional reverse light that's several times brighter than stock bulbs alone. Plus they automatically come on when the vehicle is put in reverse!Simple Installation. The patent-pending snap-fit design allows you to install this mount in minutes without any drilling or need for a hitch pin. Simply insert the HitchMount into your trailer hitch receiver and the snap-fit side mounts will snap into place. Installation couldn't be easier and takes less than five minutes!Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
Product Overview
Features
Allows for installation of SSC1 or C1R LED pods into the trailer hitch.
Provides high-power reverse light and red accent light.
Simple 5-minute installation with no need for custom wiring or routing wires.
Optional SafetyStrobe brake light strobing.
Designed and assembled in USA.

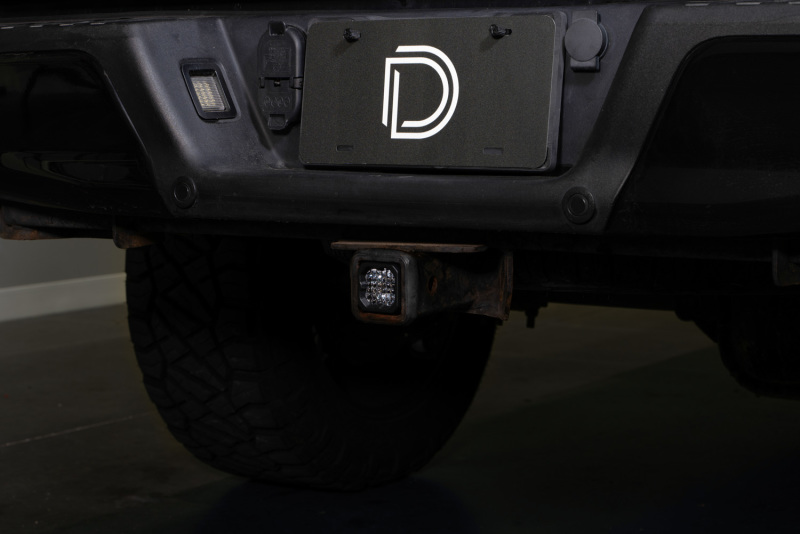

Overview. Add significantly more light output when backing up at night with our HitchMount Reverse Light Kit compatible with Ford F-150 2015-2020! This kit allows you to mount one SSC1 or C1R LED pod in your 2-inch or 2.5-inch trailer hitch receiver adding a high-power reverse light additional running light and an optional 4th brake light with the C1R option. With the included wiring harness this kit connects to your vehicle's factory connectors under the bumper.
Brighter Backlight. Factory reverse bulbs just don't provide enough light output to back up at night confidently. By pairing our patented TIR optics with high-powered LEDs the SSC1 and C1R included in this kit provides an additional reverse light that's several times brighter than stock bulbs alone. Plus they automatically come on when the vehicle is put in reverse!
Simple Installation. The patent-pending snap-fit design allows you to install this mount in minutes without any drilling or need for a hitch pin. Simply insert the HitchMount into your trailer hitch receiver and the snap-fit side mounts will snap into place. Installation couldn't be easier and takes less than five minutes!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
Features and Benefits
- Allows you to mount a C1R LED pod in the Ford F-150 trailer hitch receiver
- Adds a powerful reverse light 4th brake light and additional running light
- Simple 5-minute installation
- Optional SafetyStrobe
- Designed and assembled in USA
Product Details
| Add-On: | N/A |
|---|---|
| Beam Angle: | Flood 80°x50° |
| Bulb Quantity: | 0 |
| Bulbs Included: | No |
| Color Temp: | 6000K |
| Compliance Rating: | SAE J575 Durability Test |
| DOT Approved: | No |
| Description: | Allows you to mount a C1R LED pod in the Ford F-150 trailer hitch receiver. |
| Housing Material: | Steel |
| Input Power (watts): | 14.1 |
| Intensity (lux): | 480 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Lens Color: | Clear |
| Lens Material: | Polycarbonate |
| Lens Width: | 2 |
| Material: | Steel |
| Measured Output (lumens): | 1080 lm |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Part Number: | dioDD7648 |
| Prop 65 Yes/No: | Yes |
| Street Legal: | Yes |
| Universal Or Specific Fit: | Specific |
| Voltage: | 9-16V |
| Wiring Harness Included: | Yes |
Part Type
Back Up Light Assembly
Features
- Adds a powerful reverse light 4th brake light and additional running light
- Allows you to mount a C1R LED pod in the Ford F-150 trailer hitch receiver
- Designed and assembled in USA
- Optional SafetyStrobe
- Simple 5-minute installation
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD7648
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - UPC
- 00195995132307
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD7648 |
| SFX Item ID | 4187618 |
| Supplier Item Code | 4187618 |
| Manufacturer SKU | DD7648 |
| Manufacturer UPC | 195995132307 |
| Alternative References | DODDD7648, F-150, C1R |
