Diode Dynamics
Diode Dynamics Stage Series Ditch Light Bracket Kit for 2019-Present Ram
dioDD7594P
A$196.27

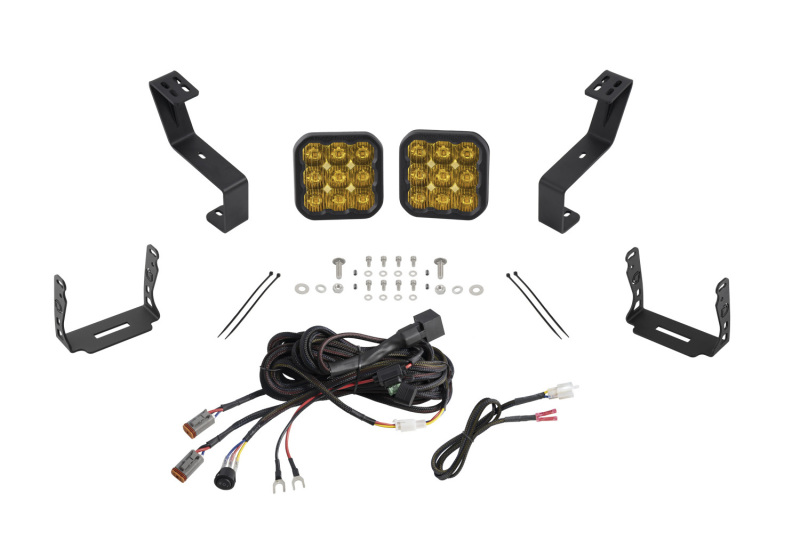

Diode Dynamics SS5 Bumper LED Pod Light Kit for 2019-Present Ram - Sport Yellow Driving
Diode Dynamics SS5 Bumper LED Pod Light Kit for 2019-Present Ram - Sport Yellow Driving
A$1,094.72
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
FeaturesBolt-on fitment compatible with Ram 1500 2019-2023Ultra-high intensity with custom-engineered TIR opticsSelectable backlight color with eight color optionsTorture-tested heavy-duty constructionAssembled in USAOverviewPerfect Fitment. The Bumper LED Pod Light Kit compatible with Ram 1500 2019-2023 from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points.Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you(TM) re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There(TM) s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.
Product Overview
Features
Bolt-on fitment compatible with Ram 1500 2019-2024
Ultra-high intensity, with custom-engineered TIR optics
Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Assembled in USA
Overview
Perfect Fitment. The Bumper LED Pod Light Kit compatible with Ram 1500 2019-2024 from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points.
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.
Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.
Features and Benefits
- Bolt-on fitment on 2019+ Ram
- Ultra-high intensity with custom-engineered TIR optics
- Brilliant amber backlight color for additional accent
- Torture-tested heavy-duty construction
- Assembled in USA
- Bolt-on fitment on 2019-2024 Ram
Product Details
| Add-On: | N/A |
|---|---|
| Base Material: | Steel |
| Beam Angle: | Driving 20°x8° |
| Bolt Grade: | High |
| Bolt Thread Type: | Medium |
| Color Temp: | 3000K |
| Compliance Rating: | SAE J575 Durability Test |
| Description: | Bolt-on Pod Light kit for 2019-2024 Ram. |
| Drilling Required: | No |
| Housing Color: | Black |
| Housing Finish: | Powdercoat |
| Input Power (watts): | Main Beam: 40 Backlight: 3.07 |
| Intensity (lux): | 103 000 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Light Beam Pattern: | Combination |
| Measured Output (lumens): | 3 700 lm |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Operating Voltage: | 9-16V |
| Part Number: | dioDD7618 |
| Prop 65 Yes/No: | Yes |
| Sheen Level: | Matte |
| Universal Or Specific Fit: | Specific |
| Weather Resistant: | Yes |
| Wire Quantity: | 2 |
Part Type
Off-Road Light
Features
- Assembled in USA
- Bolt-on fitment on 2019-2024 Ram
- Bolt-on fitment on 2019+ Ram
- Brilliant amber backlight color for additional accent
- Torture-tested heavy-duty construction
- Ultra-high intensity with custom-engineered TIR optics
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD7618
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - UPC
- 00195995132093
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD7618 |
| SFX Item ID | 4187628 |
| Supplier Item Code | 4187628 |
| Manufacturer SKU | DD7618 |
| Manufacturer UPC | 195995132093 |
| Alternative References | DODDD7618, SS5, 2019-Present |
