Diode Dynamics Stage Series Ditch Light Bracket Kit for 2019-Present Ram
dioDD7594P
A$196.27

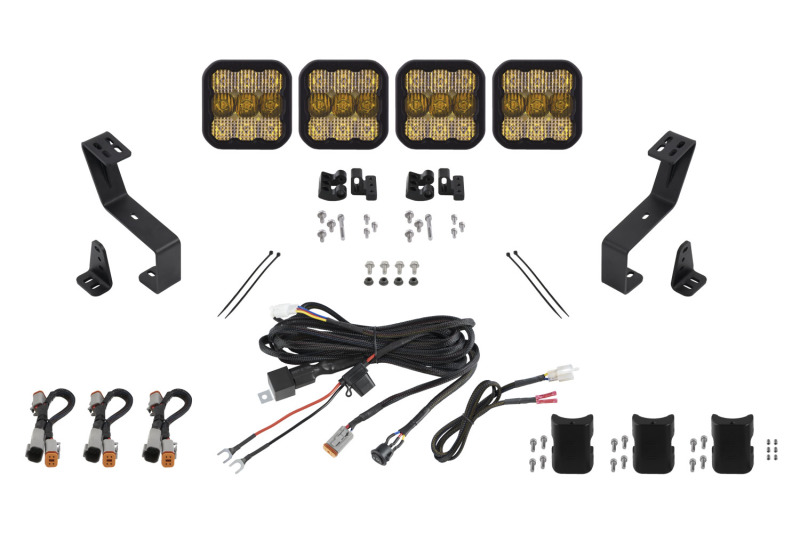

Diode Dynamics SS5 Grille CrossLink Lightbar Kit for 2019-Present Ram - Sport Yellow Combo
Diode Dynamics SS5 Grille CrossLink Lightbar Kit for 2019-Present Ram - Sport Yellow Combo
A$2,182.05
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
FeaturesBolt-on fitment compatible with Ram 1500 2019-2023.Allows you to mount a four-pod CrossLink lightbar across the grille.Ultra-high intensity with custom-engineered TIR optics.Selectable backlight color with eight color options.Torture-tested heavy-duty construction.Utilizes existing mounting points for easy installation.Assembled in USAOverviewPerfect Fitment. The Grille CrossLink Lightbar Kit compatible with Ram 1500 2019-2023 from Diode Dynamics allows you to mount four linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the bumper. No cutting or drilling required!Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent that you won't find on other LED pods. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic. NOTE: The Yellow kit is only available with an Amber backlight color.CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable for both straight and curved configurations.
Product Overview
Features
Bolt-on fitment compatible with Ram 1500 2019-2024.
Allows you to mount a four-pod CrossLink lightbar across the grille.
Ultra-high intensity, with custom-engineered TIR optics.
Selectable backlight color, with eight color options.
Torture-tested, heavy-duty construction.
Utilizes existing mounting points for easy installation.
Assembled in USA
Overview
Perfect Fitment. The Grille CrossLink Lightbar Kit compatible with Ram 1500 2019-2024 from Diode Dynamics allows you to mount four linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the bumper. No cutting or drilling required!
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.
Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent that you won't find on other LED pods. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic. NOTE: The Yellow kit is only available with an Amber backlight color.
CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity, but is fully adjustable, for both straight and curved configurations.
Features and Benefits
- Allows you to mount a four-pod CrossLink lightbar across the grille
- Ultra-high intensity with custom-engineered TIR optics
- Selectable backlight color with eight color options
- Torture-tested heavy-duty construction
- Assembled in USA
Product Details
| Add-On: | N/A |
|---|---|
| Base Color: | Black |
| Base Material: | Steel |
| Beam Angle: | Combo (Driving and Flood) |
| Bolt Thread Type: | Medium |
| Color Temp: | 3000K |
| Compliance Rating: | SAE J575 Durability Test |
| Description: | Bolt-on fitment on 2019-2024 Ram. |
| Drilling Required: | No |
| Input Power (watts): | Main Beam: 40 Backlight: 3.07 |
| Intensity (lux): | 71 200 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Measured Output (lumens): | 3 700 lm |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Operating Voltage: | 9-16V |
| Part Number: | dioDD7609 |
| Prop 65 Yes/No: | Yes |
| Sheen Level: | Flat |
| Universal Or Specific Fit: | Specific |
Part Type
Light Bar Mounting Kit
Features
- Allows you to mount a four-pod CrossLink lightbar across the grille
- Assembled in USA
- Selectable backlight color with eight color options
- Torture-tested heavy-duty construction
- Ultra-high intensity with custom-engineered TIR optics
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD7609
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - UPC
- 00195995132147
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD7609 |
| SFX Item ID | 4187637 |
| Supplier Item Code | 4187637 |
| Manufacturer SKU | DD7609 |
| Manufacturer UPC | 195995132147 |
| Alternative References | DODDD7609, SS5, 2019-Present |
