Diode Dynamics 21-22 Ford Bronco C2 Sport Stage Series Reverse Light Kit
Diode Dynamics 21-22 Ford Bronco C2 Sport Stage Series Reverse Light Kit
A$637.69
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description

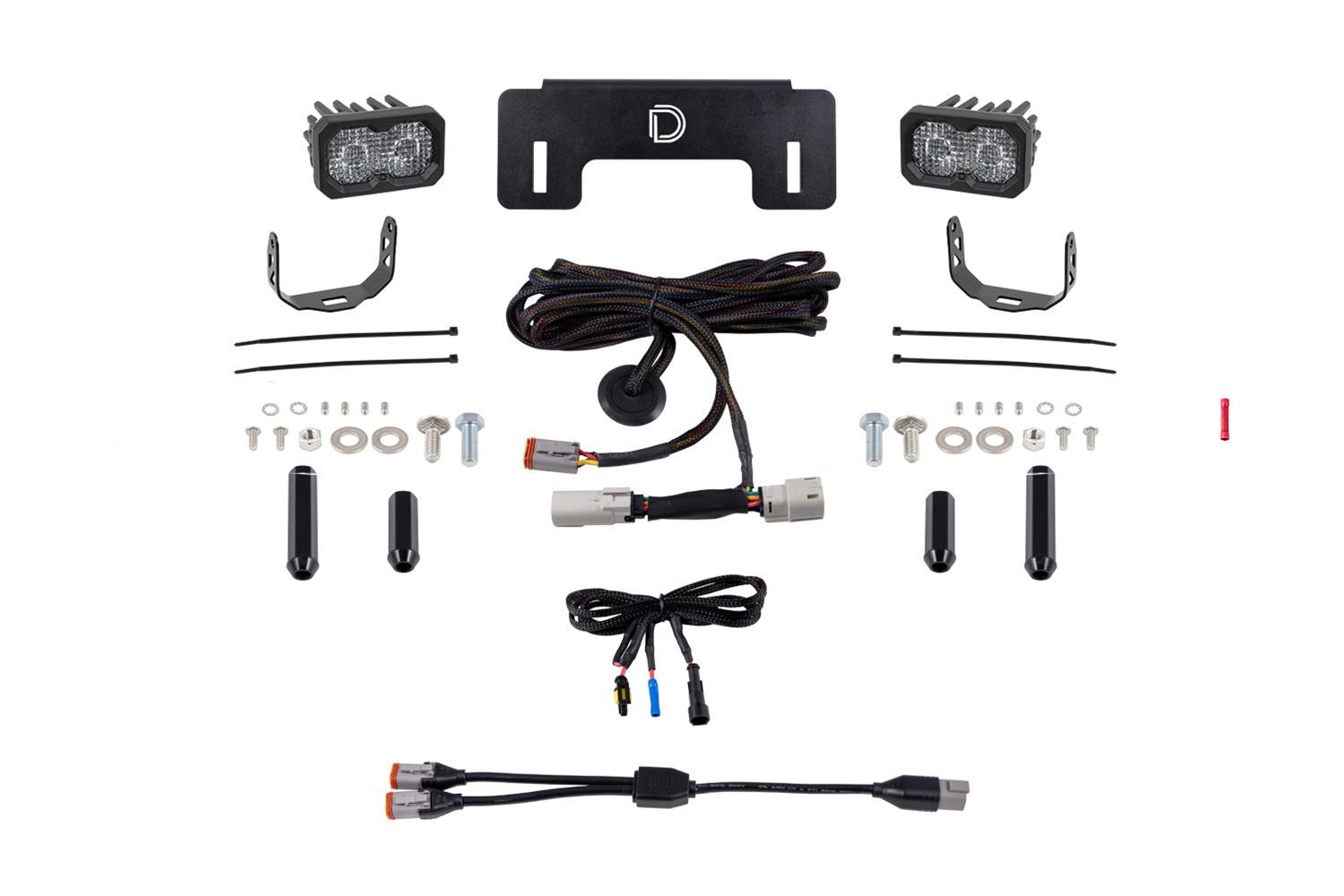

Overview. There's plenty of ways to add light behind your vehicle but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit includes an integrated red running light and plug-and-play wiring harness for trouble-free installation! Thanks to Stage Series TIR optic technology this kit provides a huge amount of extra reverse light. The included switch allows you to toggle it on any time or activate automatically with your reverse lights for a truly integrated solution.Plug and Play. Thanks to custom-molded OEM connectors this kit is completely plug-and-play. The included adapter harness plugs right into your factory tail lights for easy installation and operation. No cutting drilling or additional wiring needed! The kit operates as an additional red accent light with your tail lights and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.Backlight Functionality. The Stage Series LED pods included with this kit feature a distinctive backlight in a vibrant red color which functions as an additional accent light while driving! The backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.
Product Overview
Features
Direct fitment compatible with Ford Bronco 2021-2025.

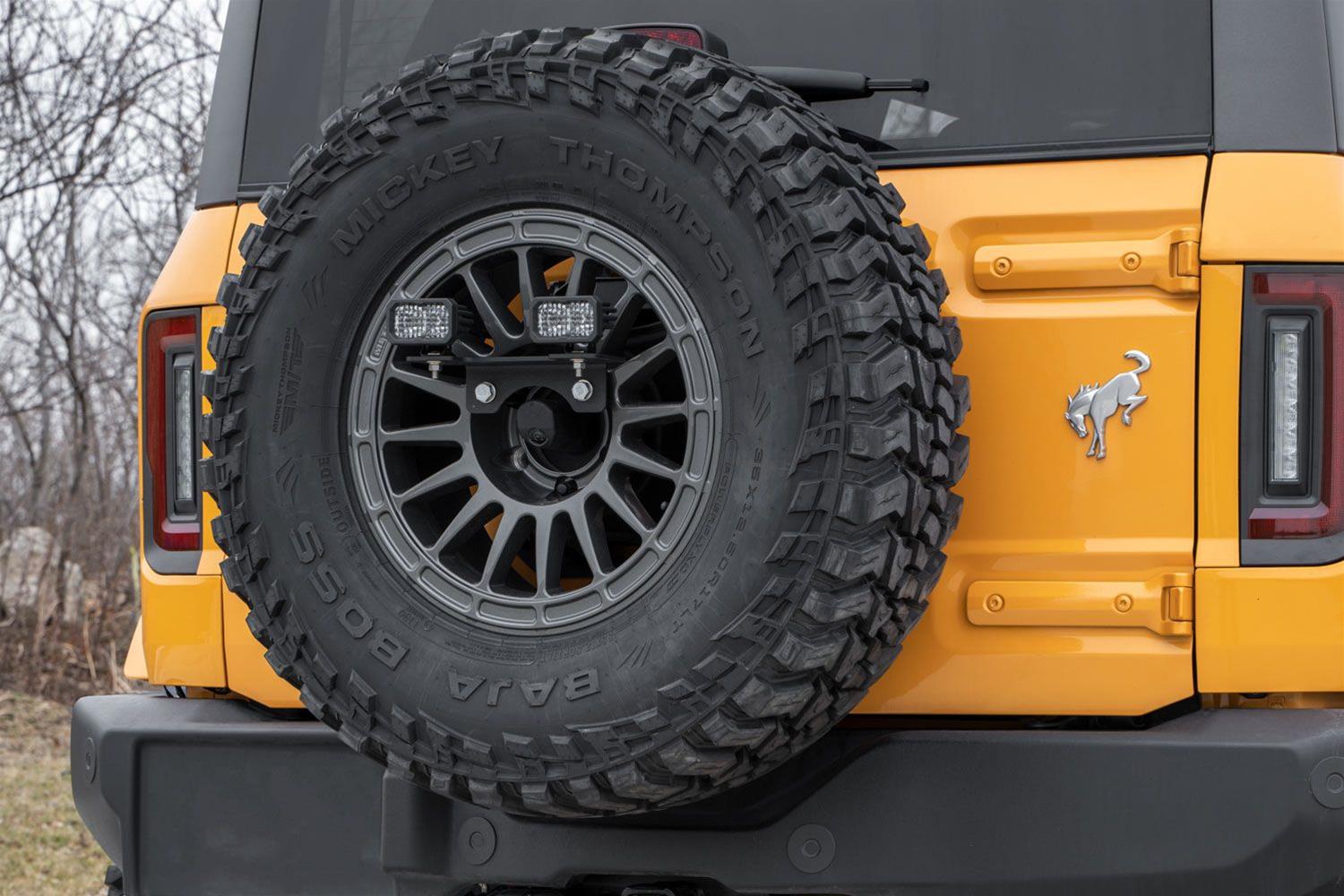

Allows you to mount SSC1, SSC2, or SS3 LED pods to the spare tire.
Custom-designed harness for simple wiring, with OEM connectors and aux switch override.
Provides high-power reverse light, and red accent light.
Bolts on to spare tire carrier using included 60mm or 90mm extension lugs.
Designed and assembled in USA.
Overview. There's plenty of ways to add light behind your vehicle, but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit includes an integrated red running light, and plug-and-play wiring harness, for trouble-free installation! Thanks to Stage Series TIR optic technology, this kit provides a huge amount of extra reverse light. The included switch allows you to toggle it on any time, or activate automatically with your reverse lights, for a truly integrated solution.
Plug and Play. Thanks to custom-molded OEM connectors, this kit is completely plug-and-play. The included adapter harness plugs right into your factory tail lights for easy installation and operation. No cutting, drilling, or additional wiring needed! The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.
Backlight Functionality. The Stage Series LED pods included with this kit feature a distinctive backlight in a vibrant red color which functions as an additional accent light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
Features and Benefits
- Allows you to mount SSC1 SSC2 or SS3 pods to the spare tire on the 2021-2023 Ford Bronco
- Plug-and-play wiring harness with OEM connectors and toggle switch override
- Provides high-power reverse light and red accent light
- Made in USA
- Allows you to mount SSC1 SSC2 or SS3 pods to the spare tire on the 2021-2025 Ford Bronco
Product Details
| Add-On: | N/A |
|---|---|
| Beam Angle: | Flood 80°x50° |
| Bulb Quantity: | 0 |
| Bulbs Included: | No |
| Color Temp: | 6000K |
| Compliance Rating: | SAE J575 Durability Test |
| DOT Approved: | No |
| Description: | Direct fitment compatible with Ford Bronco 2021-2025. |
| Housing Material: | Steel |
| Input Power (watts): | Main Beam: 7.7 Backlight: 0.7 |
| Intensity (lux): | 375 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Lens Color: | Clear |
| Lens Material: | Polycarbonate |
| Lens Width: | 3 |
| Material: | Steel |
| Measured Output (lumens): | 871 lm |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Part Number: | dioDD7355 |
| Prop 65 Yes/No: | Yes |
| Street Legal: | Yes |
| Universal Or Specific Fit: | Specific |
| Voltage: | 9-16V |
| Wattage: | 7.7 |
| Wiring Harness Included: | Yes |
Part Type
Back Up Light Assembly
Features
- Allows you to mount SSC1 SSC2 or SS3 pods to the spare tire on the 2021-2023 Ford Bronco
- Allows you to mount SSC1 SSC2 or SS3 pods to the spare tire on the 2021-2025 Ford Bronco
- Made in USA
- Plug-and-play wiring harness with OEM connectors and toggle switch override
- Provides high-power reverse light and red accent light
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD7355
- Product Attributes - Part Type
- Taillight Assemblies
- Product Attributes - UPC
- 00195995128997
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD7355 |
| SFX Item ID | 4187532 |
| Supplier Item Code | 4187532 |
| Manufacturer SKU | DD7355 |
| Manufacturer UPC | 195995128997 |
| Alternative References | DODDD7355 |
