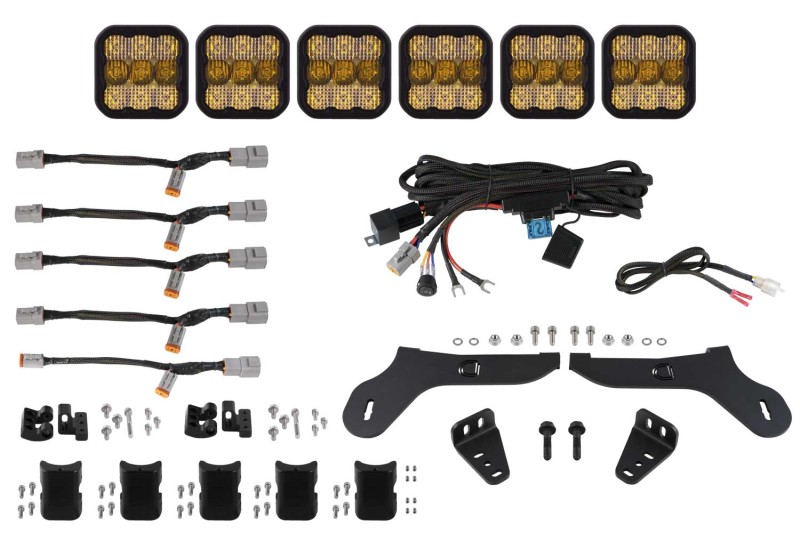

Diode Dynamics 17-20 Ford Raptor SS5 Grille CrossLink Lightbar Kit - Yellow Pro Combo
Diode Dynamics 17-20 Ford Raptor SS5 Grille CrossLink Lightbar Kit - Yellow Pro Combo
A$4,205.65
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
OverviewPerfect Fitment. The Grille CrossLink Lightbar Kit compatible with Ford Raptor 2017-2020 from Diode Dynamics allows you to mount a six-pod CrossLink lightbar on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the grille. No cutting or drilling required!Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you(TM) re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable. This kit was designed for a curved configuration.
Product Overview
Features
Bolt-on fitment compatible with 2017-2020 Ford Raptor.
Ultra-high intensity, custom-engineered TIR optics.
Selectable backlight color, with eight color options.
Torture-tested, heavy-duty construction.
Control through factory aux switch bank using the included harness.
Utilizes existing mounting points for easy installation.
Overview
Perfect Fitment. The Grille CrossLink Lightbar Kit compatible with Ford Raptor 2017-2020 from Diode Dynamics allows you to mount a six-pod CrossLink lightbar on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the grille. No cutting or drilling required!
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.
Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.
CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity, but is fully adjustable. This kit was designed for a curved configuration.
Features and Benefits
- Mounts a six-pod Crosslink lightbar across the grille
- Ultra-high intensity custom-engineered TIR optics
- Selectable backlight color with eight color options
- Torture-tested heavy-duty construction
- Engineered and Manufactured in USA
Product Details
| Add-On: | N/A |
|---|---|
| Base Color: | Black |
| Base Material: | Steel |
| Beam Angle: | Combo (Driving and Flood) |
| Bolt Thread Type: | Medium |
| Color Temp: | 3000K |
| Compliance Rating: | SAE J575 Durability Test |
| Description: | Bolt-on fitment on 2017-2020 Ford Raptor. |
| Drilling Required: | No |
| Input Power (watts): | Main Beam: 90 Backlight: 3.07 |
| Intensity (lux): | 58 500 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Measured Output (lumens): | 7 900 lm |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Operating Voltage: | 9-16V |
| Part Number: | dioDD7338 |
| Prop 65 Yes/No: | Yes |
| Sheen Level: | Flat |
| Universal Or Specific Fit: | Specific |
Part Type
Light Bar Mounting Kit
Features
- Engineered and Manufactured in USA
- Mounts a six-pod Crosslink lightbar across the grille
- Selectable backlight color with eight color options
- Torture-tested heavy-duty construction
- Ultra-high intensity custom-engineered TIR optics
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD7338
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - UPC
- 00195995128904
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD7338 |
| SFX Item ID | 4187495 |
| Supplier Item Code | 4187495 |
| Manufacturer SKU | DD7338 |
| Manufacturer UPC | 195995128904 |
| Alternative References | DODDD7338, SS5 |
